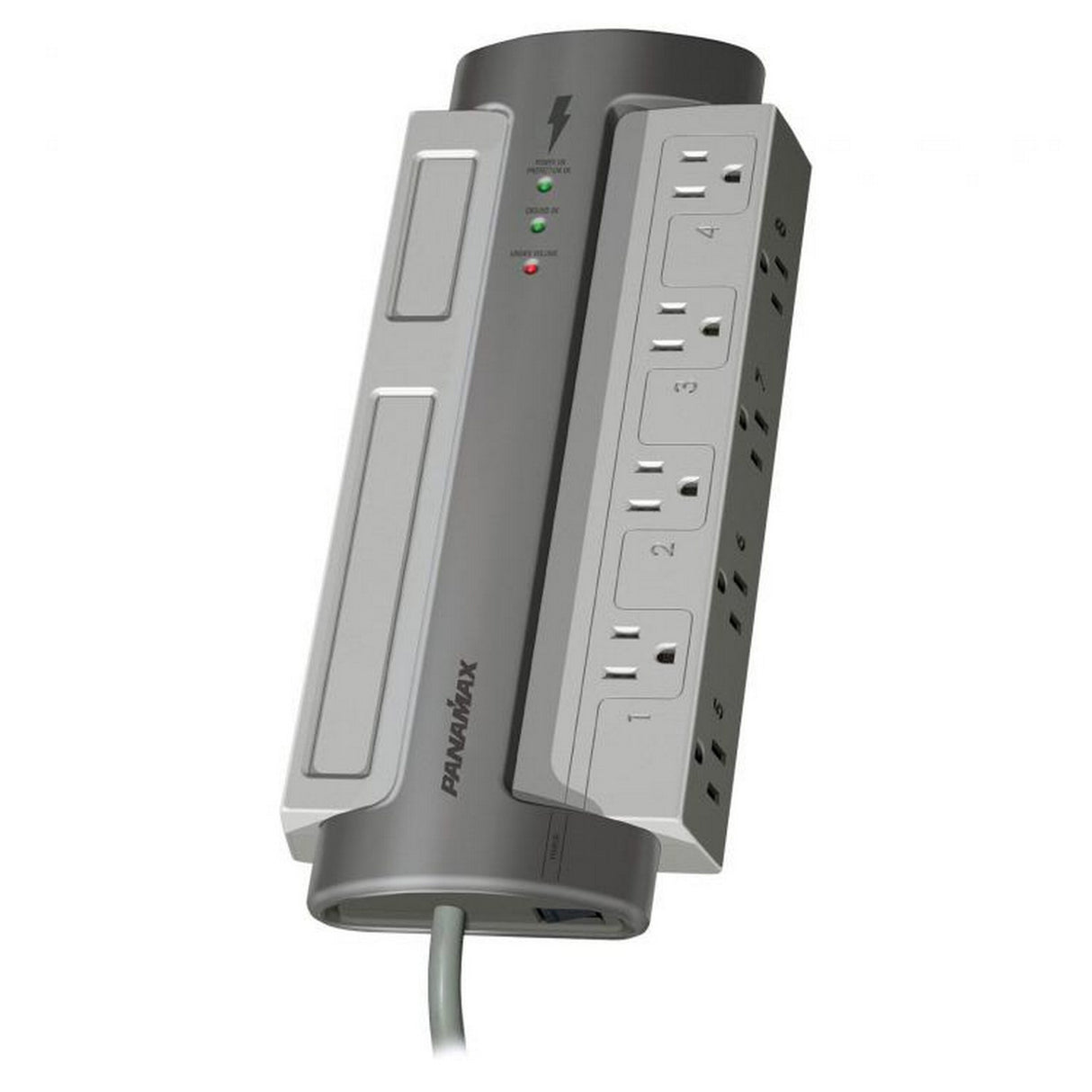

Panamax M8-EX AC Noise Filtration/Surge Protection
Description
Description
Panamax M8-EX AC Noise Filtration/Surge Protection
Provides clean and safe power for all home/office equipment
Key Features
- Eight AC Outlets with Transformer Spacing
- Accepts Add-on Signal Line Modules to Accomodate System Expansion
Technical Specifications
Family
Floor Models
Line Voltage
120 (Volts)
Number of Outlets
8
Outlet Descriptions
All 8 outlets filtered and surge protected
Control
On/Off control to all outlets through power switch.
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
8 ft. captive cord
Dimensions
12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight
3.5 lbs
AC Protection Technology
Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing
Undervoltage Shutoff
90 VAC +/- 6 VAC
Over-Voltage Shutoff
144 VAC +/- 8 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
RFI/EMI Filtration
Filtration Rating
50 dB @ 100 KHz - 1 MHz
Signal Line Protection
No
Length
13 (Inches)
Width
10 (Inches)
Height
2.2 (Inches)
Weight
2.9 (Lbs)
