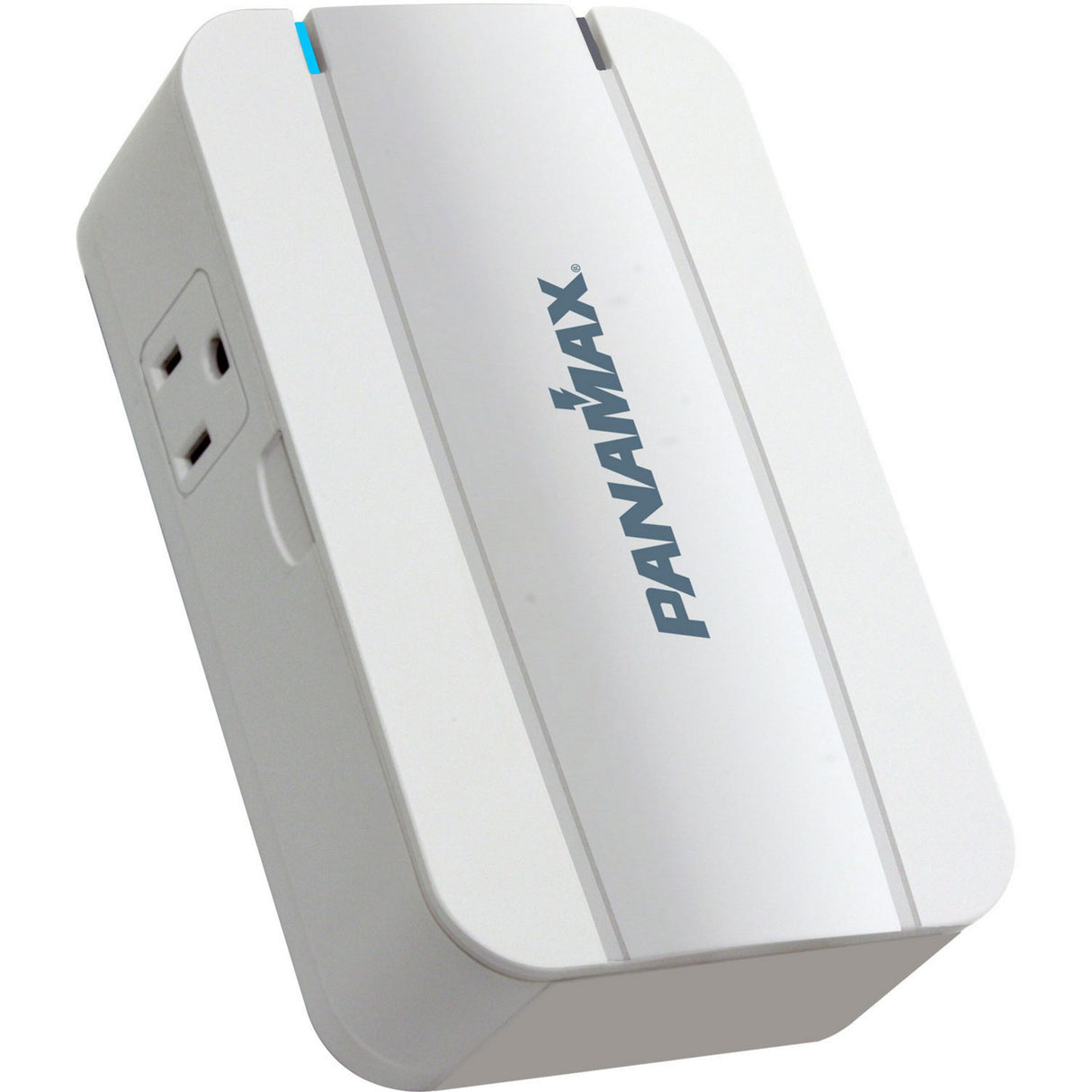

Panamax MD2 2 Outlet Direct Plug-In Surge Protector
Panamax MD2 2 Outlet Direct Plug-In Surge Protector
Panamax MD2 2 Outlet Direct Plug-In Surge Protector
Multi-Use AC Surge Protection and Power Filtration.
Key Features
- Exclusive Protect or Disconnect Circuitry
- Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects
- AC power to connected equipment.
- Noise Filtration Circuit
- Filtration removes noise and provides clean power
- $100,000 Limited Connected Equipment Protection Warranty
- Panamax will protect your equipment or we will repair or replace up to $100,000!
- Lifetime Product Warranty
- The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.
- EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
- Protect-or-Disconnect Circuitry
- Paintable cover ensures seamless fit with any decor.
- Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
- Thin Profile - Only 1.5 inches deep.
- Convenient display feature; turn cover around to hide diagnostic lights.
Technical Specifications
Family
Direct Plug Ins
Line Voltage
120 (Volts)
Number of Outlets
2
Outlet Descriptions
Both outlets filtered and surge protected
Compliance
C-UL (UL standard #1449)
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
N/A
Dimensions
3.25" W X 1.625" D X 5.25" H
Weight
0.65 lbs
AC Protection Technology
Protect or Disconnect
L-N, L-G, N-G Protection Modes
Undervoltage Shutoff
N/A
Over-Voltage Shutoff
N/A
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
RFI/EMI Filtration
Filtration Rating
50 dB @ 100 kHz - 1 MHz
Signal Line Protection
No
Length
4.7 (Inches)
Width
2.8 (Inches)
Height
5.9 (Inches)
Weight
1.04 (Lbs)
