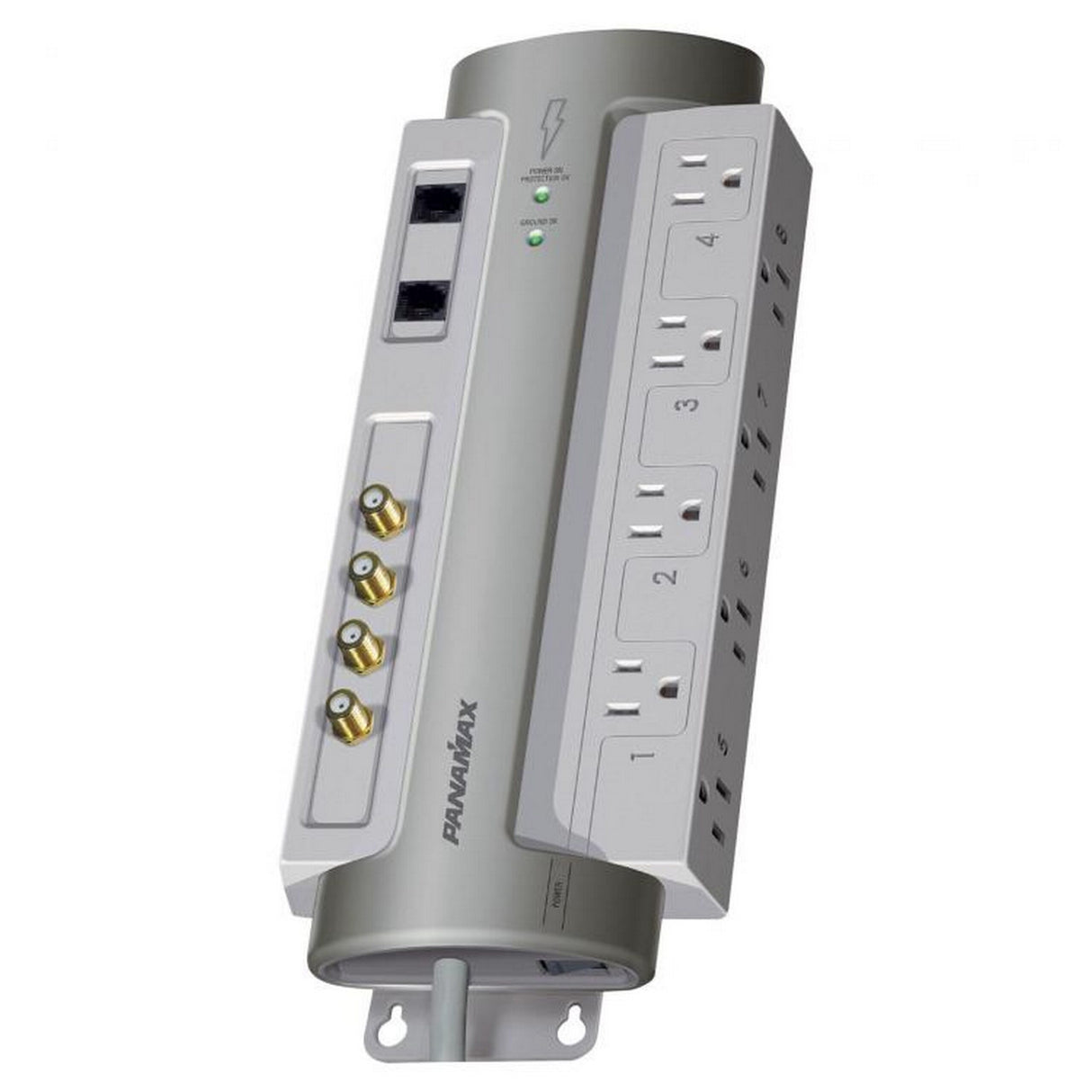

Panamax PM8-AV PowerMax 8 AV Surge Protector
Eliminates voltage irregularities & protects your AV system.
Improves Picture and Sound Quality
The PM8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Surge Protection
Exclusive Protect or Disconnect circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
Safety
Engineered and built to meet the latest UL Safety requirements (UL 1449 3rd Edition)
Key Features
- Cable/Sat Protection
- Protects equipment from electrical surges that travel over cable, satellite, and antenna lines.
- Telephone Line Protection
- Protects equipment from electrical surges that travel over telephone lines.
- 8 Outlets
- Eight (8) filtered and surge protected outlets.
- Surge Protection
- Exclusive Protect or Disconnect circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
- Hi Def Ready
- Hi-Def Designed to work with your High Definition system.
Technical Specifications
Family
Floor Models
Line Voltage
120 (Volts)
Number of Outlets
8
Outlet Descriptions
All 8 outlets filtered and surge protected
Control
On/Off control to all outlets through power switch.
Compliance
UL 1449 3rd Edition, 3000A
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
6 ft. captive cord
Dimensions
12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight
3.5 lbs
AC Protection Technology
Protect or Disconnect
L-N, L-G, N-G Protection Modes
Thermal Fusing
Undervoltage Shutoff
N/A
Over-Voltage Shutoff
N/A
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
RFI/EMI Filtration
Filtration Rating
45dB @ 100kHz - 1 MHz
Signal Line Protection
1 Tel
2 Cable/Satellite
Length
14 (Inches)
Width
9.2 (Inches)
Height
2.4 (Inches)
Weight
2.6 (Lbs)
