Panamax SEP-200 Service Entrance Protection
Description
Description

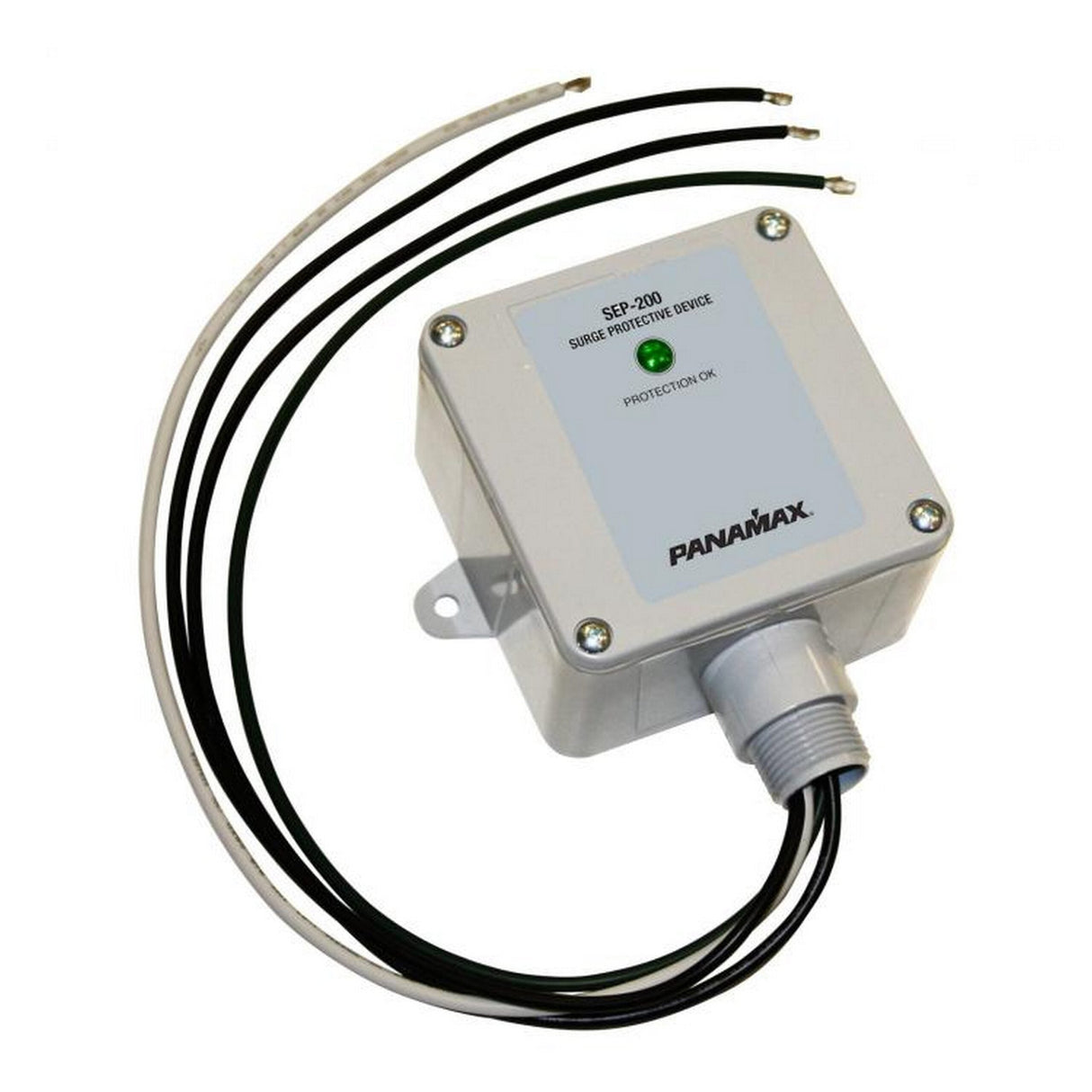

Panamax SEP-200 Service Entrance Protection
Protects against electrical surges that can cause damage to major appliances including their sensitive electronic circuitry.
SEP-200 protects against electrical surges that can cause damage to major appliances including their sensitive electronic circuitry.
Catastrophic failures and gradual component degradation can be caused by high voltage surges, which are generated by harsh weather conditions, external power problems, or day-to-day electrical component switching.
Panamax also recommends using secondary plug-in protectors at the equipment you would like to protect.
Key Features
- Rated for splIt'single phase panels up to 400 Amps.
- Three (3) Wires Plus Ground.
- Meets ANSI C62.41 Requirements.
- 700V L-N / 800V N-G Voltage Protection Rating, UL 1449 3rd Edition
- Install Indoors or Outside.
- 3-Year $10,000 Appliance Warranty.
- 5-Year Product Warranty.
Technical Specifications
Family
Service Entry Protection
Number of Outlets
0
Compliance
ANSI C62.41
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
3 wires plus ground stranded bare ends 19"
Dimensions
5.5" W X 5.5" L x 2.5" H
Weight
1.25 lbs
Undervoltage Shutoff
N/A
Over-Voltage Shutoff
N/A
Filtration Technology
N/A
Signal Line Protection
No
Length
8 (Inches)
Width
6.3 (Inches)
Height
4.3 (Inches)
Weight
1.55 (Lbs)
