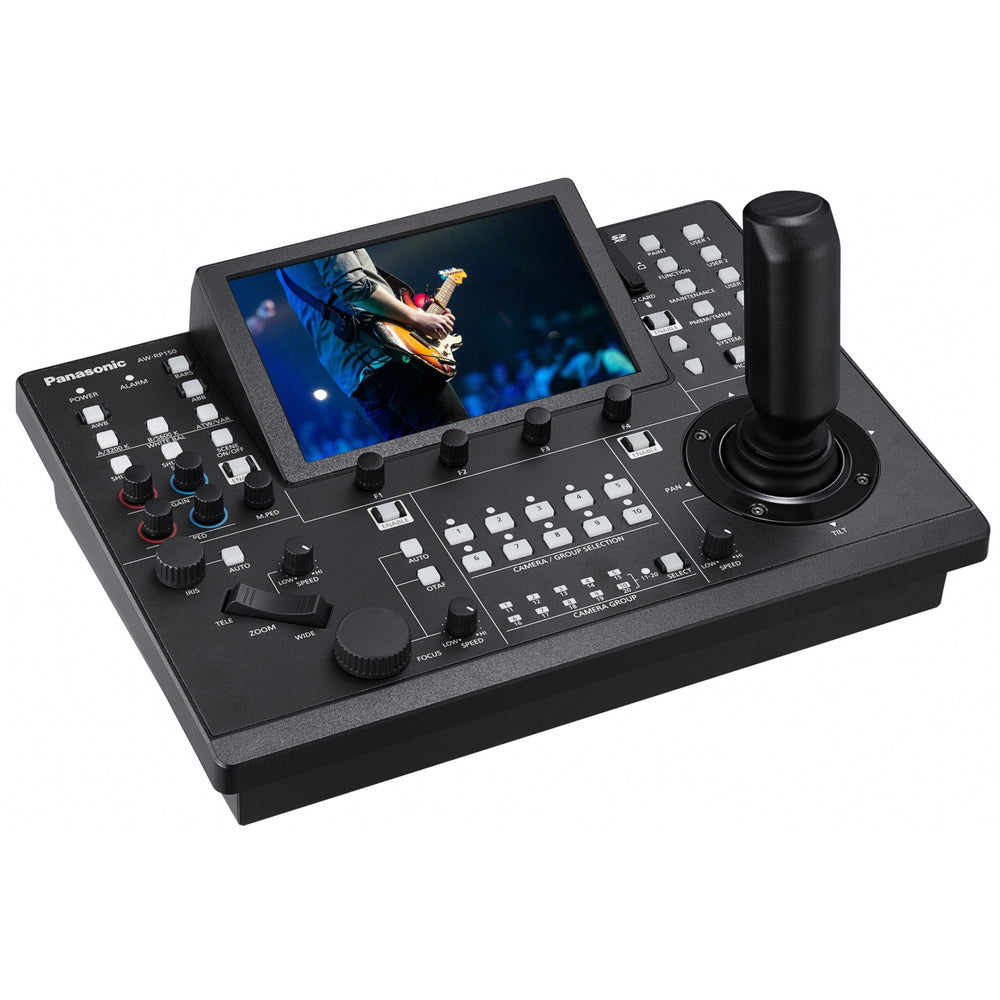

Panasonic AW-RP150GJ5 Touchscreen Remote Camera Controller
The AW-RP150 will be the newest remote camera controller to compliment Panasonic's comprehensive professional PTZ camera lineup. It has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting.
Key Features
- Large touchscreen for easy usability
- New joystick for one-handed operation
- Simplified PTZ camera presets and tracing memory
- Intuitive design elements based on direct feedback from everyday robotic camera operators
- 3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs
Technical Specifications
Power Requirements
12 V DC (10.8 V to 13.2 V)
Current consumption
1.0 A (Connector Input)
0.6 A (PoE+ power supply)
Ambient Operating Temperature
0 C to 40 C (32 F to 104 F)
Ambient Operating Humidity
20% to 90% (no condensation)
Storage Temperature
-20 C to 50 C (-4 F to 122 F)
Weight
Approx. 3.2 kg (7.05 lb)
Dimensions (W x H x D) (mm)
342 mm x 178 mm x 245 mm(excluding protrusions)
Dimensions (W x H x D) (inch)
13-15/32 inches x 7 inches x 9-21/32 inches(excluding protrusions)
Controller Supported Equipment
IP/RS422
AW-UE150W/K, AW-HR140*1, AW-HE130W/K*1, AW-HN130W/K*1, AW-UE70W/K*1, AW-UN70W/K*1, AW-HE40 Series*1, AW-HN40HW/HK*1, AW-HE38HW/HK*1, AW-HN38HW/HK*1
