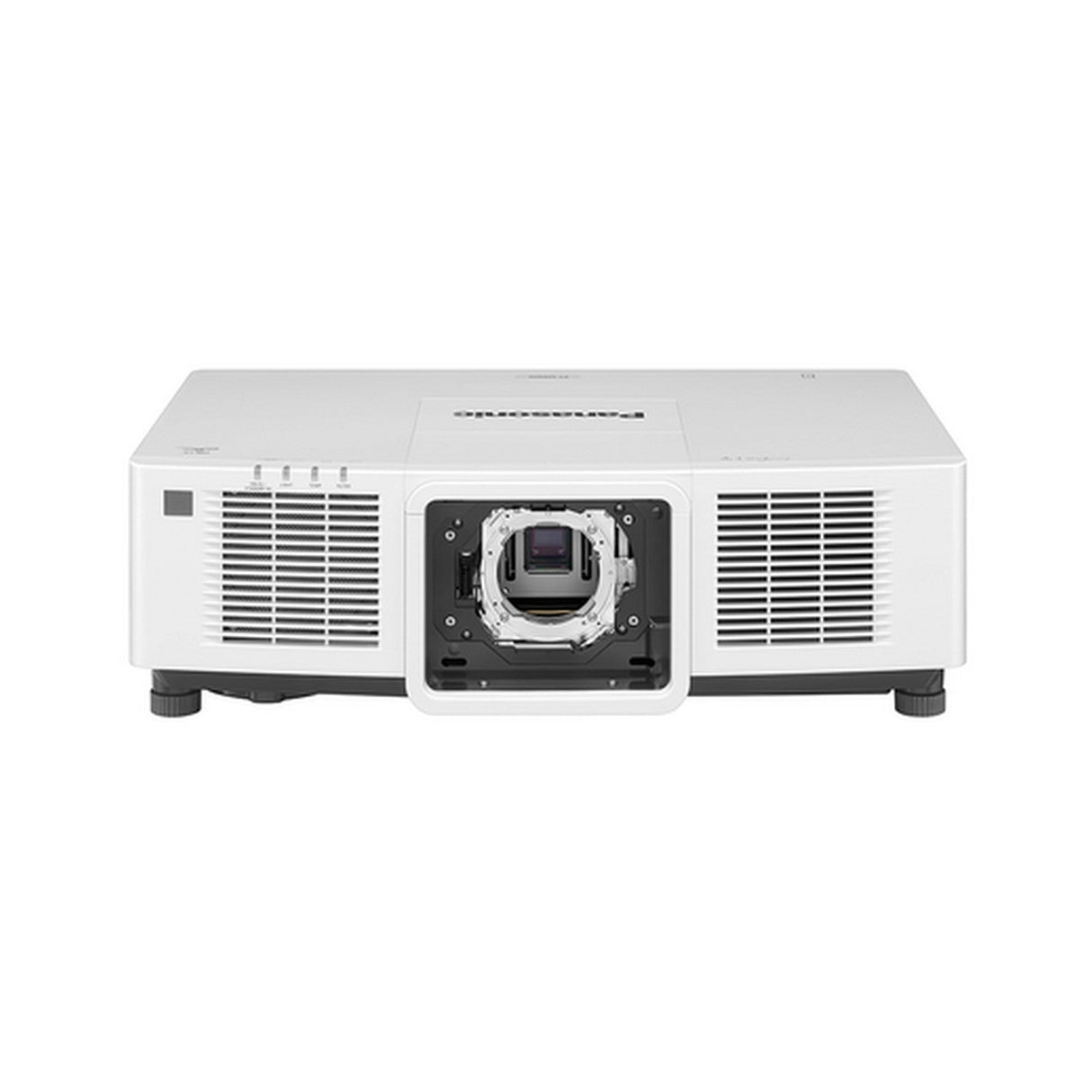

Panasonic PT-MZ14KLWU7 14000 Lumen LCD WUXGA Projector, White

The PT-MZ14KL is a 14,000lm-class projector delivering full brightness on AC 100-240 V power, eliminating the need for high-voltage power supply installation. The MZ series also supports the Near Field Communications (NFC) function, allowing you to quickly set up the projector’s settings without even powering it up. There is a full suite of optional lenses, including the ET-EMU100 Ultra-Short-Throw Zoom Lens for large-screen projection in tight spaces and pre-activated Geometry Pro upgrade kits, expanding the projectors’ built-in functions and enabling adjustments from a PC for flexible installation.

Key Features

• Small, Light, and Quiet 14,000lm LCD Projector
• Long-Life Energy-Saving Design Minimizes Problems
• Projection Method: Front
• Number of Lamps: 1
• Lamp Type: Laser
• Standard Mode Brightness: 14000 lm
• USB: Yes

Technical Specifications

Dimensions (W x H x D)
Approx. 650 x 185 x 440 mm (25 19/32” x 7 9/32” x 17 5/16”) (excluding feet and protrusions),
650 x 211 x 440 mm (25 19/32” x 8 5/16” x 17 5/16”) (excluding protrusions, feet at shortest position)
LENS
Optional (no lens included with this model)
Resolution
WUXGA (1920 x 1200 pixels)
Operating environment
Operating temperature: 0-45 Degrees C (32-113 Degrees F) , operating humidity: 10-80 % (no condensation)
Keystone correction range
Vertical: ±45 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300, ±15 ° with ET-EMW400/ET-EMW500). When and are used simultaneously, correction cannot be made exceeding a total of 55 °.
Screen Size (Diagonal)
2.03-15.24 m (80-600 in), 2.54-10.16 m (100-400 in) with ET-EMU100,2.03-12.70 m (80-500 in) with ET-EMT8004, 16:10 aspect ratio
Applicable software
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Projector Network Setup Software, Smart Projector Control for iOS/Android
Contrast Ratio
3,000,000:1 (Full On/Full Off) (When is set to and set to <3>.)
Note
Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. When is set to . This is the value when the Zoom Lens (Model No.: ET-EMS650) is used. The value varies depending on the lens. Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, set to <3>, under conditions with 30 Degrees C (86 Degrees F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output decreases to 50 % will vary depending on environment. *4 ET-EMT800 is compatible with PT-MZ17KL/MZ14KL/MZ11KL only. It cannot be used with PT-MZ20KL. *5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. 4K/60p and 4K/50p signals input via DIGITAL LINK are supported in YPBPR 4:2:0 format only. *6 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 Degrees C (77 Degrees F) operating temperature at an altitude of 700 m (2,297 ft). Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment. Filter can be washed and reused up to two times. Average value. May differ depending on the actual unit. *9 Note that the projector cannot be used at altitudes 2,700 m (8,858 ft) or higher above sea level. In the following operating environments, light output may be reduced to protect the projector: when the projector is used at altitudes below 1,400 m (4,593 ft) and ambient temperature is 35 Degrees C (95 Degrees F) or higher; when the projector is used at altitudes between 1,400 m (4,593 ft) and 2,700 m (8,858 ft) exclusive and ambient temperature is 30 Degrees C (86 Degrees F) or higher. The operating environment temperature should be between 0 Degrees C (32 Degrees F) and 40 Degrees C (104 Degrees F) when the optional AJ-WM50 Series Wireless Module is attached.
Power supply
AC 100-240 V, 50/60 Hz
Light source
Laser diode
Terminals | LAN
RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink , Art-Net)
Terminals | DC OUT
USB connector (Type A) x 1 for power supply (Output: 5 V / 2 A)
LCD panel | Panel size
25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
LCD panel | Drive method
Active-matrix method
Terminals | SDI IN
BNC x 1: 3G/HD-SDI input
Terminals | HDMI IN
HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input5), CEC supported
Terminals | DIGITAL LINK
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink , Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input)
Terminals | REMOTE 2 IN
M3 x 1 for wired remote control
Terminals | SERIAL/MULTI PROJECTOR SYNC IN
D-sub-9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | SERIAL/MULTI PROJECTOR SYNC OUT
D-sub-9-pin (male) x 1 for link control (RS-232C compliant)
Weight
Approx. 22.5 kg (49.6 lbs)
Terminals | REMOTE 1
D-sub-9-pin (female) x 1 for external control (parallel)
Filter
Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise
35 dB (NORMAL), 30 dB (QUIET)
Projector type
LCD projector
Lens shift | Vertical (from center of screen)
±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Lens shift | Horizontal (from center of screen)
±20 % (±19 % with ET-EMW200) (powered)
Center-to-corner zone ratio
85 %
Time until light output declines to 50 %
20,000 hours (NORMAL/QUIET)
Terminals | Remote 2 Out
M3 x 1 for link control (for wired remote control)
Light Output
14,000 lm
LCD Panel | Display System
Transparent LCD panel (x 3, R/G/B)
LCD panel | Pixels
2,304,000 (1920 x 1200 pixels)
Terminals | USB
USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory
Power consumption | Maximum power consumption
800 W (8.1-3.3 A) (810 VA)
Power consumption | On-mode power consumption (Light power)
720 W (AC 100-120 V),690 W (AC 200-240 V)
Power consumption | On-mode power consumption (Light power)
460 W (AC 100-120 V),445 W (AC 200-240 V)
