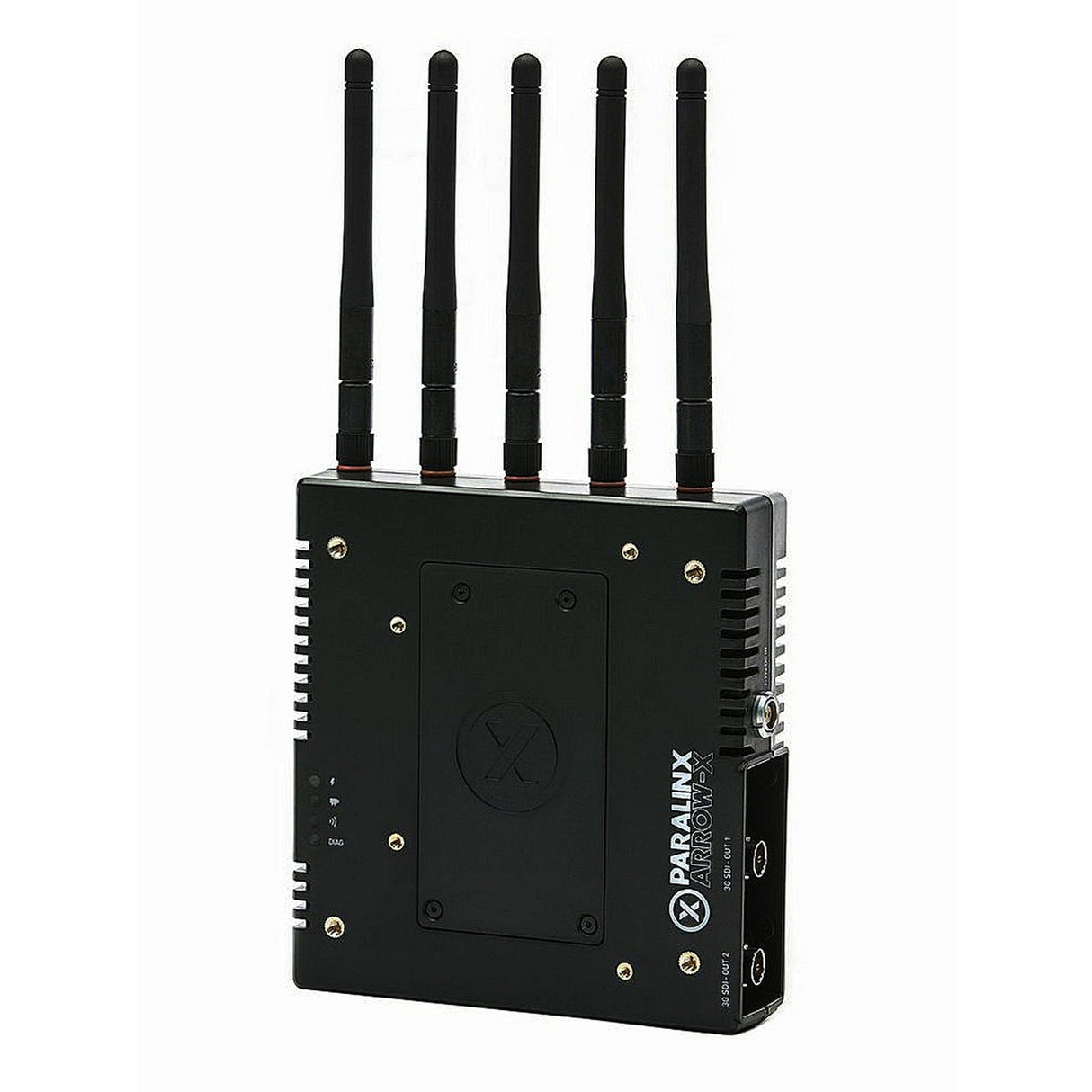

Paralinx ARROWXREC Arrow-X Receiver HD Video Transmission System
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Paralinx ARROWXREC Arrow-X Receiver HD Video Transmission System
The Paralinx Arrow-X System is a revolutionary HD Video Transmission system offering Realtime Wireless HD with robust long range for your Television, Film, Broadcast, Industrial or UAV/UAS application. The Paralinx Arrow-X transmits full-HD 1080p/60 with a range of up to 700 feet (215m) with default antennas (longer range possible with optional antennas) and still maintains an incredible sub 1ms latency glass-to-glass. The Arrow-X receiver features 2-Pin Lemo power connectors capable of a wide 7-17V unregulated input voltage and dual 3G-SDI video outputs.
Much like the popular Paralinx Tomahawk, the Arrow-X transmits Full-HD video (up to 1080p/60 4:2:2) with less than 1 millisecond delay and is capable of handling up to 4 simultaneous receivers. The receiver weighs 12 oz/340g (without antennas). Arrow-X receivers can be purchased for MSRP US$2,499.95 each. Battery plate, antenna, mounting, power cable, and case options are available as accessories.
Key Features
- Lightweight Minimalist design for reduced payload
- Dual 3G-SDI outputs
- Rugged ABS enclosure
- Long-range transmission - Up to 700 feet (215 meters)
- REAL-TIME viewing - Less than 1 millisecond latency
- Uncompressed full-HD video signal allow critically accurate monitoring
- Multicast capable (up to 4 receivers per transmitter)
- 128 bit AES Encryption - Secure transmission
- Operates on 5gHz frequency band
- Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications
Technical Specifications
Dimensions (US): 5" x 5.6" x 1.3" (not including antennas)
Dimensions (EU): 143mm x 128mm x 33mm
Weight: 12oz / 340g (without antennas)
In the box:
1 Arrow-X receiver w/stock antennas (dual-SDI outputs)
1 AC power adapter with 2-pin Lemo-type connector
1 mini-USB to USB cable (for firmware updates only)
