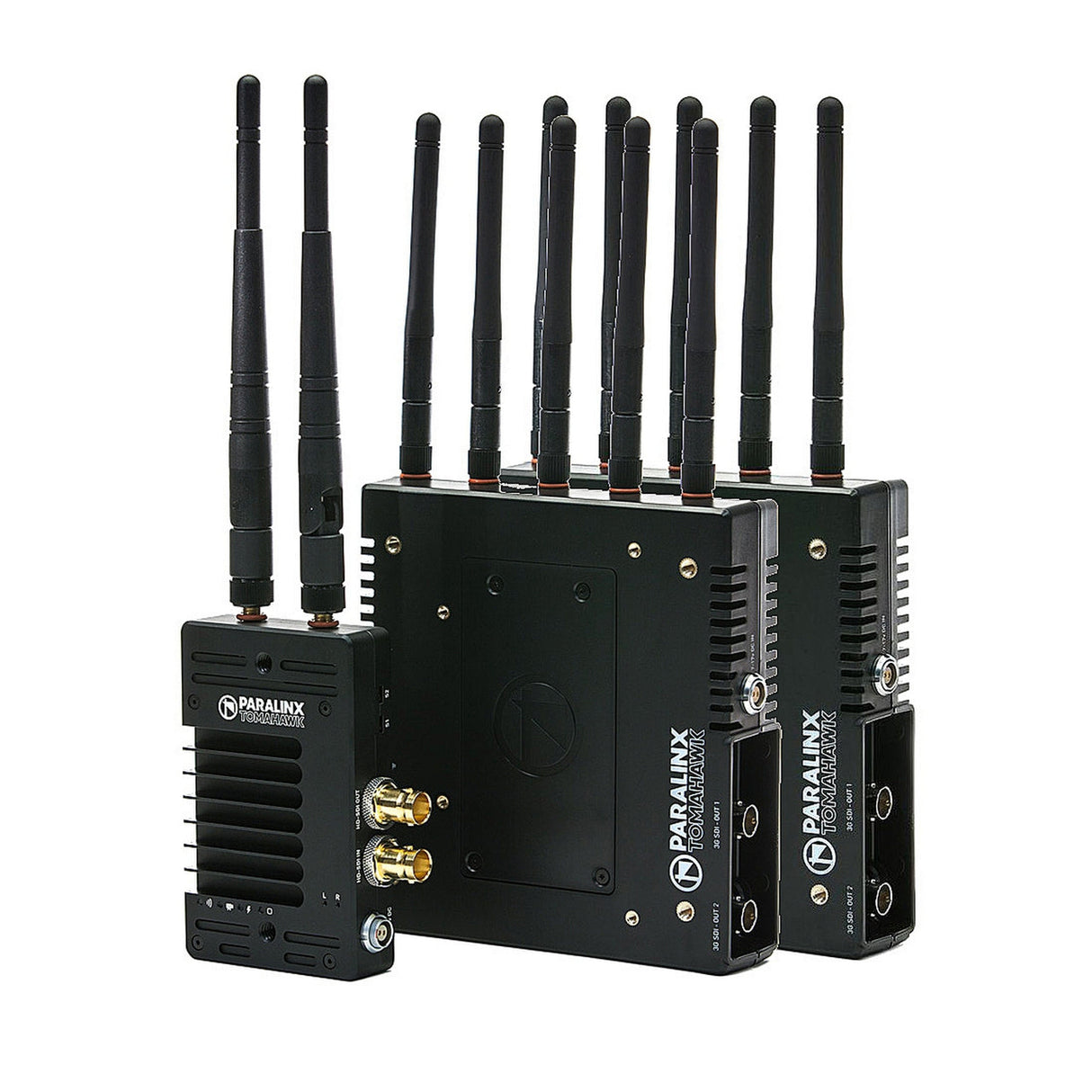

Paralinx THAWKSDI12 Tomahawk SDI 1 Transmitter 2 Receivers HD Wireless Video Transmission System
The Paralinx TOMAHAWK is a revolutionary HD Video Transmitter system offering Real Time Wireless HD with unprecedented range for your Television, Film, Broadcast, Industrial or UAV/UAS application. The Paralinx Tomahawk has a range of up to 2000 feet (600m) with default antennas (longer range possible with optional antennas) and still maintains an incredible sub 1ms latency glass-to-glass. Both the Transmitter and Receiver feature 2-Pin Lemo power connectors capable of a wide 7-17V unregulated input voltage. The Tomahawk SDI system features 3G-SDI input (with loop-out) on the transmitter and dual 3G-SDI outputs on the receiver.
Much like the popular Paralinx Arrow and Arrow Plus, the Tomahawk transmits Full HD video (up to 1080p/60 4:2:2) with less than 1 millisecond delay and is capable of handling up to 4 simultaneous receivers. The transmitter weighs approximately 6.6oz/187g (without antennas) and the receiver weighs 12 oz/340g (without antennas). The Paralinx Tomahawk SDI System is available at a base MSRP of US$7,499.95 for one transmitter and receiver pair. Additional receivers can be purchased for MSRP US$3,999.95 each. Battery plate, antenna, mounting, power cable, and case options are available as accessories.
Key Features
- Lightweight Minimalist design for Handheld, Steadicam, Gimbal, and UAV Payload
- Transmitter features 3G-SDI input and loop-out. Receiver features dual 3G-SDI outputs.
- Rugged machined-aluminum enclosure for the transmitter and ABS enclosure for receiver
- Ultra long-range transmission - Up to 2,000 feet (600 meters)
- REAL-TIME viewing - Less than 1 millisecond latency
- Uncompressed full-HD video signal allow critically accurate monitoring
- Multicast capable (up to 4 receivers per transmitter)
- 128 bit AES Encryption - Secure transmission
- Operates on 5gHz frequency band
- Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications
- Click here for supported frame rates
Technical Specifications
Dimensions (Tx): 4" x 2.5" x 0.8" (not including antennas)
Dimensions (Tx): 108mm x 67mm x 21mm
Weight (Tx): 6.6oz / 187g (without antennas)
Dimensions (Rx): 5" x 5.6" x 1.3" (not including antennas)
Dimensions (Rx): 143mm x 128mm x 33mm
Weight (Rx): 12oz / 340g (without antennas)
In the box:
1 Tomahawk SDI transmitter w/stock antennas
1 Tomahawk receiver w/stock antennas (dual-SDI outputs)
1 PTap to Lemo power cable (18in/45cm)
1 AC power adapter with 2-pin Lemo-type connector (per receiver)
18" BNC Cable (right-angle to right-angle)
1 mini-USB to USB cable (for firmware updates only)
