Whirlwind pcDI Dual Passive Direct Box
Whirlwind | SKU: WHR-ACC-PCDI
Whirlwind pcDI Dual Passive Direct Box
$20400
Free Shipping
Unit price
/
Unavailable

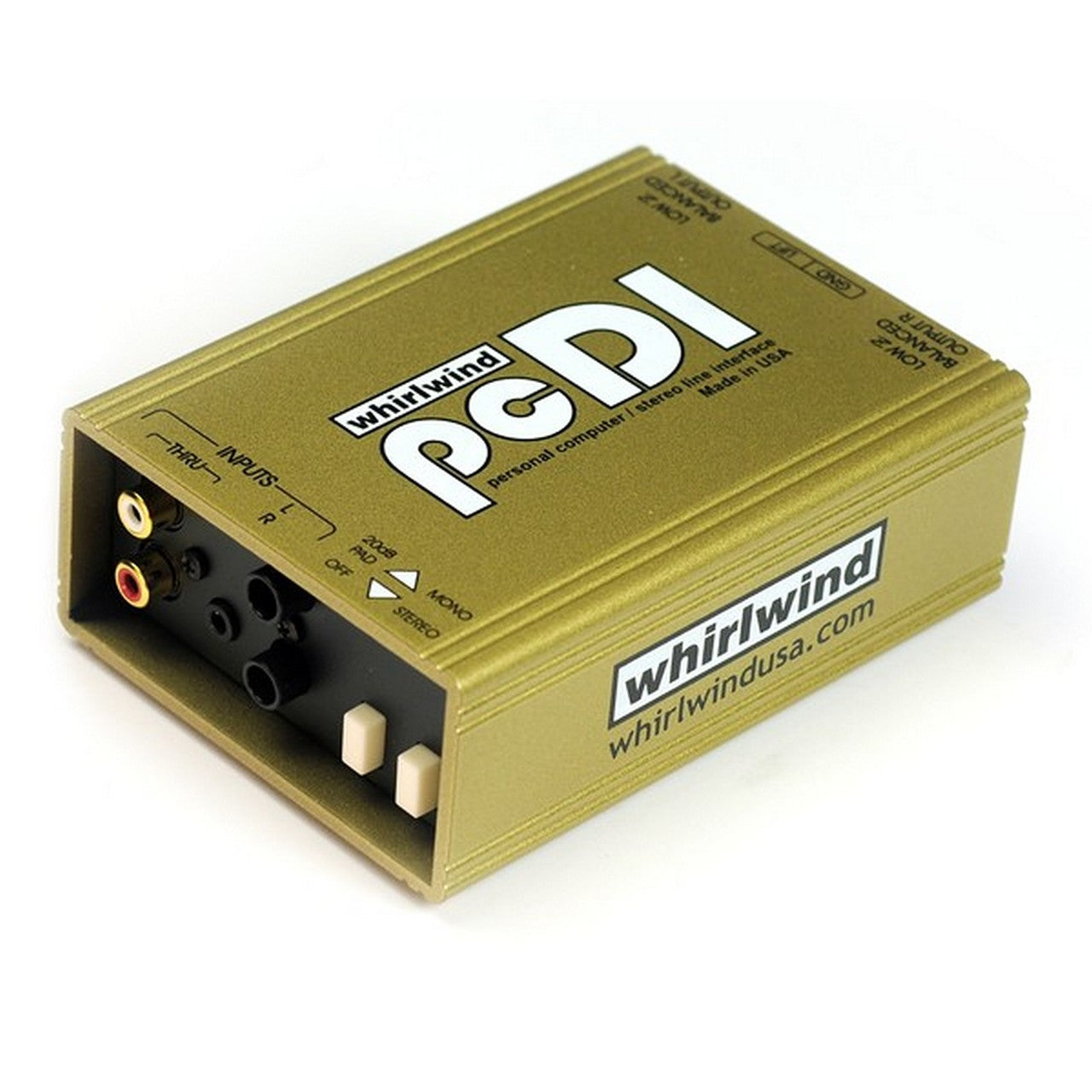

Whirlwind pcDI Dual Passive Direct Box
This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.
Key Features
- Color coded RCA phono in / through jacks
- 3.5 mm input jack
- 1/4" TS input jacks
- Color coded XLR output jacks
- Ground Lift switch to help eliminate hum and buzz
- Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
- 20dB pad switch for connection to "hot" input signals
- Uses Whirlwind's TRHL-M transformers with metal shield
- Impedance Ratio (input to output, per channel): 133:1
- Frequency Response: 20Hz-20kHz ±1dB
- Level Change (input to output): -20dB (pad out), -40dB (pad in)
