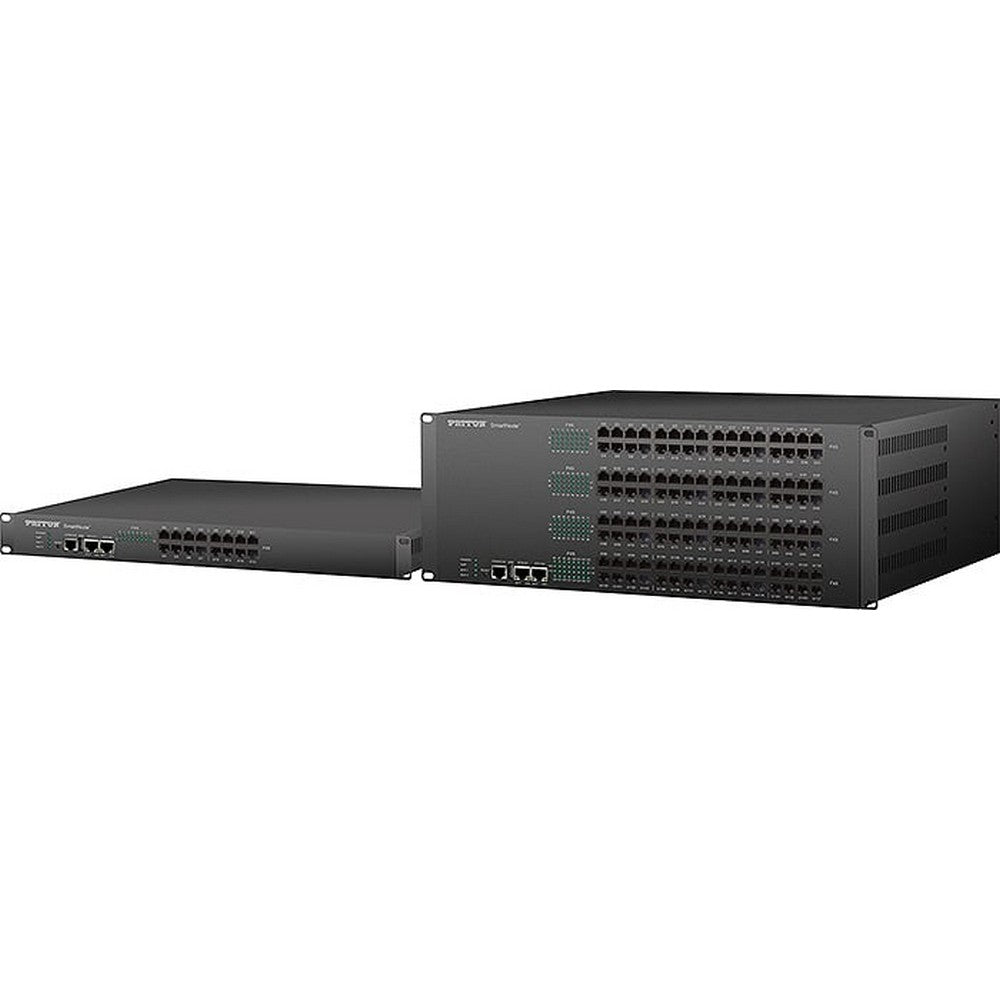

Patton SN4741/24JS24V/RJ11/EUI SmartNode VoIP Gateway

The SmartNode 4740 VoIP Gateway provides 16 to 128 analog FXS (FXO coming soon) interfaces to connect phones, fax or PSTN trunk lines to your All-IP based Unified Communication system such as SIP Trunks, IP PBXs, Hosted Solution, etc. Like every SmartNode, the SN4741/24JS24V/RJ11/EUI supports every industry-standard Codec to deliver toll-quality voice on every call. Using Patton Cloud's Call Quality Assessment and Monitoring functions, together with E-Mail or SMS notification, it ensures meeting Service Level Agreements at the customer premise with no effort. Which helps in preventing Call Quality related problems, and reduces time resolving them by utilizing the remote access functions of Patton Cloud. The advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support. The SmartNode survivability suite provides SIP Trunk and PSTN fallback to ensure business continuity in case the IP network fails. In addition, the SmartNode delivers a smooth transition to All-IP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider's number porting process.

Key Features

• Up to 128 FXS - 16, 24, 32, 48, 64, 72, 96, and 128 Analog ports. Long Reach FXS--10 km @ 3REN load. MWI, Caller-ID and AOC support. FXO is coming soon!
• Message Waiting - Message Waiting Subscription & Notify, MWI - Line reversal, high voltage and FSK support.
• Full VoIP protocol support - SIPv2, SIPv2 over TLS**, SIPv2 over IPv6, RTP security with SRTP**, T.38, fax and modem bypass, DTMF relay.
• Easy Management & Provisioning - Patton Cloud orchestrated, HTTPS zero-touch provisioning (Mutual Authentication), SNMP, command line interface and TR-069 for automated mass provisioning for efficient deployments.
• Call Quality Assessment & Monitoring - Powered by Patton Cloud; Call Quality monitoring ensures SLA is being met at the customer premise. CDR logging includes quality information, duration, Codec, etc. Accessible by Web and API (OSS/BSS integration). eSBC
• Upgrade Option - Simply by purchasing a software license, the SmartNode becomes a full blown eSBC. This capability prepares your voice network for next-generation SIP services and security.

Technical Specifications

Capacity
Up to 128 simultaneous low bandwidth voice or HD calls with SRTP or T.38 fax calls
SIP Signaling
SIPv2 over UDP/TCP or TLS**
SIP call transfer, redirect
Overlap dialing, PRACK, P-Header support
Multi instance, simultaneous support of multiple registrars and direct IP dialing)
DTMF in-band & out-of-band
B2BUA--eSBC capable**
Voice Processing
G.722
G.711m/A-law
G.723.1 (6.4 kbps)
G.729, 729a, 729ab (8 kbps)
G.726 (16, 24, 32, 40 Kbps)
AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2 kbps)
Fax relay T.38, bypass G.711
iLBC at 13.33 kbps (SIP-SIP only)
G.168-2004 echo cancellation (128 ms)
Up to 128 simultaneous low-bandwidth voice or T.38 fax calls
Up to 128 HD calls with SRTP
Silence suppression and comfort noise
Adaptive and configurable dejitter buffer
Configurable RTP packet length
Call Switching & Services
3 way and N way conferencing
Regular expression based call routing and number manipulation
Number blocking
Short-dialing
Digit collection, distribution and hunt groups
Transparent line extension
Fallback Routing: Soft fallback to alternative route(s)
FXS Connectivity
2-wire Loopstart on RJ-11/12 or RJ21 (Telco 50-pin)
MWI - high voltage, line reversal and FSK method
Localization--All tones programmable (dial, ringing, busy)
EuroPOTS (ETSI EG201188)
Programmable AC impedance, feeding, ring and onhook voltage
Peak Ring voltage
87.7Vpk
Ring voltage
62Vrms
Current Feed ILA
26mA
Talk Battery Voltage
-20V
On-Hook voltage VOC: 51V
Caller-ID FSK and ITU V.23/Bell 202 generation
Long Reach FXS--10 km @ 3REN load
Secondary Surge Protection*
FXO Connectivity
2-wire Loopstart--RJ11/12 connector or RJ21 (Telco 50-pin)
Programmable impedance
Ring detection, tone detection
Caller ID detection (FXS, DTMF)
Connect & Disconnect supervision
Connectivity
Two 10/100/1000Base-T Ethernet ports
USB port
Auto-MDIX
DHCP Client and Server
PPPoE Client (multi-session)
IP Multi-Netting, VLAN, Secondary IP
IPv4 and IPv6--Dual Stack
ICMP
Dynamic and static NAT and NAPT
Intelligent ACL
DNS, DynDNS
SNTP Client
Quality of Service, SLA Assurance
Patton Cloud based Call Quality Monitoring & Alerting**
Voice priority, DownStreamQoST
High Availability & Redundancy**
Traffic Management, shaping policing
IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
Management
Web/HTTPS, CLI and SSH Telnet access
Patton Cloud Orchestrated
Customizable WebWizard, Web-based GUI HTTP/HTTPS access, CLI Telnet/SSH
Secure Auto-Provisioning (Zero Touch) with built in root CA
Separate config domain (LAN side config and WAN side config)
TR-069 (CWMP-ACS), TFTP, HTTP, HTTPS configuration & firmware up- and download
Radius, TACACS+
SNMPv3 agent--MIB II and private MIB
Built-in diagnostic tools
Power
16-32 port
Single power supply, Secondary optional
110-230 VAC External Power Supply
12-60 VDC
48-128 port
Redundant, internal power
110-230 VAC
12-60 VDC
Dimensions & Packaging
19-in. rack-mount chassis
1U: 16-32 ports
2U: 48, 64 ports
3U: 72, 96 ports
4U: 128 ports
Environment
Operating temperature
32 to 104°F (0 to 40°C)
Operating humidity
Up to 90%, non-condensing)
Safety & Compliance
EMC compliance
EN55022 and EN55024
Safety compliance
EN 60950
CE compliance
FCC Part 15 Class A
TBR21 (FXS)
RoHS
ITU-T K.21 protection (FXS ports)*
