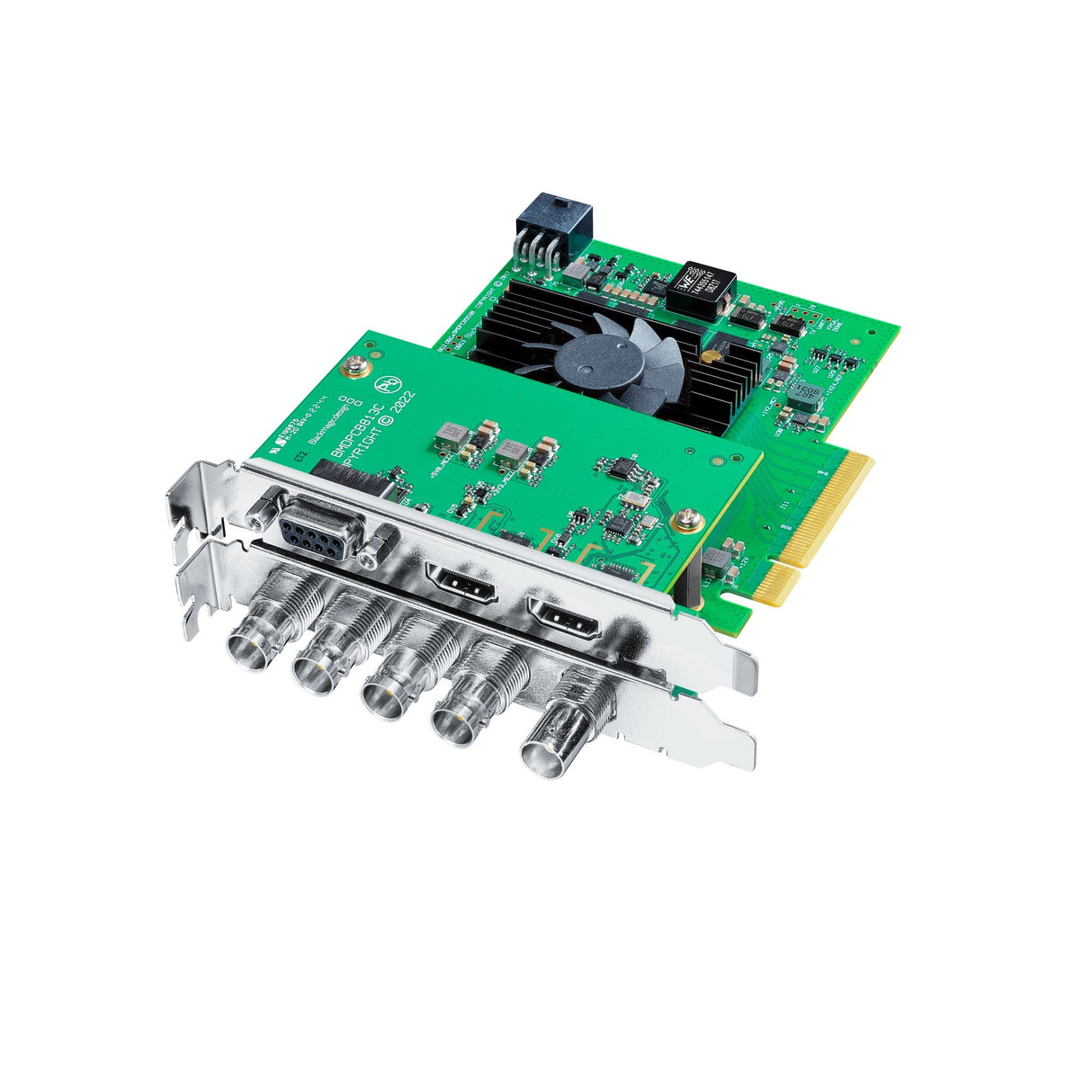

Blackmagic Design DeckLink 8K Pro G2 PCIe Capture and Playback Card

Blackmagic Design DeckLink 8K Pro G2 PCIe Capture and Playback Card

The Blackmagic Design DeckLink 8K Pro G2 PCIe Capture and Playback Card is a revolutionary device aimed at professional filmmakers and broadcasters, offering unparalleled capabilities in video capture and playback. Designed meticulously to cater to high-resolution needs, this capture card supports all standard formats including SD, HD, Ultra HD, 4K, and the latest 8K standards, making it an exceptional choice for high-end production environments. The card features robust connectivity options, ensuring seamless integration and superior performance across various platforms.

At the heart of the DeckLink 8K Pro G2 are its four bi-directional 12G-SDI connections and HDMI 2.1 interface, supporting true multi-channel capture and playback. Whether you are handling 8 or 10-bit YUV 4:2:2, or 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color, the DeckLink 8K Pro G2 delivers stunning visual fidelity. You can also expect performance up to 120 frames per second in HD and 4K, and 60 frames per second in 8K, addressing the demanding needs of modern workflows, including high dynamic range (HDR) and high frame rate (HFR) applications.

Its compatibility doesn’t end there. With the free DeckLink SDK, users can customize up to four video streams in any direction, format, or frame rate up to 4K DCI 60p. Additionally, the capture card can handle up to 64 channels of embedded audio, offering unmatched audio quality and synchronization. This comprehensive tool is supported by leading codecs and software, including DaVinci Resolve, Media Express, and others, ensuring ultimate compatibility and ease of use across multiple operating systems including Mac OS, Windows, and Linux.

Key Features

• Supports all SD, HD, Ultra HD, 4K, and 8K standards
• Four bi-directional 12G-SDI plus HDMI 2.1 connections
• True multi-channel capture and playback with DeckLink SDK
• Supports 8 and 10-bit YUV 4:2:2, and 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color
• Up to 120 fps in HD and 4K, and 60 fps in 8K
• Up to 64 channels of embedded audio

Specifications

• Connections:
• SDI Video Inputs: 4 x bi-directional 12G SDI
• SDI Video Outputs: 4 x bi-directional 12G SDI
• SDI Audio Inputs: 16 Channels embedded in SD/HD/2K, 64 Channels embedded in 4K/8K
• SDI Audio Outputs: 16 Channels embedded in SD/HD/2K, 64 Channels embedded in 4K/8K
• HDMI Video Inputs: 1 x HDMI 2.1
• HDMI Video Outputs: 1 x HDMI 2.1
• HDMI Audio Inputs: 8 Channels embedded in TMDS, 32 Channels embedded in FRL
• HDMI Audio Outputs: 8 Channels embedded in TMDS, 32 Channels embedded in FRL
• Sync Input: Tri-Sync or Black Burst
• Remote Control: 1 x RS 422 Out
• Computer Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots
• Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV NTSC, DV PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8 bit 4:2:2, Uncompressed 10 bit 4:2:2, Uncompressed 10 bit 4:4:4
• Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows; Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade: Firmware built into software driver, loaded at system start or via updater software
• Physical Installation: PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux; Requires 2 PCI slots plus connection to computer power supply

Package Contents

• DeckLink 8K Pro G2
• HDMI 2.1 mezzanine card
• External power cable
• Spacers and screws
• Welcome wallet with QR code for software download
• 3 Year Limited Manufacturer’s Warranty
