Peavey USB-P USB Playback
Low In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description

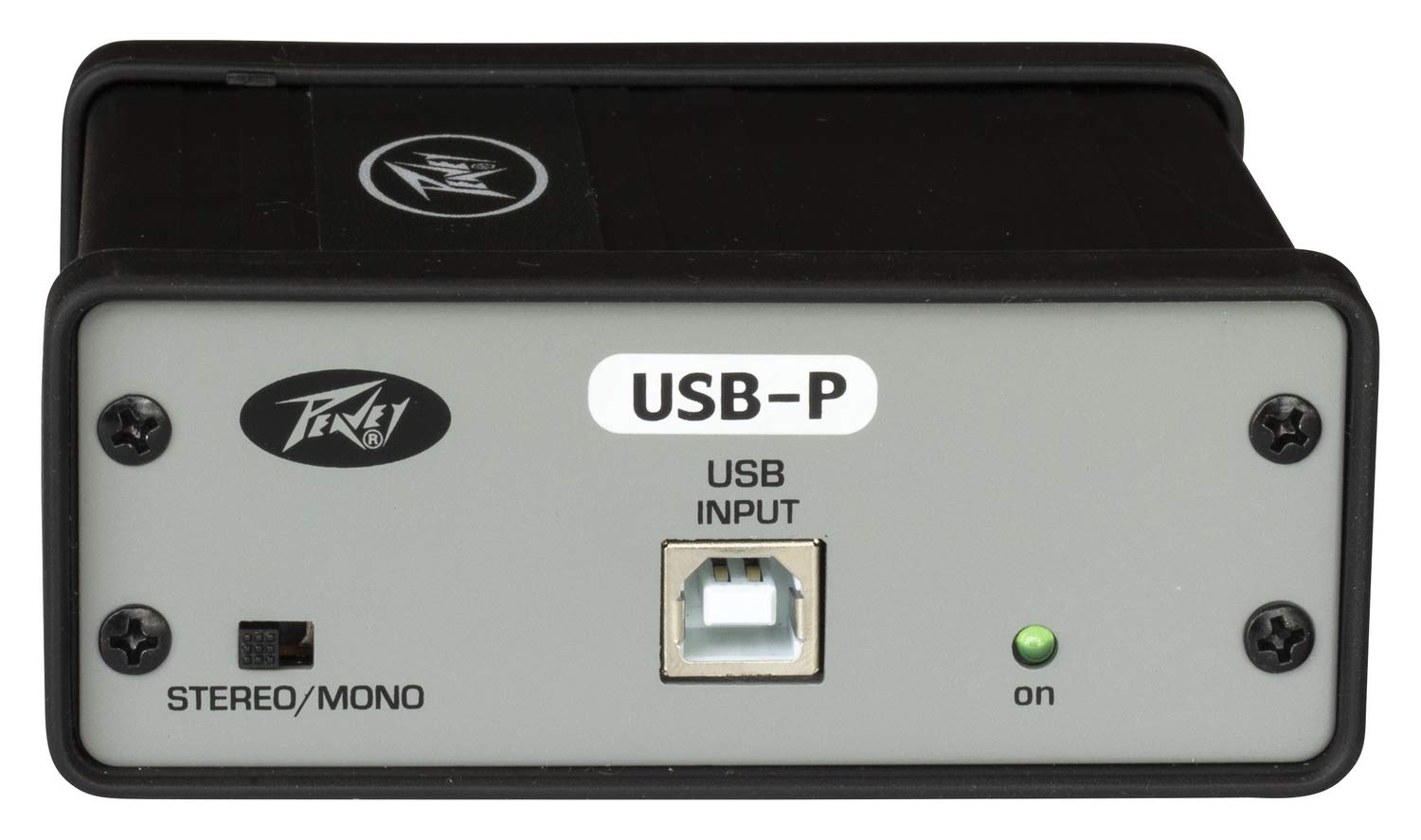

Peavey USB-P USB Playback
The USB-P is a USB audio device with transformer isolated balanced stereo outputs for connecting a computer to a sound system. As the name implies, the USB-P connects to the USB port of the computer and appears as the stereo output device. The dual transformers in the USB-P provide balanced outputs and ground isolation required when interfacing a computer to a sound system.
Key Features
- USB Class Compliant: Works immediately with Mac and Windows systems without requiring driver installation
- Dual Transformer Isolation: Eliminates ground loops and interference when connecting computers to sound systems
- Balanced Stereo Outputs: Professional XLR connections ensure clean signal transmission to mixing consoles
- Ground Lifted Design: Addresses common noise issues in computer-to-PA system integration
- USB Bus Powered: No external power supply required, draws power directly from computer USB port
- Stereo/Mono Switch: Select output configuration based on system requirements and application
- Compact Footprint: Minimal space requirements for easy integration into mobile and fixed installations
- Playback Only: Optimized specifically for computer audio output to sound reinforcement systems
Technical Specifications
- Interface Type: USB Audio Device
- Output Type: Transformer-isolated balanced stereo
- USB Standard: Class compliant (no drivers required)
- Power Source: USB bus powered
- Output Mode: Stereo/Mono selectable
- Weight (Unpacked): 0.44 lb (0.2 kg)
- Weight (Packed): 0.44 lb (0.2 kg)
- Width (Packed): 6" (15.24 cm)
- Height (Packed): 9" (22.86 cm)
- Depth (Packed): 2.25" (5.715 cm)
Package Contents
- USB Interface: Peavey USB-P main unit
- Documentation: User guide and specification sheet
