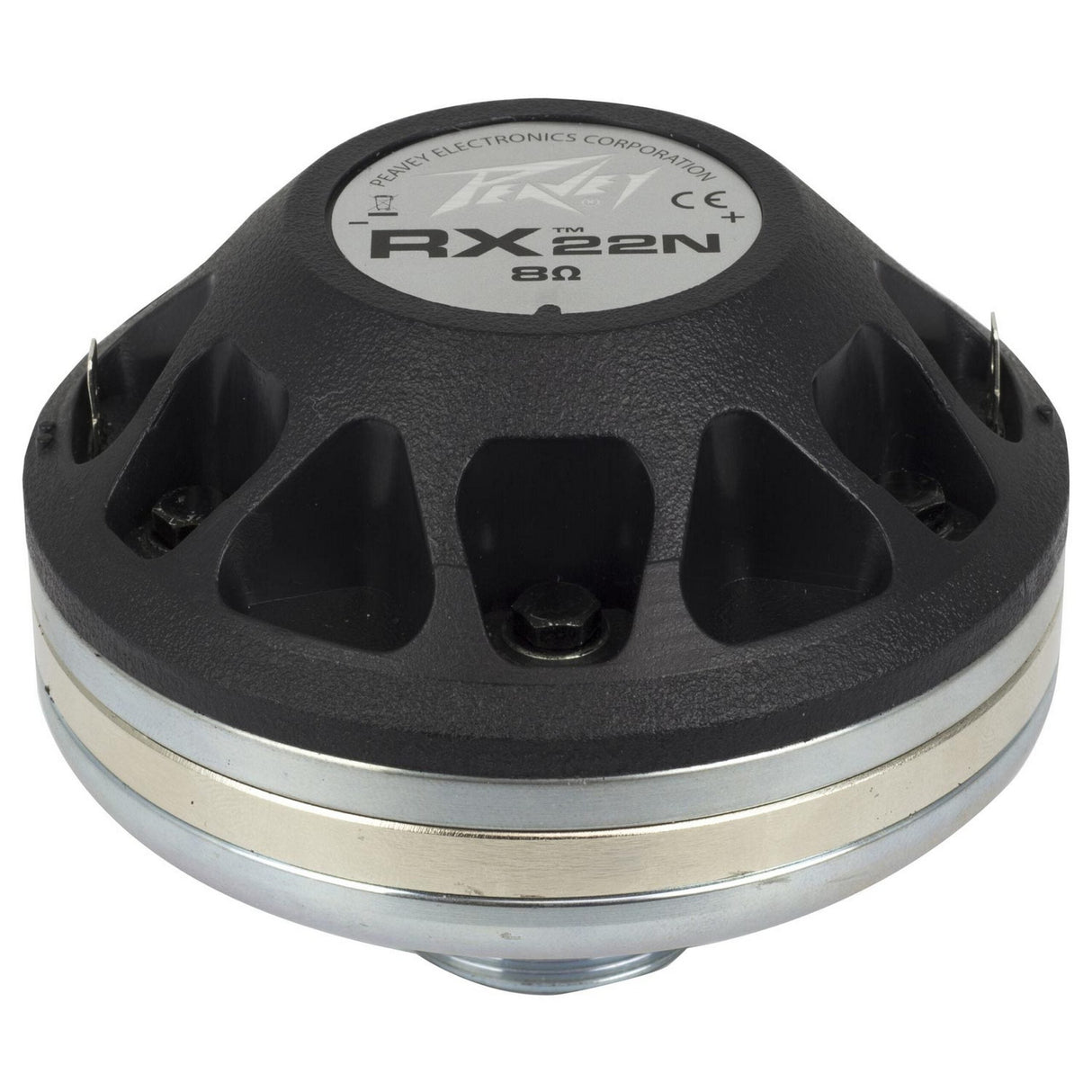

Peavey RX 22N Neo High Frequency Driver

RX 22N Neo HF Driver

Key Features

• 2”

Technical Specifications

Throat Parameter
0.875” / 22 mm
Nominal Impedance
8 Ohms
Minimum Impedance
5.2 Ohms
DC Resistance
5.1 Ohms
Power Capacity 1000 Hz to 20,000 Hz
280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity
111 dB / 1W 1m On-axis on 90º H x 45º V horn
Nominal Efficiency
30%
Frequency Response
500 Hz to 20,000 Hz
Recommended Crossover
1,200 Hz at 12 dB / Octave
Lowest Recommended Crossover
500 Hz at 12 dB / Octave
Diaphragm
Commercially pure titanium
Voice Coil Diameter
2.0” / 50.8 mm
Voice Coil Material
Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
Voice Coil Cooling
Ferrofluid
Flux Density
20,500 gauss (2T)
Dimensions
3.858” (98 mm) diameter x 3.01” (76.4 mm) depth
Horn Coupling Diameter
7/8” (22.2 mm)
Horn Coupling Threads
Standard 1 3/8” - 18”
Net Weight
2 lbs. 12 oz.
Shipping Weight
3 lbs. 11.5 oz.
Diaphragm Kit
03617300
Weight Packed
2.98 lb(1.35 kg)
Width Packed
4.5”(11.43 cm)
Height Packed
4.725”(12.0015 cm)
Depth Packed
3.55”(9.017 cm)
