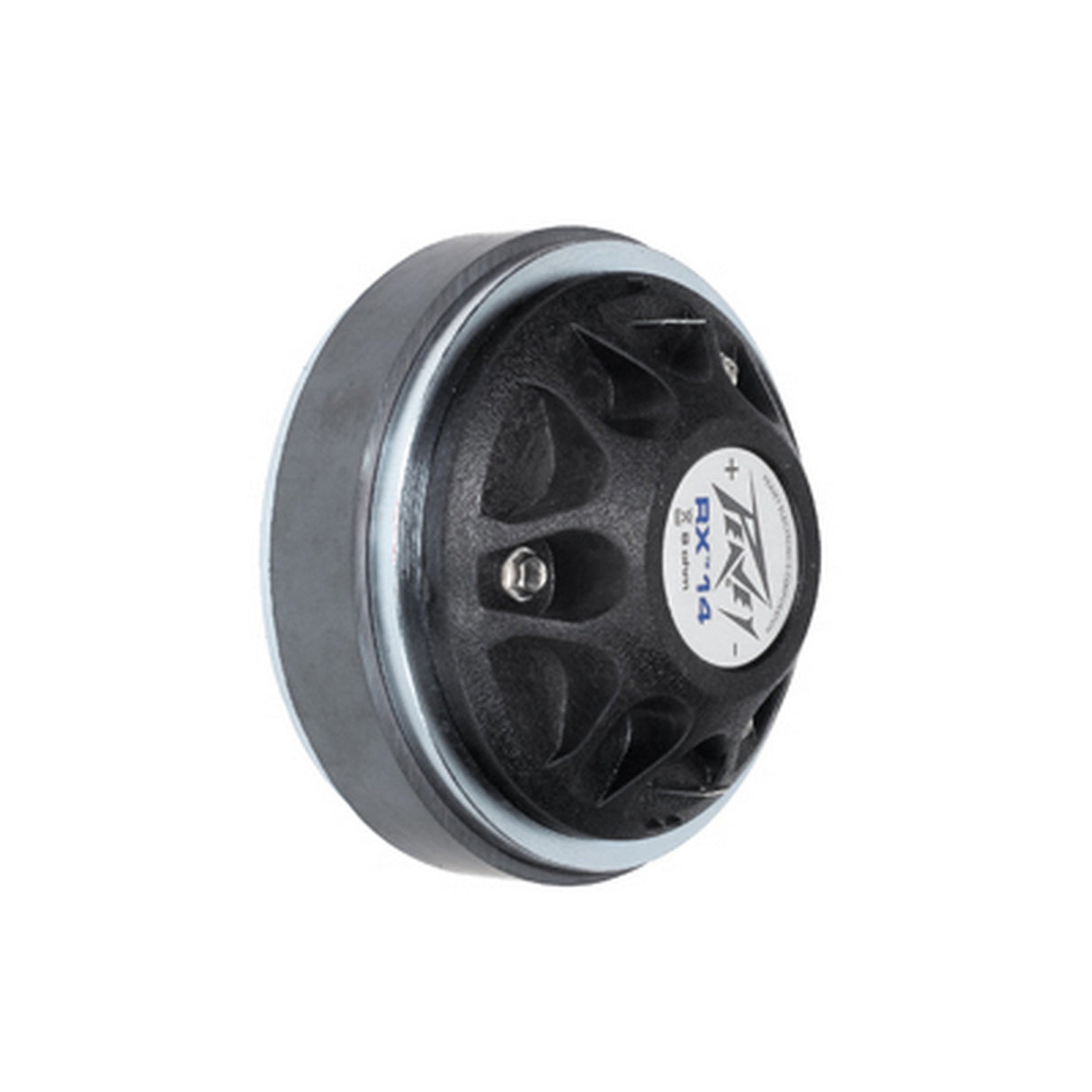

Peavey RX14 High Frequency Compression Driver
Peavey RX14 High Frequency Compression Driver
Peavey RX14 High Frequency Compression Driver
RX14 Driver
Key Features
- 1.4”
Technical Specifications
Throat Parameter
.938” / 23.8 mm
Nominal Impedance
8 Ohms
Minimum Impedance
7.1 Ohms
DC Resistance
6.8 Ohms
Power Capacity 1000 Hz to 20,000 Hz
120 W peak60 W program30 W continuous
Sensitivity
104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
Nominal Efficiency
30%
Frequency Response
1.5 kHz to 20 kHz
Recommended Crossover
1,800 Hz at 12 dB / Octave
Lowest Recommended Crossover
2,000 Hz at 12 dB / Octave
Diaphragm
Commercially pure titanium
Voice Coil Diameter
1.4” / 34.4 mm
Voice Coil Material
Edge-wound ribbon withhigh temp Kapton bobbin
Flux Density
11,500 gauss (1.15T)
Dimensions
3.54” (90 mm) diameterx 2.40” (61 mm) depth
Horn Coupling Diameter
.938” (23.8 mm)
Horn Coupling Threads
Standard 1 3/8” / 18”
Net Weight
33.6 oz.
Shipping Weight
38 oz.
Voice Coil Cooling
Ferrofluid
Weight Unpacked
2.26 lb(1.024 kg)
Weight Packed
2.26 lb(1.024 kg)
Width Packed
4.25”(10.795 cm)
Height Packed
4.25”(10.795 cm)
Depth Packed
3.25”(8.255 cm)
