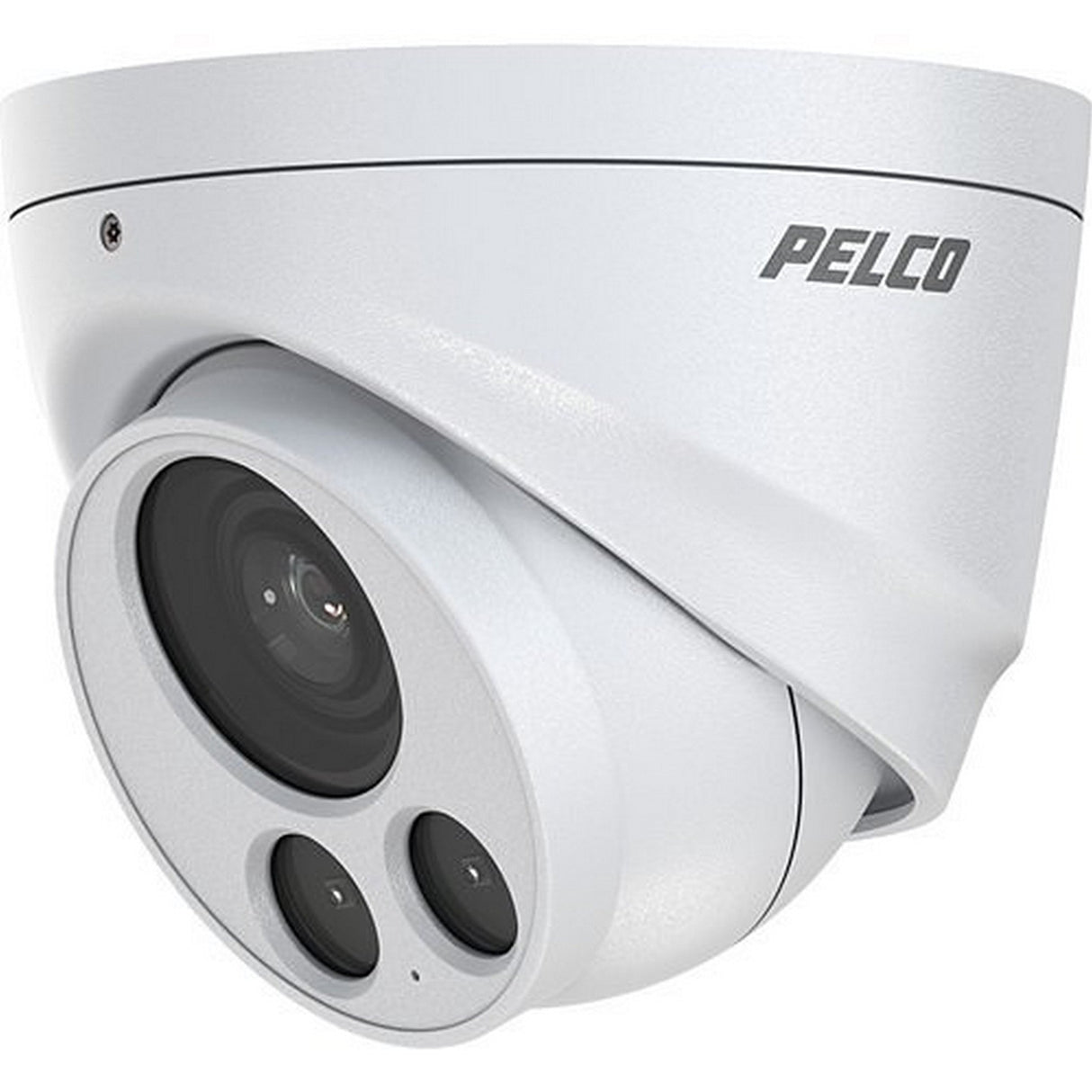

Pelco ITV529-1ERS Sarix Value Series 5MP IR Environmental Turret Camera, White

Sarix Value ITV Series cameras are easy to install with a bubble less design saving time and money. The Sarix Value Series features excellent image quality with great low light performance, color fidelity and true wide dynamic range (WDR) for increased visibility in difficult lighting situations. And with built-in IR illumination, the camera can provide coverage even in total darkness. The vari-focal lensing gives you the flexibility to set a range of fields of view. With IP66 rated ingress protection, the Sarix Value ITV Series can be deployed in a variety of indoor and environmental settings.

Sarix Value Series cameras provide options for three simultaneous video streams. The three streams can be compressed with efficient H.265, H.264 High or Main profiles, or MJPEG encoding. The streams can be configured to a variety of resolutions and frame rates. Pelco Smart Compression is available on both H.264 and H.265 to minimize storage and bandwidth utilization. Sarix Value Series cameras seamlessly connect to VideoXpert, Pelco's video management system as well as other leading Video Management Systems via the ONVIF Profile S, T, and G Profiles.

Key Features

• Excellent low light performance
• True Wide Dynamic Range
• 20 FPS @ 5 MP
• Built-in IR illumination up to 30 M
• Remote zoom and focus varifocal lens
• H.265 and H.264 encoding with Pelco Smart Compression
• IP66 for environmental ruggedness
• Built-in MicroSD / SDHC / SDXC Card Slot for On-board Storage
• Built-in Microphone

Technical Specifications

Effective Camera Resolution
5MP
Field of View
30° ~ 88° (Horizontal) 23° ~ 65° (Vertical) 38° ~ 115°(Diagonal)
HD Recording
Yes
Lens Type
Varifocal
Maximum Aperture
f/2.8
Maximum Focal Length (mm)
9.4
Maximum Frame Rate
20 fps
Minimum Focal Length
3.4 mm
Night Vision
Yes
Night Vision Type
Infrared
Optical Zoom
2.8x
Video Formats
H.264, H.265, MJPEG
Camera
Image Sensor Type
CMOS
Night Vision Distance
98.43 ft
Night Vision Distance (mm)
30000
Wide Dynamic Range
Yes
Display & Graphics
Color Supported
Color
Effective Camera Resolution (Pixel)
5000000
Maximum Video Resolution
2560 x 1920
Minimum Illumination (lux)
0.2
Environmental Conditions
Maximum Operating Temperature
140 Degrees F (60 Degrees C)
Maximum Operating Temperature (Degrees F)
140
Minimum Operating Temperature
-22 Degrees F (-30 Degrees C)
Minimum Operating Temperature (Degrees F)
-22
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.2 lux
Shortest Shutter Speed
1/32000 Second
Interfaces/Ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
9.4 mm
Minimum Aperture
f/1.4
Network & Communication
Remote Management
Yes
Physical Characteristics
Color
White
Diameter (mm)
120
Durability
Impact Resistant, Vandal Resistant
Form Factor
Turret
Height
3.6”
Height (mm)
90.5
Weight (Approximate)
1.38 lb
Width
4.1”
Width (mm)
105
Product Information
Diameter
4.7”
Mount Type
Ceiling Mount, Conduit Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm)
3.4
Storage
Recording Formats
HD
Storage Type
Memory Card
Video
Maximum Frame Rate (fps)
20
Miscellaneous
Features
3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Defog, Highlight Compensation (HLC), Ingress Protection, Motion Detection, Password Protection, SD Card Local Storage, Tamper Detection, Tampering Alarm, Wide Dynamic Range
Impact Protection Rating
IK10
Indoor/Outdoor
Indoor
Ingress Protection Rating
IP66
Package Contents
Sarix Value Environmental IR Turret
Quick Start Guide
Alignment Sticker
Screw Pack
Cable Gland
