Penta 721S-SDI Dual SDI to Dante Converter
Penta 721S-SDI Dual SDI to Dante Converter
Free Shipping
Penta 721S-SDI Dual SDI to Dante Converter

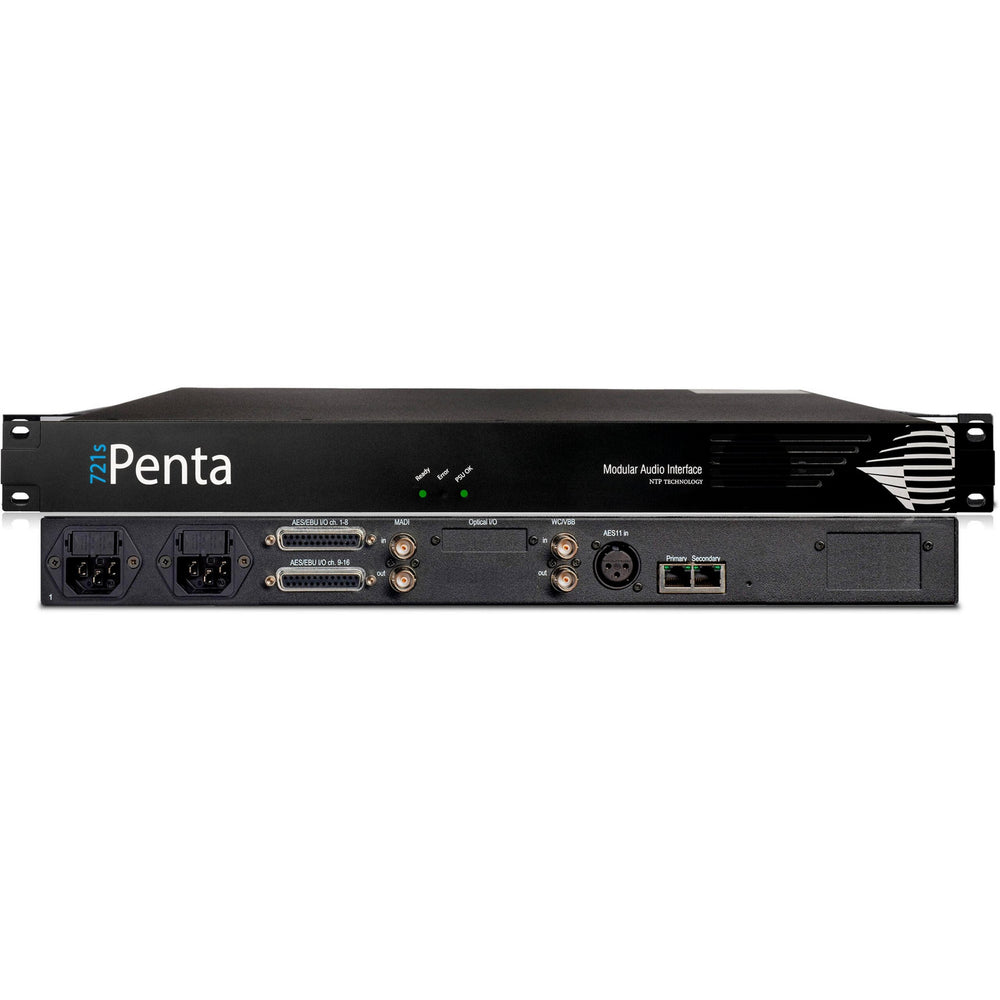

The NTP PENTA 721s-SDI is a Dual SDI embedder/de-embedder with onboard Sample rate Converter, MADI, AES and Dante, which provides a versatile and flexible solution for signal distribution of embedded audio via AES/EBU, MADI, as well as routing via IP Gigabit Ethernet and optical fiber networks. Penta 721s-SDI is a compact 1U digital audio interface with a dual set of 3G SDI input/output ports, Pro|Mon and dual power supply. It provides embedding and de-embedding of 16 audio channels per port where sample rate conversion can be enabled if desired. All embedded channel can be routed to and from any of the digital interfaces on the unit. It comes with eight channel AES/EBU input/output channels, MADI and Dante IP Audio Ethernet in/outs, as well as an optional mini-module slot with dual SFP MADI optical in/out connection.
Key Features
- Crestron Drivers: routing and volume
- 64 MADI / BNC
- 2 IP Audio RJ45 Ethernet Ports (DANTE Brooklyn 2 card included as standard)
- 8 AES/EBU I/O and 1-3 MADI I/O
- Word clock and VBB in and out
- AES11 Sync Input (clock)
- 512 x 1512 routing
- IP audio L3 Ethernet I/O powered by Dante
- TCP/IP control via NTP Router Control System and Standalone control applications for PC Single or Dual power supply
- 1 Card Slot - choose from one of the seven Penta Option Cards
- D-slot mini-module slot for optional ST optical MADI connection or dual SFP MADI optical in/out. 128 MADI
Technical Specifications
Fitted with 64 Dante/AES67 Brooklyn 2 module
Expansion slot fitted with Dual SDI Embedder/De-Embedder
Dual MADI Option Slot
