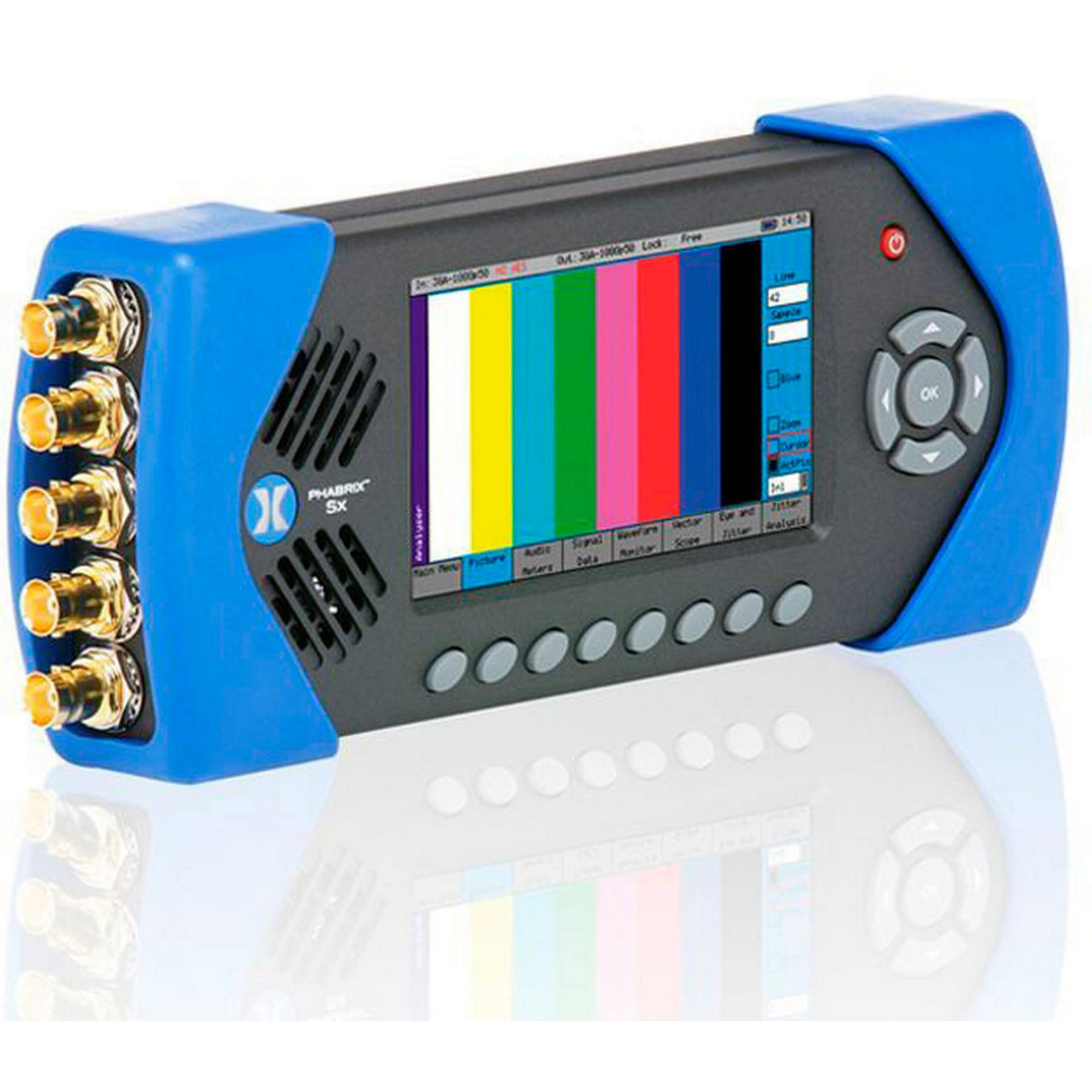

Phabrix SxAES Portable Audio/Video Test Signal Generator

Portable 3G/HD/SD Generation, Analysis & Video/Audio Monitoring
The PHABRIX SxA offers all of the same advanced signal generation, analysis and monitoring capabilities as the SxE, without the advanced Real-Time SDI physical layer analysis (eye and jitter instruments)

There's support for SMPTE compliance testing with over 350 different formats. An extensive array of video and audio tools includes a signal generator with moving test patterns, a high-performance waveform, and ANC/VANC inspector. The SxA also offers 16 channel audio generation and metering with support for Dolby E, Dolby Digital and Dolby Digital metadata and bitstream analysis.

Extensive video & audio toolset
The SxA offers an extensive array of video and audio tools, including a signal generator with moving test patterns, and high-performance waveform and vectorscope instruments. It'supports test and measurement with over 350 formats for highly effective compliance monitoring.

Other key capabilities include Dolby E, Dolby Digital and Dolby Digital Plus bitstream analysis, as well as video status logging, and remote operation over Ethernet.

Ultra-portable, rugged design
The SxA offers exceptional mobility with a lightweight (0.7 kg) but rugged aluminum case with integral, high-quality screen for instrument display and video monitoring.

The generator/analyzer operates via rechargeable lithium battery for up to 2 hours, and can also be powered by the mains to offer flexible operation around facilities.

Fast operation
With its color-coded GUI that simplifies signal and instrument selection, the Sx series generator/analyzers offer unmatched ease of use for busy engineers who need to diagnose faults and assure compliance quickly.

Key Features

• Simultaneous generation and analysis for SMPTE compliance testing
• 3G/HD/SD-SDI support
• Embedded audio generation, analysis & monitoring with 1x AES in, 1x AES out, 48kHz 75 Ohm
• Auto Bi-level, Tri-level and SDI genlock with cross lock capability
• Over 350 formats supported for compliance monitoring
• 12-bit waveform monitor with YCbCr, Y, Cb, Cr and GBR format display and horizontal/vertical graticules
• Vectorscope for checking color bias / conformity
• Signal generation with 32 test patterns, including Pathological and moving patterns
• CRC error detection, video aspect ratio detection and SMPTE 351 display
• HANC/VANC support
• Pixel check and picture zoom
• Embed a single external 48kHz synchronous AES stream into the generated video stream
• Extract embedded audio and export it via the AES output
• 16 channel audio metering
• Dolby E, Dolby Digital and Dolby Digital Plus bitstream analysis
• TCP/IP interface for remote control and automated testing
• Comprehensive status logging with custom reports
• Instrument picture capture to simplify fault finding
• High quality, 16:9 built-in screen for video monitoring
• Rechargeable lithium battery delivers 1-2 hours operation and mains power also available
• Superior ease of use with color coded GUI
• Lightweight at 0.7kg
• Rugged aluminum case for demanding broadcast environments

Technical Specifications

Monitor Details
Display resolution
480 x 272 pixels auto scaling
Display type
16:9 24-bit color TFT
Display size
95 x 54 mm
Processing
All digital
Video
SDI
3G-SDI, HD-SDI SD-SDI
Outputs
1 x 75 Ohm BNC
Inputs
1 x 75 Ohm BNC
Genlock
Bi/Tri/SDI with cross lock
Adjustable timing
0 to 1 Frame
Text Ident
Yes, with font, color and point size
Logo ident
Yes
EDH
Yes (SD-SDI)
Video Test Signal
Resolution
10 bits
Static Test patterns
32+ including full frame
Moving Zone Plate
Yes
User defined
DPX, YUV, TGA, BMP
Audio
Internal speaker
0.5 watts
Audio DAC
24-bIt'stereo
Headphone socket
3.5 mm with auto line out
Generator/Monitor
48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 channel embedded audio
Yes
AES output
1 x 75 Ohm BNC
AES input
1 x 75 Ohm BNC
Audio Test Signal
Fixed tones
17
Variable tones
1 Hz-24 Khz in 1Hz steps
Intermittent Tone
Yes
White noise generation
Yes
Audio levels variable
0 to -100dB in 1dB steps
Audio phase invert
Yes
General
Navigation panel
5 menu keys 8 custom select/program
Integral battery supply
Yes
Internal Storage
8GB (upgradable)
Remote control
Web browser interface
Ethernet/USB
Yes
Security
Kensington lock fitting
Size
H:92mm W: 225mm D: 42mm
Weight
0.7kgs
Item Includes
Carry case
AC power supply
