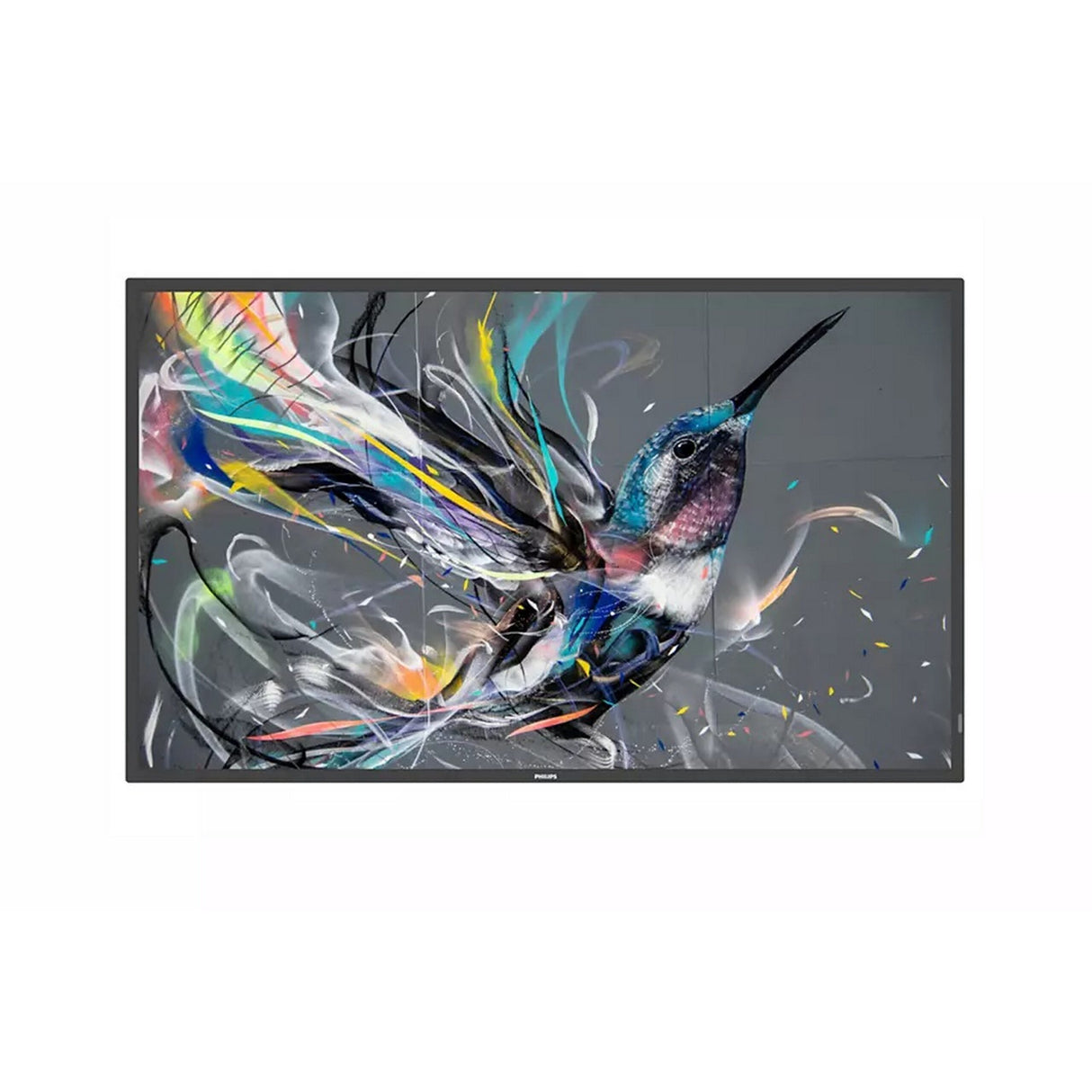

Philips 32BDL3550Q/00 32 Inch Signage Solutions Q-Line Display

Inform and enthrall with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need. Inform and enthrall with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need. Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100. From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on. Take control of your content with CMND & Create. A drag-and-drop interface makes It'simple to publish your own content-whether It's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time. Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done. Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer. Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

Technical Specifications

Picture/Display
Diagonal screen size (metric)
80 cm
Diagonal screen size (inch)
31.5 inch
Panel resolution
1920x1080p
Optimum resolution
1920 x 1080 @ 60 Hz
Brightness
350 cd/m?
Contrast ratio (typical)
4000:1
Dynamic contrast ratio
500,000:1
Response time (typical)
8 ms
Aspect ratio
16:9
Viewing angle (horizontal)
178 degrees
Viewing angle (vertical)
178 degrees
Pixel pitch
0.36375 x 0.36375 mm
Display colors
16.7 million
Panel technology
VA
Picture enhancement
3/2 - 2/2 motion pull down
3D Combfilter
3D MA deinterlacing
Dynamic contrast enhancement
Motion compens. deinterlacing
Progressive scan
Operating system
Android 8.0
Clinical image
D-Image preset (dicom part 14 compatible)
Supported Display Resolution
Computer formats
1920 x 1080, 60Hz
1680 x 1050, 60Hz
1600 x 1200, 60Hz
1440 x 900, 60Hz
1280 x 1024, 60Hz
1280 x 800, 60Hz
1280 x 720, 60Hz
1152 x 870, 75Hz
1024 x 768, 60, 70, 75Hz
800 x 600, 56, 60, 72, 75Hz
720 x 400, 70Hz
640 x 480, 60, 67, 72, 75Hz
1152 x 864, 75Hz
832 x 624, 75Hz
Video formats
576p, 50Hz
576i, 50Hz
480p, 60Hz
480i, 60Hz
1080p, 50, 60Hz
1080i, 50, 60Hz
3840 x 2160, 30Hz
3840 x 2160, 60Hz
720p, 50,60 Hz
Connectivity
Video input
HDMI 2.0 (x2)
USB 2.0 (x2)
DVI-I (x 1)
Audio input
3.5 mm jack
Audio output
3.5mm jack
External control
RJ45
RS232C (in/out) 2.5 mm jack
IR (in/out) 3.5 mm jack
Convenience
Energy saving functions
Smart Power
Tiled Matrix
Up to 15 x 15
Start-up
Switch on delay
Switch on status
Boot on source
Start-up window
enable / disable Philips logo
Keyboard control
Lockable
Hidden
Network controllable
RS232
RJ45
Signal loop through
RS232
IR Loopthrough
Placement
Landscape (18/7)
Portrait (18/7)
Remote control signal
Lockable
Dimensions
Bezel width
11.9 (TLR) / 17.2 (B) mm
Set Width
726.5 mm
Set Height
425.4 mm
Set Depth
69.1(D@Handle) / 65.1(D@Wall mount) mm
Set Width (inch)
28.6 inch
Set Height (inch)
16.75 inch
Set Depth (inch)
2.72 (D@Handle) / 2.56 (D@Wall mount) f inch
VESA Mount
100mm x100mm, 200mm x 200mm, M4
Product weight
5.31 kg
Product weight (lb)
11.71 lb
Operating conditions
Temperature range (operation)
0 ~ 40 C
Temperature range (storage)
-20 ~ 60 C
MTBF
50,000 hour(s)
Altitude
0 ~ 3000 m
Humidity range (operation)
20 ~ 80% RH (No condensation)
Humidity range (storage)
5 ~ 95% RH (No condensation)
Power
Mains power
100 - 240V~, 50-60Hz, 1.5A
Standby power consumption
<0.5 W
Consumption (Max)
80 W
Consumption (Typical)
50 W
Power Saving Features
Smart Power
Energy Label Class
G
Sound
Built-in speakers
2 x 10W RMS
Multimedia Applications
USB Playback Video
MPEG
H.264
H.263
H.265
USB Playback Picture
BMP
JPEG
PNG
USB Playback Audio
AAC
HEAAC
MPEG
Accessories
Included accessories
AC Power Cord
RS232 cable
Remote Control
Batteries for remote control
Quick start guide
Included Accessories
IR sensor cable (1.8 m) (x1)
RS232 daisy-chain cable
Philips logo (x1)
USB Cover and screw (x2)
Stand
BM02541/BM05911(optional)
Miscellaneous
Warranty
3-year warranty
On-Screen Display Languages
English
French
German
Italian
Polish
Turkish
Russian
Simplified Chinese
Spanish
Traditional Chinese
Arabic
Japanese
Regulatory approvals
CB
CE
BSMI
CU
EPA
ETL
FCC, Class A
VCCI
J-Moss
Internal Player
CPU
Dual core cortex A53 1.1G Hz
Dual core cortex A73 1.15G Hz
GPU
ARM Mali G51
Memory
2GB DDR3
8GB
What's in the box?
Other items in the box
AC Power Cord
RS232 cable
Remote Control
Batteries for remote control
Quick start guide
