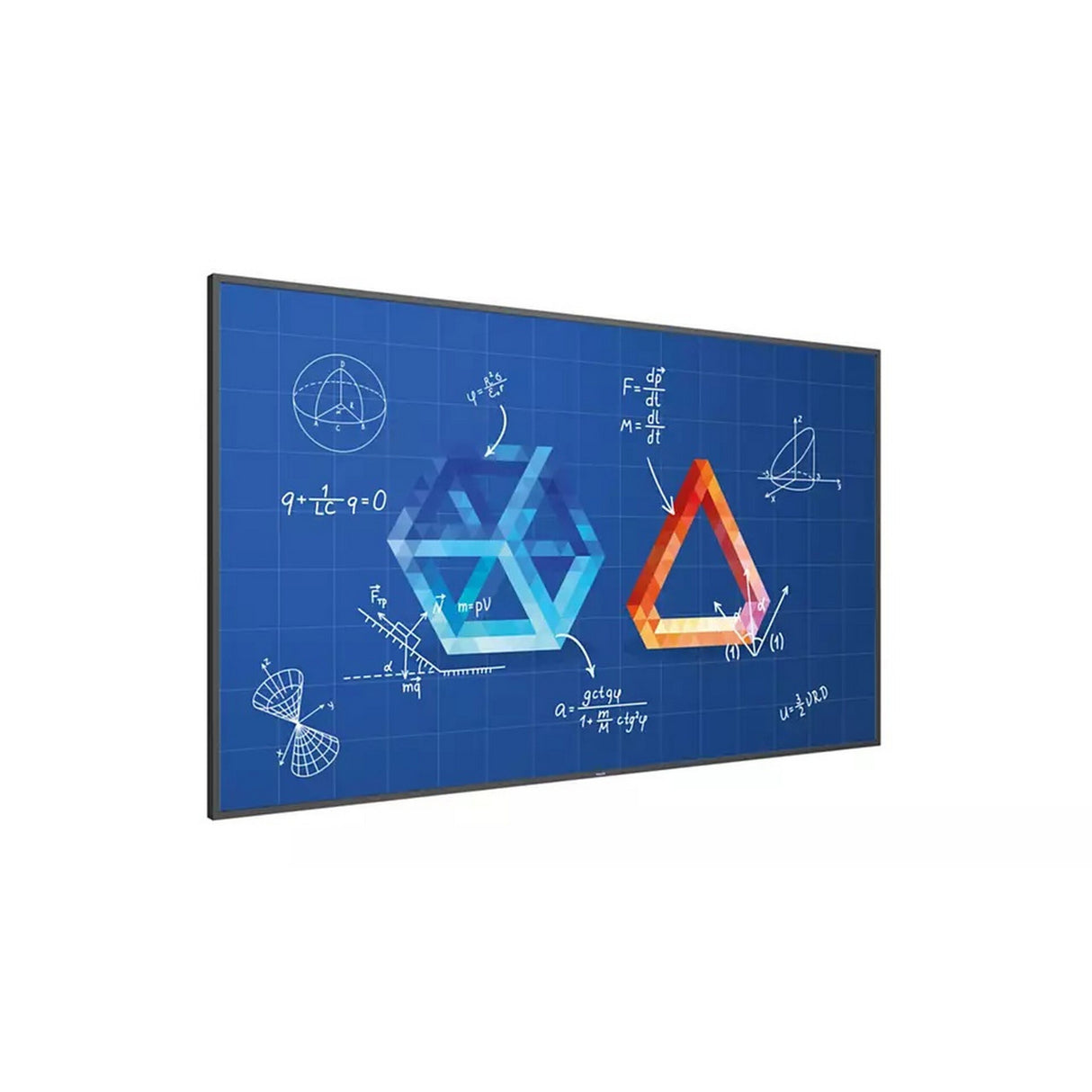

Philips 86BDL3552T 86 Inch Signage Solutions Multi-Touch Display

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touch points. Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply. Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100. Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.

Technical Specifications

Picture/Display
Diagonal screen size (inch)
85.6 inch
Diagonal screen size (metric)
217.4 cm
Panel resolution
3840 x 2160
Optimum resolution
3840x 2160 @ 60Hz
Brightness
420 cd/m
Contrast ratio (typical)
1200:1
Dynamic contrast ratio
500,000:1
Aspect ratio
16:9
Response time (typical)
8 ms
Pixel pitch
0.4935x0.4935 mm
Display colors
1.07 billion
Viewing angle (horizontal)
178 degree
Viewing angle (vertical)
178 degree
Picture enhancement
3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
3D MA deinterlacing
Dynamic contrast enhancement
Progressive scan
Operating system
Android 9
Panel technology
IPS
Surface treatment
Anti-Glare coating
Connectivity
Video input
Display Port1.2 (x1)
DVI-I (x 1)
HDMI 2.0 (x4)
USB 2.0 (x2)
USB 3.0 (x2)
USB-C
Audio input
3.5mm Jack (x1)
Audio output
3.5mm Jack (x2)
Other connections
OPS
micro SD
External control
RJ45
RS232C (in/out) 2.5 mm jack
IR (in/out) 3.5 mm jack
Video output
DVI - D (x1)
HDMI 2.0 (x1)
USB 2.0 (x2)
DisplayPort 1.2 (x1)
Supported Display Resolution
Computer formats
1600 x 1200, 60Hz
1360 x 768, 60Hz
1024x768, 60,70Hz
1152 x 864, 60, 70, 75Hz
1152 x 900, 66Hz
1280 x 720, 60,70Hz
1280 x 768, 60Hz, 75Hz
1280 x 800, 60,75Hz
1280 x 960, 60Hz
1280x1024, 60,67,75Hz
1366 x 768, 60Hz
1400 x 1050 ,60, 75Hz
1440 x 1050, 60Hz
1440 x 900, 60, 75Hz
1600 x 900, 60Hz
1680 x 1050, 60Hz
1920 x 1080, 60Hz
1920 x 1200, 60Hz
3840 x 2160, 24,25,30,60Hz
640 x 350, 70Hz
640 x 480, 60, 67, 72, 75Hz
800 x 600, 56, 60, 72, 75Hz
832 x 624, 75Hz
848 x 480, 60Hz
960x720, 75Hz
Video formats
1080p, 50, 60Hz
720p, 50, 60Hz
1080i, 50, 60Hz
480p, 60Hz
4K x 2K
576p, 50Hz
720p, 60Hz
Dimensions
Set Width
1961.00 mm
Set Height
1132.30 mm
Set Depth
80.5mm(D@wall mount) / 108.4mm(D@speaker cover) mm
Set Width (inch)
77.20 inch
Set Height (inch)
44.58 inch
Set Depth (inch)
3.17(D@wall mount) / 4.27 (D@speaker cover) inch
Bezel width
16.30 mm(even)
Product weight (lb)
163.8 lb
Product weight
74.3 kg
VESA Mount
600(H)x400(V) mm, M8
Smart Insert mount
100mm x 100mm, 6xM4L6
