Phoenix Audio Technologies MT505 Spider USB and SIP Conference Phone
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

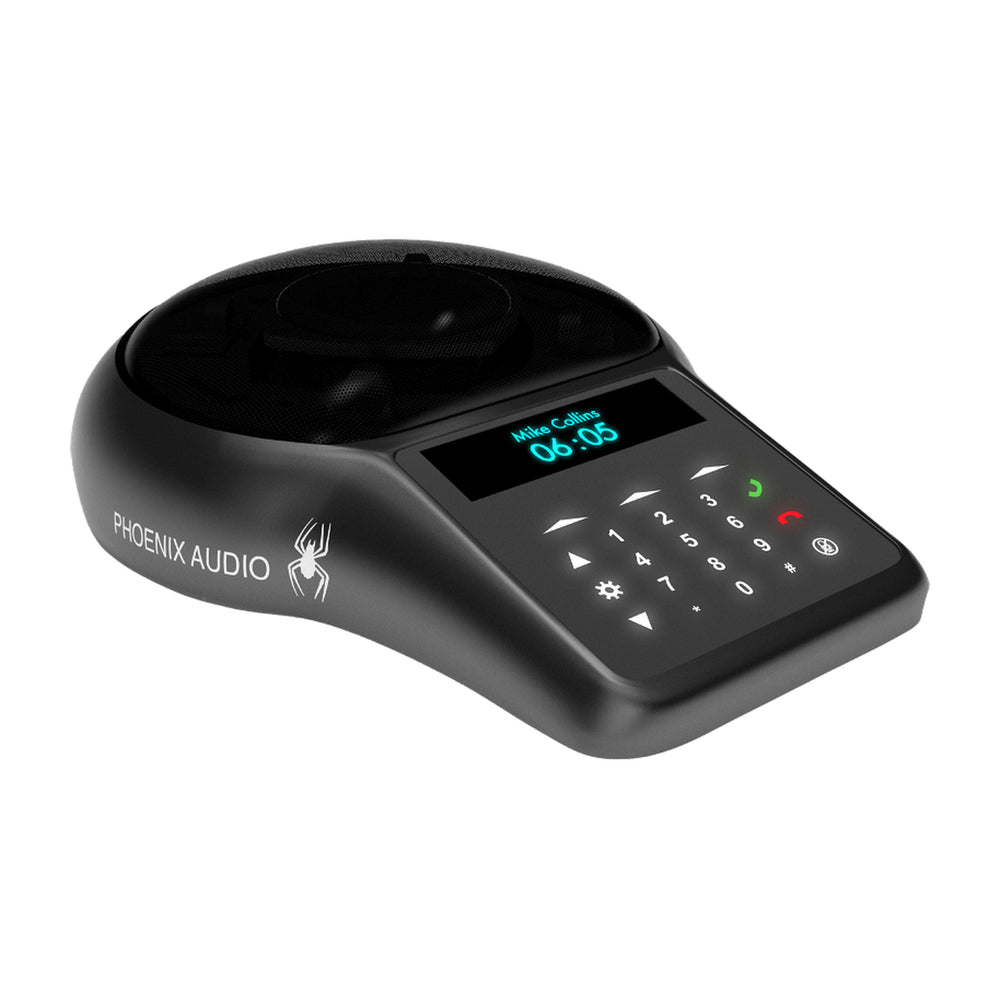

Phoenix Audio Technologies MT505 Spider USB and SIP Conference Phone
The Spider conference phone delivers top class performance accompanied by unmatched versatility to make it the perfect audio device for your organization. The Spider is ideal for boardrooms, conference rooms, huddle rooms, and executive offices.
Key Features
- SIP telephony & USB soft codec connectivity to address both videoconferencing and audio conference meetings. The Spider also support a three way call bridge between both interfaces to provide maximum flexibility.
- Unparalleled daisy chaining capabilities to up to 14 Smart Spider (MT503) units to cover any size conference room.
- Intuitive and interactive user interface that is incorporated through LED lights discreetly placed throughout the unit. The Spider comes to life when it is in action and displays only the needed functions depending on the specific scenario to provide an easy to use audio solution for your conference room.
Technical Specifications
Audio
Frequency Response
50Hz-16KHz
Low latency (10ms)
Broadcast level (peak)
92dB SPL @1m (5 watts RMS)
Three-way bridging capability
Noise cancelation
> 10dB (without pumping noise)
100% full duplex - no attenuation (in either direction) during full duplex
High-end performance confirms to ITU-T G.167
Acoustic echo cancelation
> 40dB/sec
Residual echo is suppressed to the environment noise level, preventing artificial ducking of signal
4 high-quality directional microphones
Beam-forming algorithm (forms and directs audio beams towards a define direction)
Automatic voice-level adjustment (AGC)
Dimensions
Dimension
7" diameter, 1-7/8" height
Weight
2 lbs
Metal case and metal grill mesh for high RFI immunity and product durability
High RFI immunity and product durability
Software
Plug-and-Play
No installation or additional drivers required
Audio Setup Utility is available for Windows.
Recording utility is available for Windows.
Recording utility allows you to record conversations to your computer via the device.
Operating systems
Windows 98 and up / Linux / MacOS.
Installation / Use Cases
- Use as a USB and SIP conference phone for boardrooms, conference rooms, huddle rooms, and executive offices.
- Suitable for meetings that need both USB soft codec connectivity and SIP telephony.
- Use for videoconferencing and audio conference meetings with three-way call bridging between both interfaces.
- Suitable for larger conference spaces by daisy chaining up to 14 Smart Spider MT503 units.
- Use in rooms that need full-duplex audio, acoustic echo cancellation, noise cancellation, and automatic voice-level adjustment.
- Suitable for conferencing setups that need plug-and-play operation without additional driver installation.
Package Contents
- Phoenix Audio Technologies MT505 Spider USB and SIP Conference Phone
- USB Cable
- 48V Power Supply International AC Adapter
- Daisy Chain Cable (Ethernet)
- Telephone Cable
Frequently Asked Questions
What meeting spaces is the Phoenix Audio MT505 Spider designed for?
The MT505 Spider is designed for boardrooms, conference rooms, huddle rooms, and executive offices that need a USB and SIP conference phone.
Can the MT505 support both computer-based and SIP calling?
Yes. It supports USB soft codec connectivity and SIP telephony, making it useful for both videoconferencing and audio conference meetings.
How does three-way bridging help during a meeting?
Three-way bridging allows the Spider to bridge between the USB and SIP interfaces, giving meeting organizers more flexibility when connecting different call types.
Can the system cover larger conference rooms?
Yes. The MT505 can daisy chain up to 14 Smart Spider MT503 units, which helps expand room coverage.
How does the MT505 improve speech clarity?
It uses four directional microphones, beam-forming, automatic voice-level adjustment, noise cancellation, acoustic echo cancellation, and full-duplex audio.
Does the Spider require special drivers?
No. It is plug-and-play and does not require additional driver installation.
What comes with the Phoenix Audio MT505 Spider?
The package includes the MT505 Spider conference phone, USB cable, 48V power supply international AC adapter, daisy chain Ethernet cable, and telephone cable.
