Dracast DRL1000PDVG LED1000 Plus Series Daylight Panel
Dracast DRL1000PDVG LED1000 Plus Series Daylight Panel
Free Shipping
Dracast DRL1000PDVG LED1000 Plus Series Daylight Panel

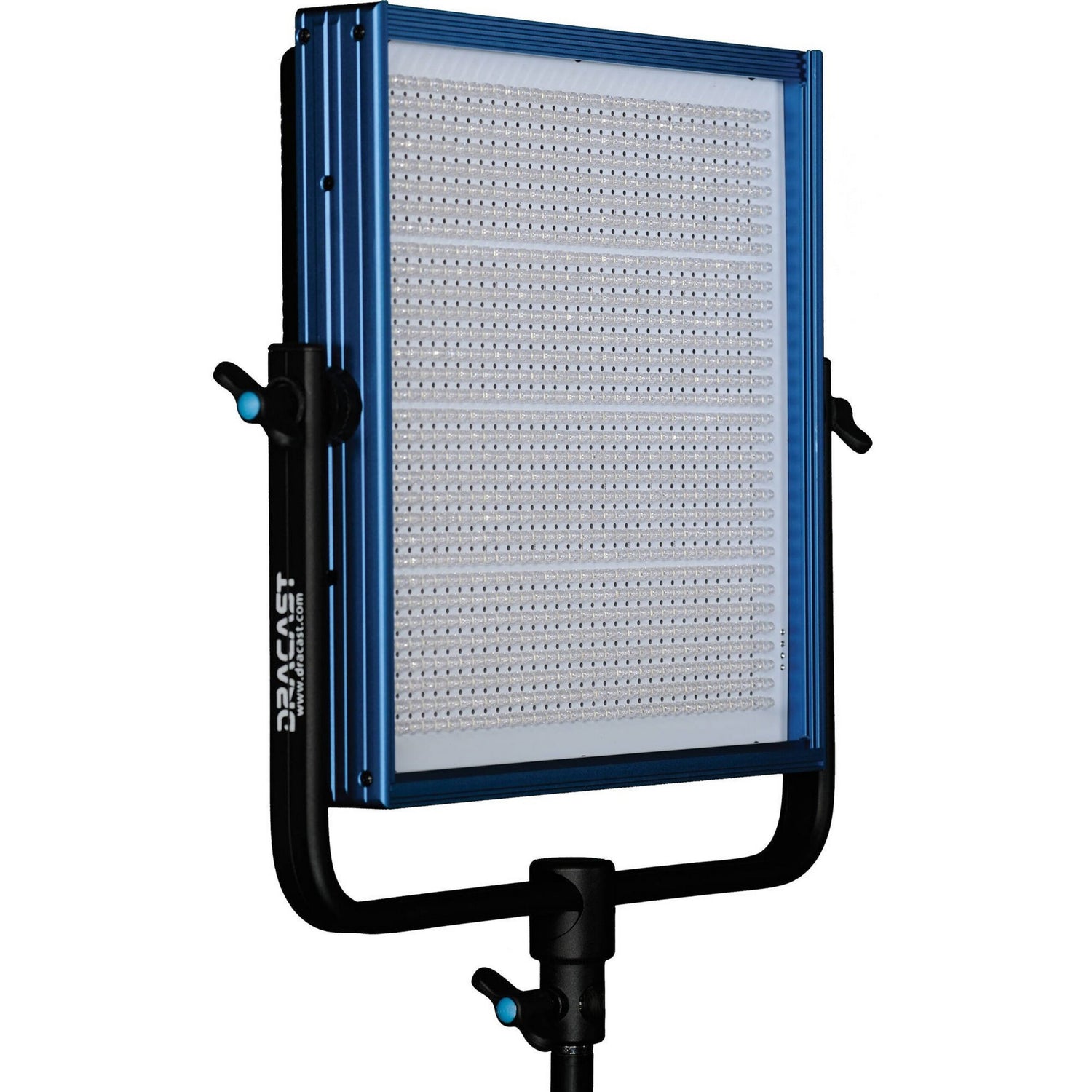

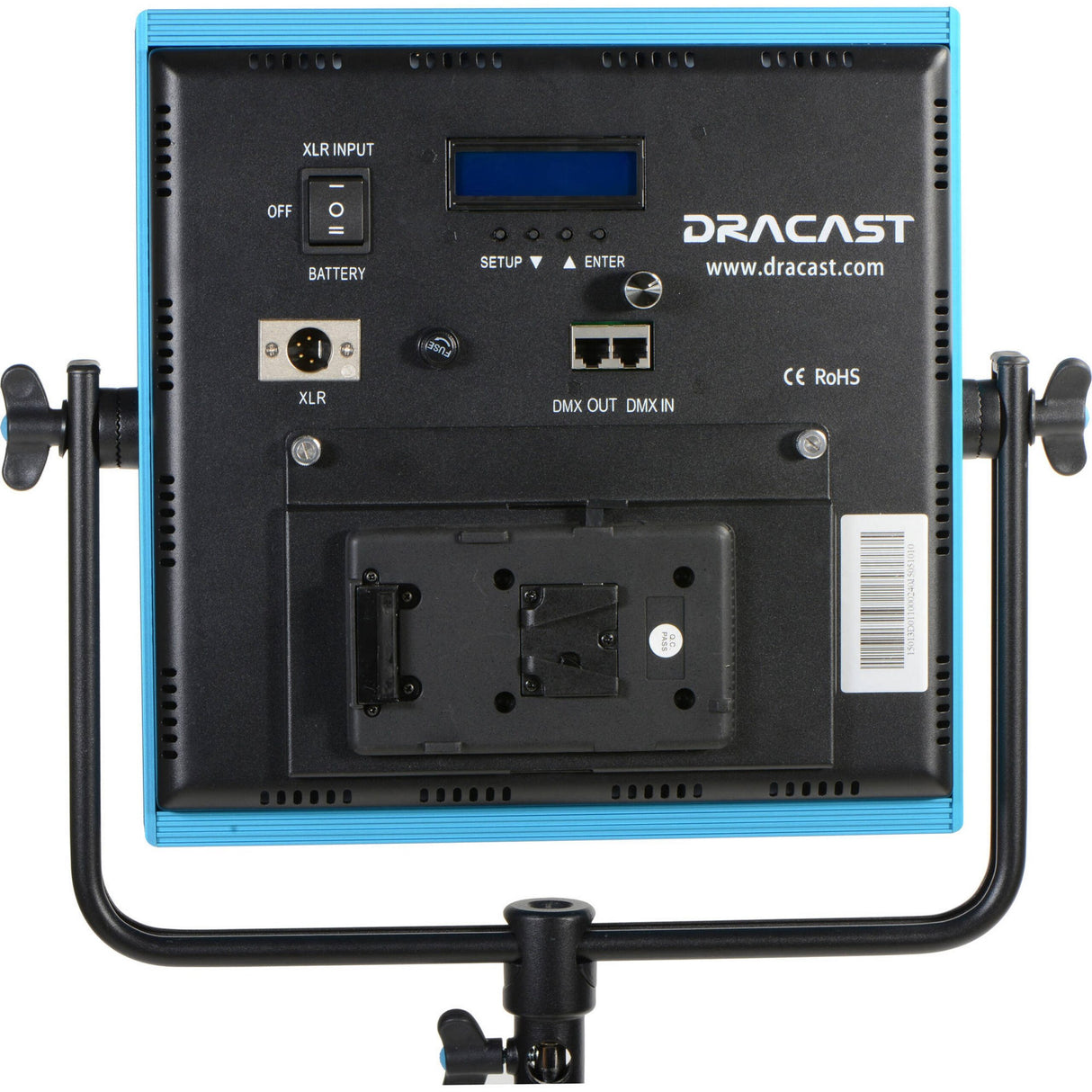

Expanding on their line of panels, the LED1000 Plus Series Daylight LED Light from Dracast adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 1024 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a daylight-balanced color temperature of 5600K for matching with natural light and other fixtures.
The lights offer a spot beam angle of 45 as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 60W of power. Additionally, it is lightweight at just 5.5 lb and measures 12 x 12 x 2” in size.
In the Box
Dracast LED1000 Plus Series Daylight LED Light
Battery Plate for LED500 and LED1000 (Gold Mount)
Battery Plate for LED500 and LED1000 (V-Mount)
Aluminum Yoke for LED1000 Light
AC Power Adapter for LED1000 Light
Carrying Case
Limited 1-Year Warranty
Key Features
- 1024 LEDs with CRI of >95
- Color Temperature: 5600K
- Beam Angle: 45
- Dimming from 0-100%
- DC or AC Operation
- 12 x 12 x 2” Panel; Weighs 5.5 lb
- DMX Input and Output
- Digital Display & Aluminum Chassis
- Gold Mount and V-Mount Battery Plates
Technical Specifications
Beam Angle
45
Color Temperature
5600K
Color Accuracy Standard
CRI 95
Cooling System
None
Dimming
Yes, 0 to 100%
Display
None
Housing Material
Aluminum
Number of LEDs
1024
Fixture Dimensions
12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm
Fixture Weight
5.5 lb / 2.5 kg (Including Yoke)
Battery Plate
1 x Gold Mount
1 x V-Mount
DMX Connector
RJ45
Yoke Mounting
TVMP / Hex Bolt
Fixture Mount
5/8" Receiver
Accessory Mount
None
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC
Power Source
AC Adapter, External Battery
Max Power Consumption
60 W
IP Rating
IP20
