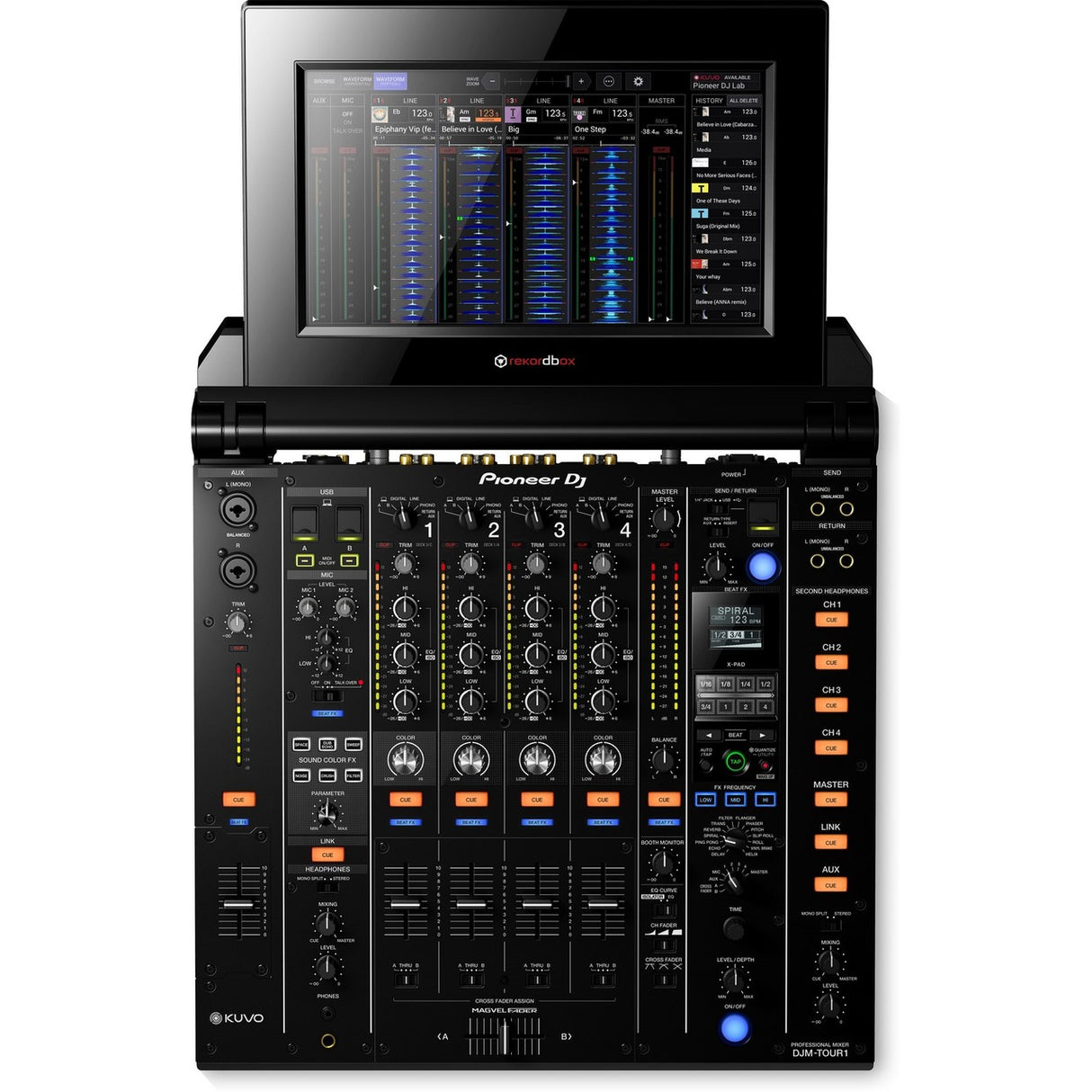

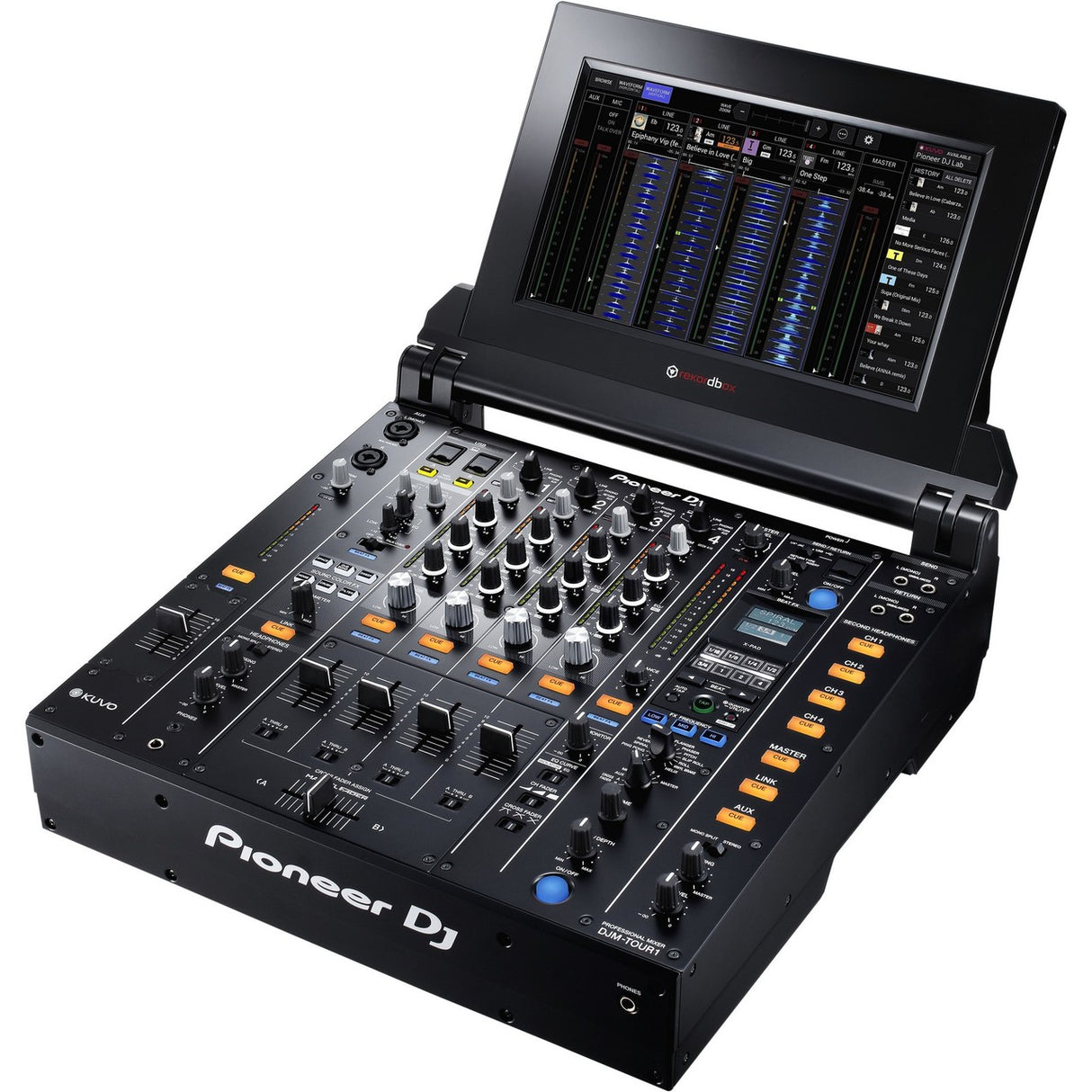

Pioneer DJM-TOUR1 Foldout Touch Screen 4 Channel TOUR Digital Mixer

The DJM-TOUR1 delivers the warm high-resolution sound you're used to, and adds pro-grade audio components to scale up for any size of event. It even features an AES/EBU digital output so you can connect directly to front of house with no loss of sound quality, and 2 independent headphone sections that let you monitor and cue tracks separately.

Key Features

• A 32-bit D/A convertor, made by ESS Technologies, delivers incredibly low noise and distortion even at super-high volumes
• The AES/EBU digital output lets you connect directly to the PA, regardless of its positioning
• 13-INCH FOLD-OUT TOUCH SCREEN
• A 5-port LAN hub means you can connect up to 5 players or laptops to the DJM-TOUR1
• 2 independent headphone sections let you and another DJ cue tracks at the same time without hearing each other's input
• Hook up your choice of external devices including drum machines, effectors, synths and samplers using XLR/TRS combination Aux-in

Technical Specifications

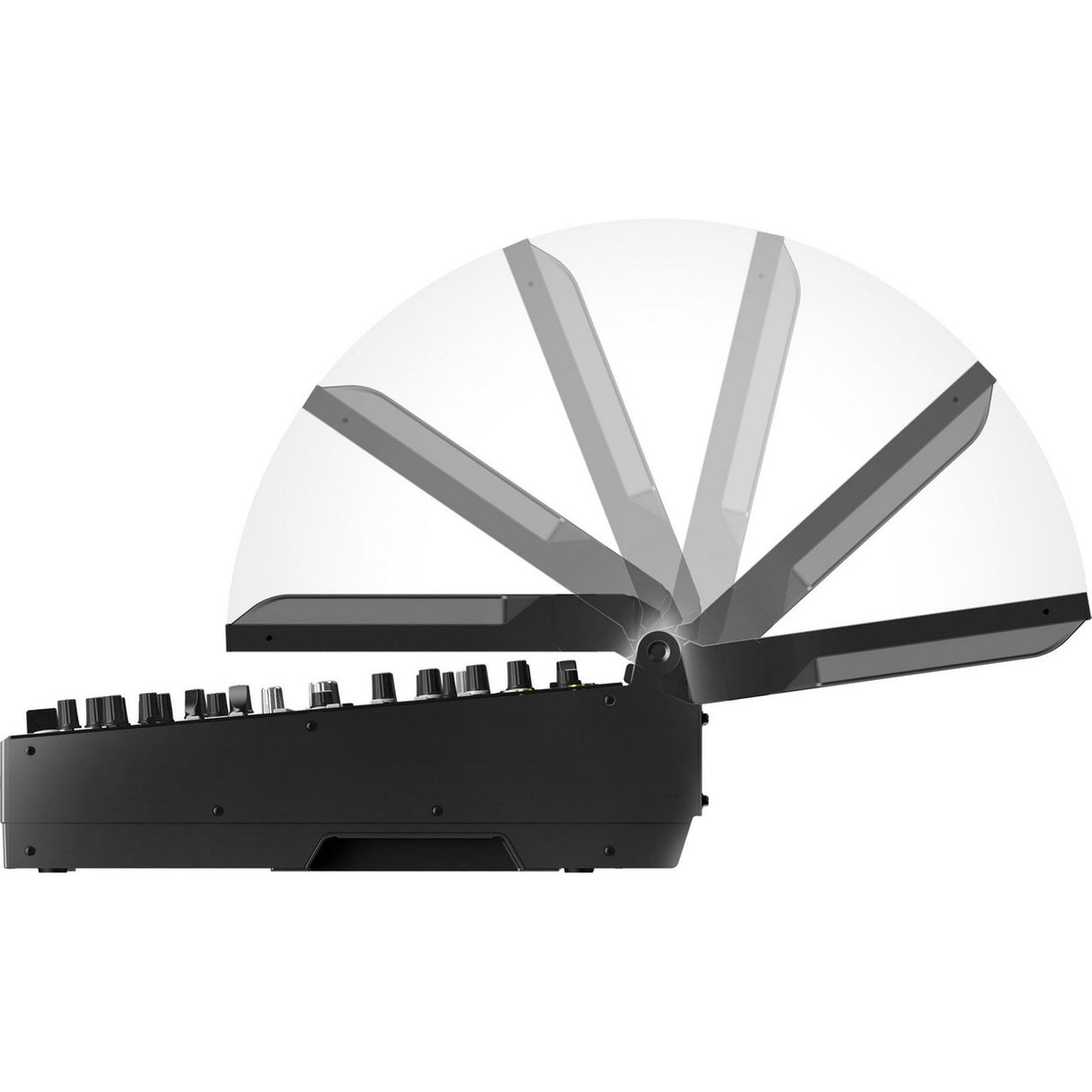

Dimensions (with fold-out screen)
When upper display part is closed (W x D x H): 445.2 x 451.6 x 179.1 mm
When upper display part is upright at 90 degrees (W x D x H): 445.2 x 457.8 x 418 mm
When upper display part is fully open (W x D x H): 445.2 x 694.5 x 203.1 mm
Weight
35.49 lb
Frequency Range
20 - 40,000 Hz
Sampling Rate
96 kHz
A/D Converter
24 bit
D/A Converter
32 bit
S/N Ratio Line
105 dB
S/N Ratio Phono
88 dB
S/N Ratio Mic
79 dB
Distortion
< 0.005 % (LINE)
Power Consumption
66 W
Channels
EQ/ISO
3 band
EQ/ISO Range
Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -? ~ +6 dB
Performance Control
Channels
4
Sound Color FX
Crush
Dub Echo
Filter
Noise
Sweep
Space
Beat FX
Delay
Echo
Filter
Helix
Phaser
Ping Pong
Pitch
Slip Roll
Spiral
Reverb
Roll
Trans
Vinyl Brake
Crossfader Type
Magvel Fader
Fader Curve
3
Mic Connection
XLR / 1/4-inch Jack Combo
1/4-inch TRS Jack
Talkover
3 Position Switch

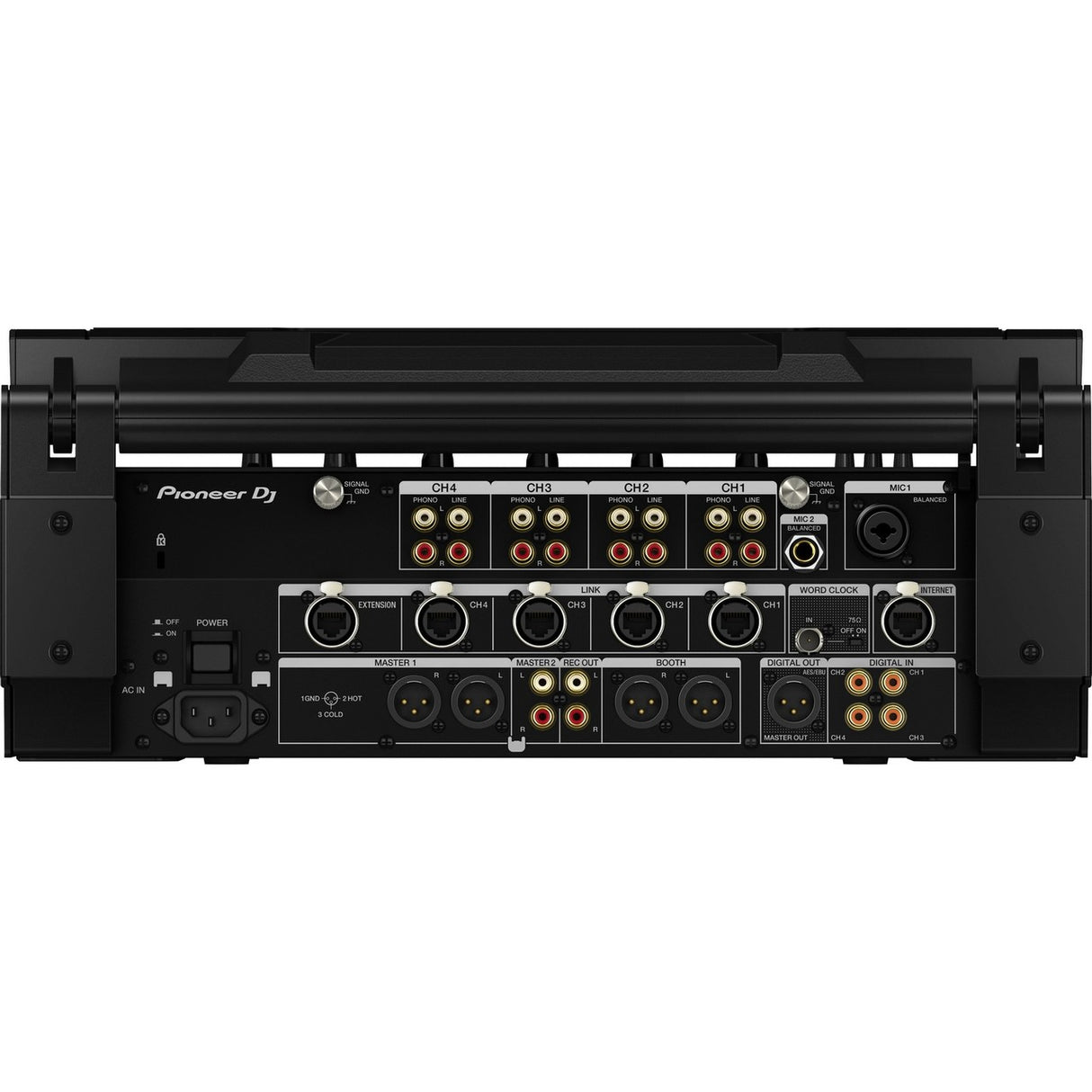

Inputs
4 Digital (Coaxial)
4 CD/LINE (RCA)
4 PHONO (RCA)
1 AUX (XLR, 1/4 inch TRS Jack)
2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack)
1 Word Clock (BNC)
Send/Return
1 SEND (1/4-inch TS jack)
1 RETURN (1/4-inch TS jack)
LAN
6
USB
2 USB B ports
1 USB A port
Outputs
2 MASTER (XLR, RCA)
1 BOOTH (XLR)
2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 HEADPHONE MONITOR (1/4 inch Jack)
1 REC (RCA)
1 Digital (XLR)
