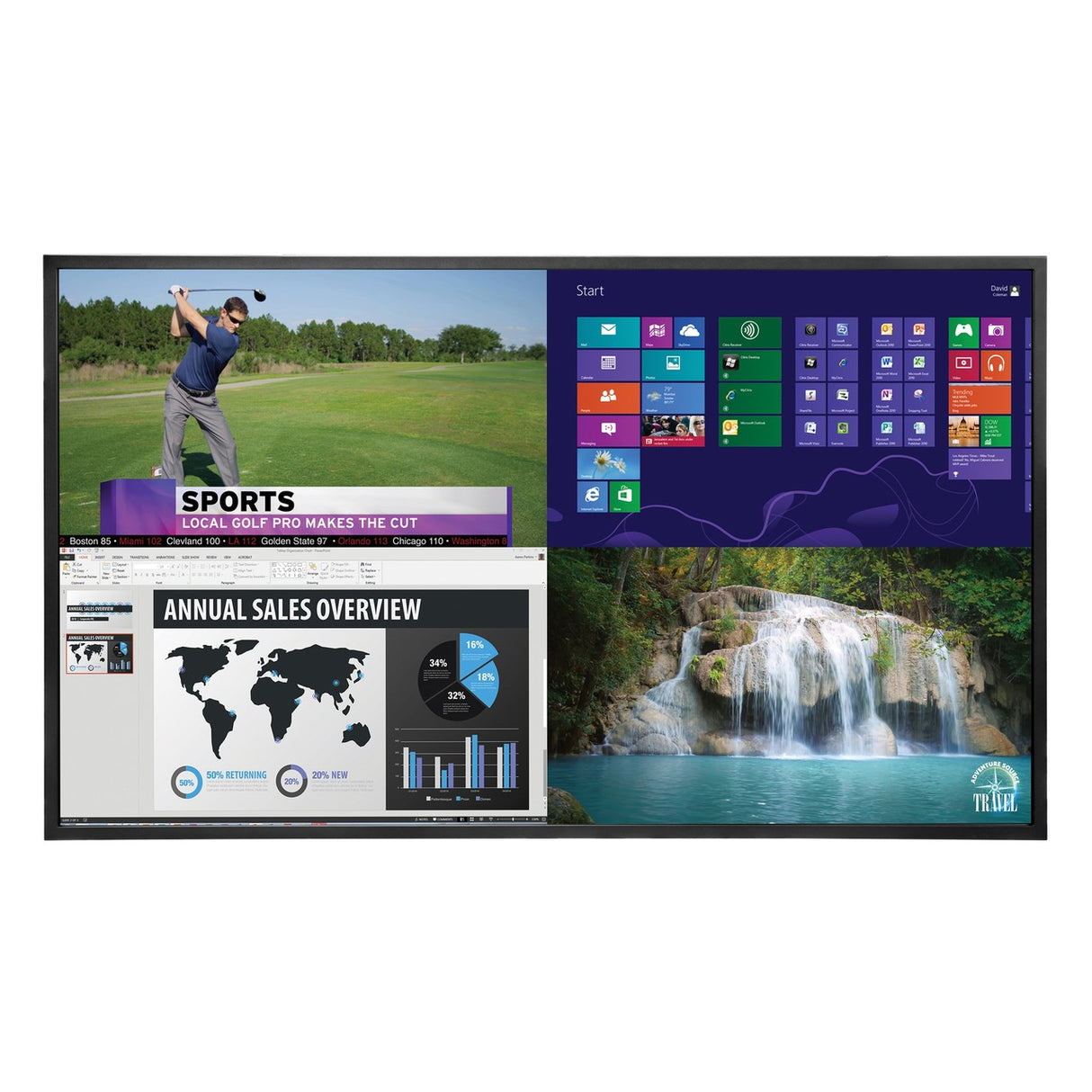

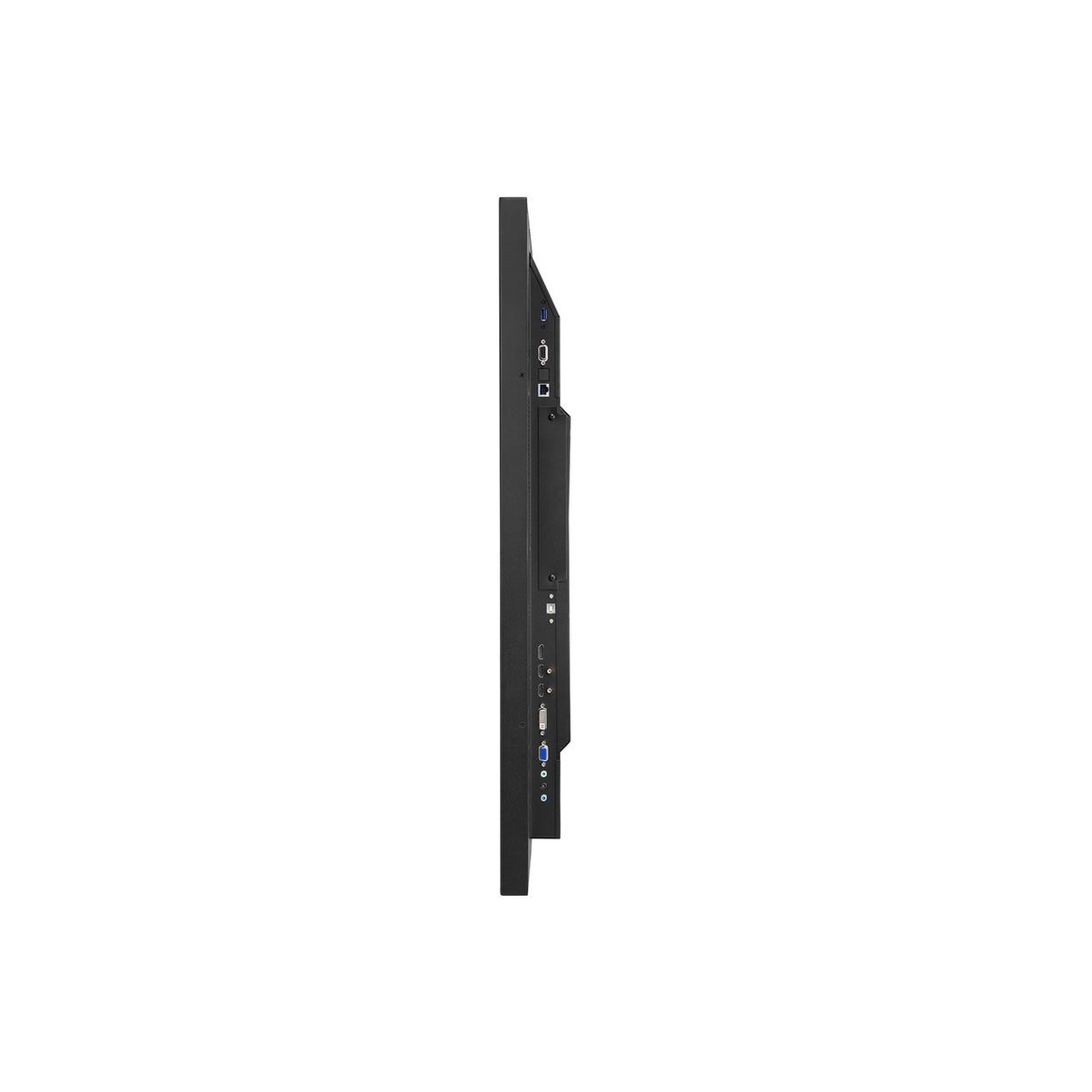

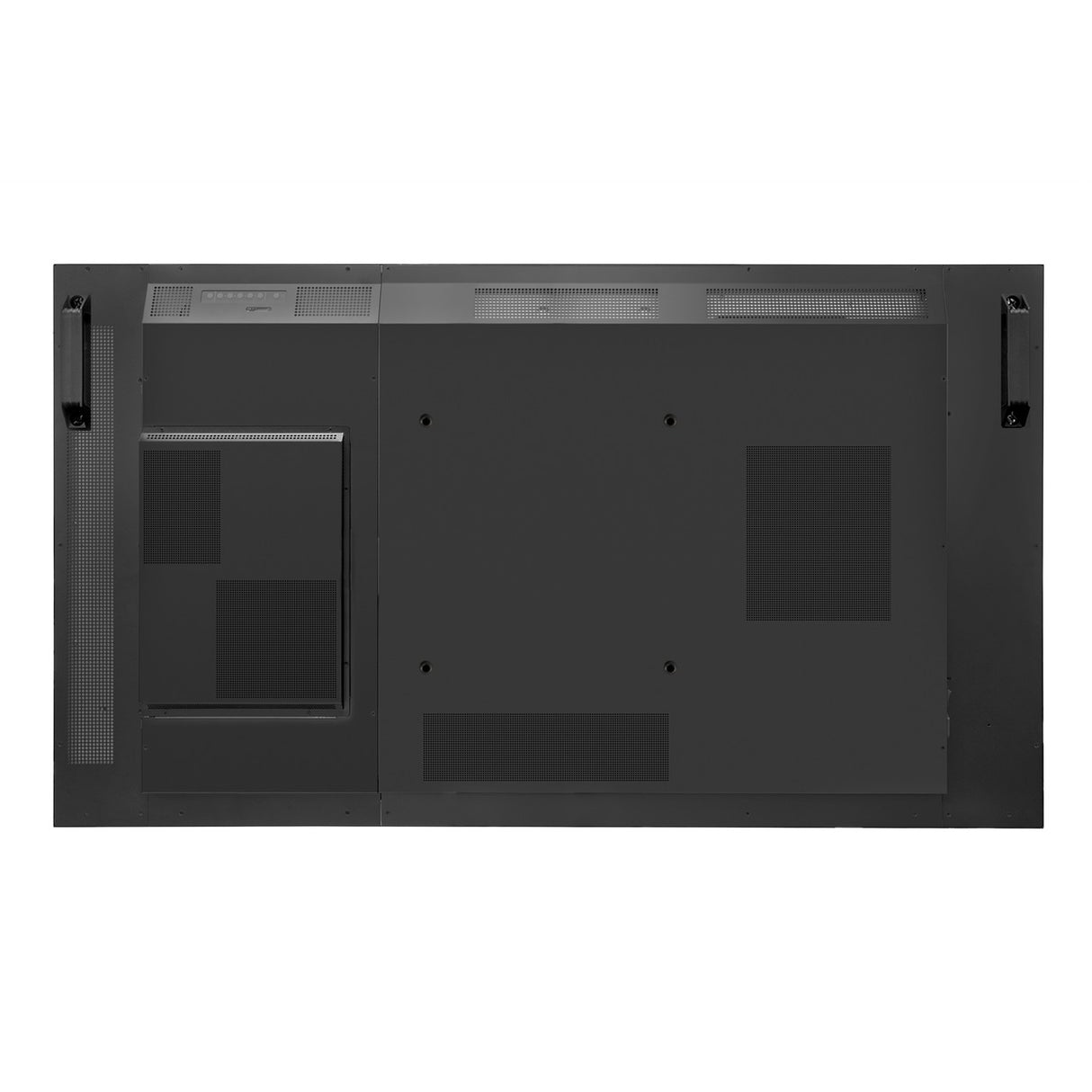

Planar EP6524K 58 Inch UHD 4K LCD EP Series Display
Planar EP6524K 58 Inch UHD 4K LCD EP Series Display
Planar EP6524K 58 Inch UHD 4K LCD EP Series Display
The Planar EP6524K display offers best-in-class 24x7 reliability with the stunning image quality of 4K resolution. The Ultra HD 65" display has multi-source viewing capability, supports 4K@60Hz through both HDMI and DisplayPort, is HDCP 2.2 compliant and can be oriented in landscape or portrait. It comes fully loaded with advanced features that matter most to digital signage and other commercial applications, such as an expansion slot supporting Intelās Open Pluggable Specification (OPS) and built-in speakers. The Planar EP6524K delivers superior performance and reliability for demanding public venue, corporate and control room operations.
Key Features
- 65 in. (diagonal)
- Designed for 24x7 operation
- Built-in speakers and OPS slot
- Supports landscape and portrait
- 4K UHD 2160p
Technical Specifications
Product Name
EP6524K
Planar Part Number
997-9252-00
Display Resolution
Ultra HD (3840 x 2160)
HD format
4K UHD 2160p
Screen Size
65 in. (diagonal)
Aspect Ratio
16:9
Display Technology
Direct-lit LED LCD
Display Active Area
56.2" x 31.6" (1428.5mm x 803.5mm)
Viewing Angle (typ)
178
Backlight
LED
Brightness (typ)
500 nits
Response Time (typ)
8 ms ms
Frame Rate
60Hz
Contrast Ratio (typ)
4000:1
Pixel Pitch
0.372mm x 0.372mm
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
External Connections
DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1, OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1
Modes
3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz
Multi-Source Views
PiP, Dual, Quad
Display Control
IR, RS-232, LAN, Keypad
Cabinet Dimensions (W x H x D)
57.7" x 33.1" x 3.4" (1465.7mm x 841.3mm x 85.5mm)
Cabinet Dimensions with Handles (W x H x D)
57.7" x 33.1" x 3.9" (1465.7mm x 841.3mm x 99.6mm)
Orientation
Landscape/Portrait
Bezel Width
0.7" (16.8mm)
Weight
86 lbs (39 kg)
Weight (Shipping)
105 lbs (48 kg)
Audio Output
PC Line Out, S/PDIF
Speakers
10W x 2 built-in
Enclosure
Metal, Industrial
Auto Brightness Control
Ambient light sensor
Mounting
VESA: 400mm x 400mm
Fanless
Yes
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
170W (standby: <0.5W)
Operating Temperature
0 to +40C (32 to 104F) up to 3000m
Humidity
20 - 85% RH (non-condensing)
Options / Features
OPS slot, On/Off scheduling, Presets, TAA compliant
Approvals
FCC Class A, CE, cTUVus
Warranty
3 years Advance Exchange
Recommended Usage
Up to 24x7
In the Box
EP6524K display, power cord, HDMI cable, IR cable, remote control, and cable clamps
UPC
810689004578
