Planar PCT2435 24-Inch Touch Screen Monitor

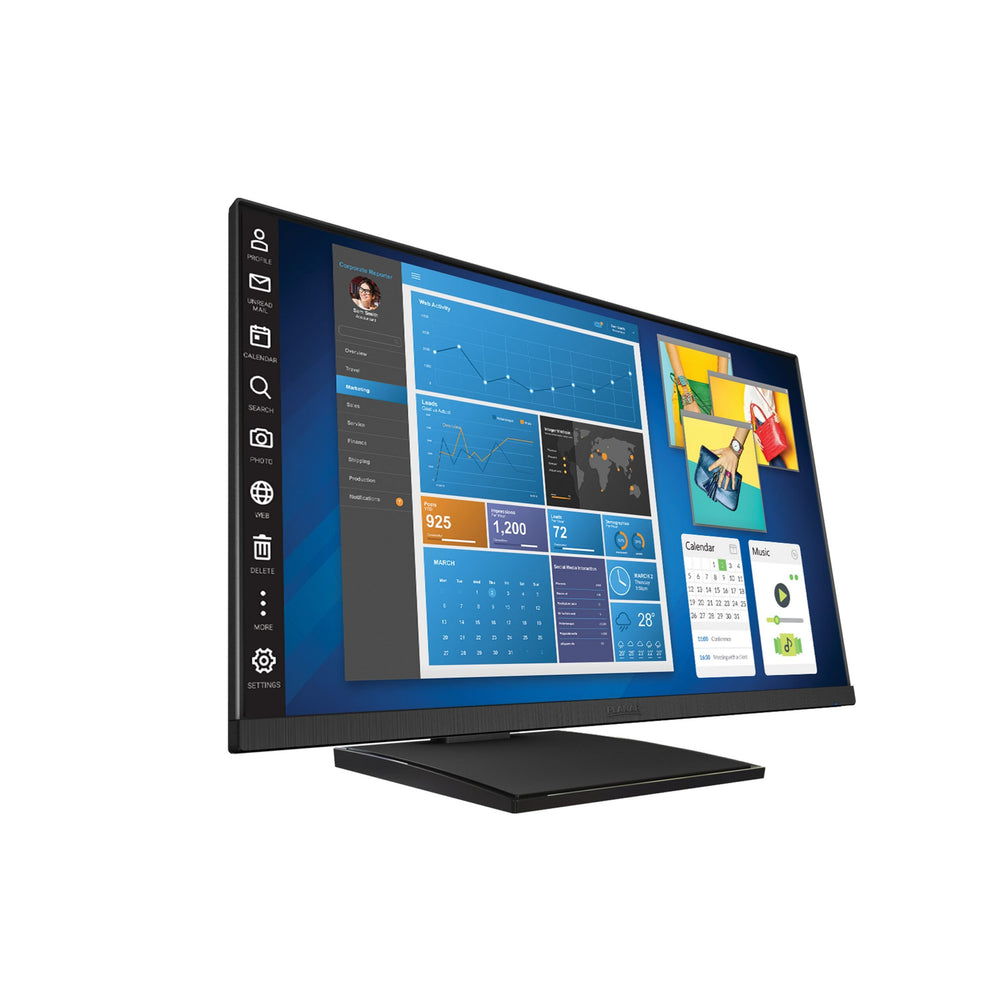

The Planar Helium PCT2435 is a 24" Full HD resolution (1920x1080) widescreen IPS LED backlit LCD touch screen desktop monitor with 10-point simultaneous multi-touch capability, integrated speakers, USB 3.0 hub and dual-hinge desk stand.
Multi-Touch Technology

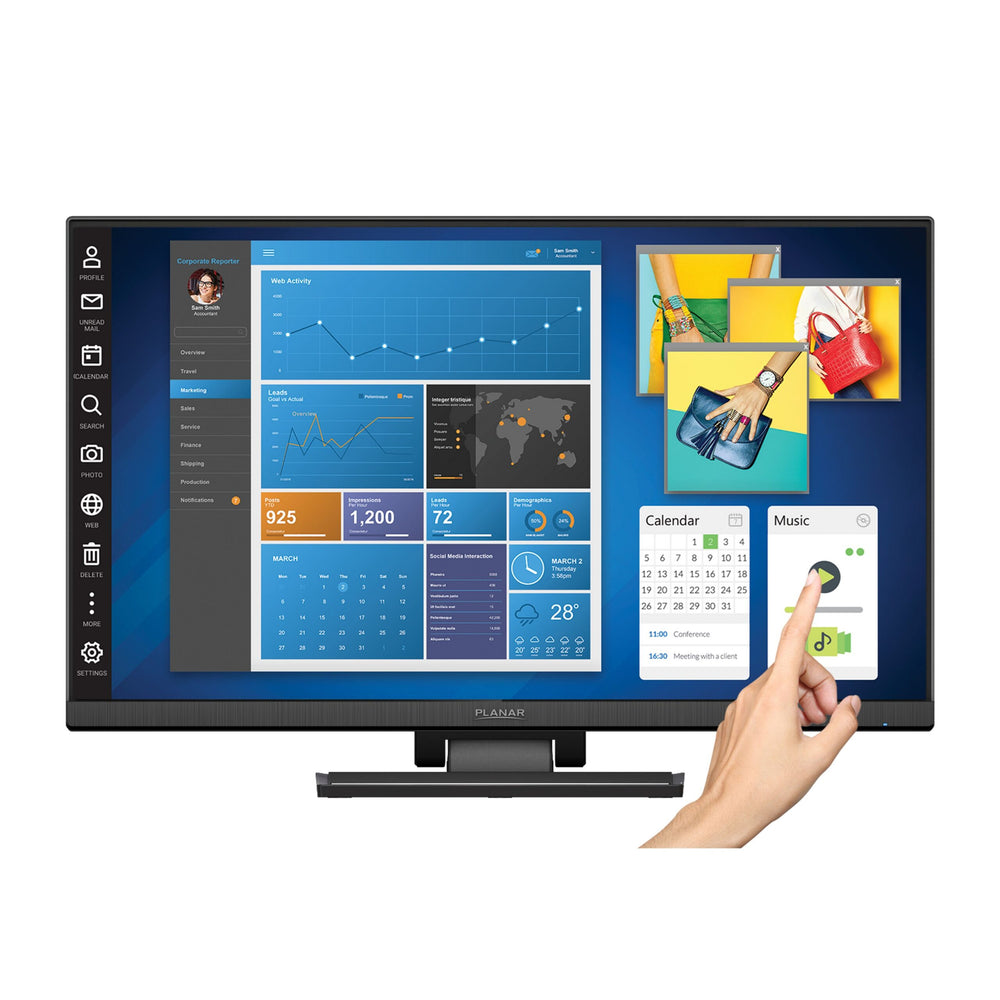

Using projected capacitive technology, the Planar Helium PCT2435 registers up to 10 simultaneous touch points using either a finger or a passive stylus. With this interactive technology, the Planar Helium PCT2435 is extremely fast and accurate when browsing the web, scanning emails or editing photos. The Planar Helium PCT2435 is designed to take full advantage of Microsoft Windows 10, which works seamlessly with multi-touch technology.
Stand & Mount Flexibility

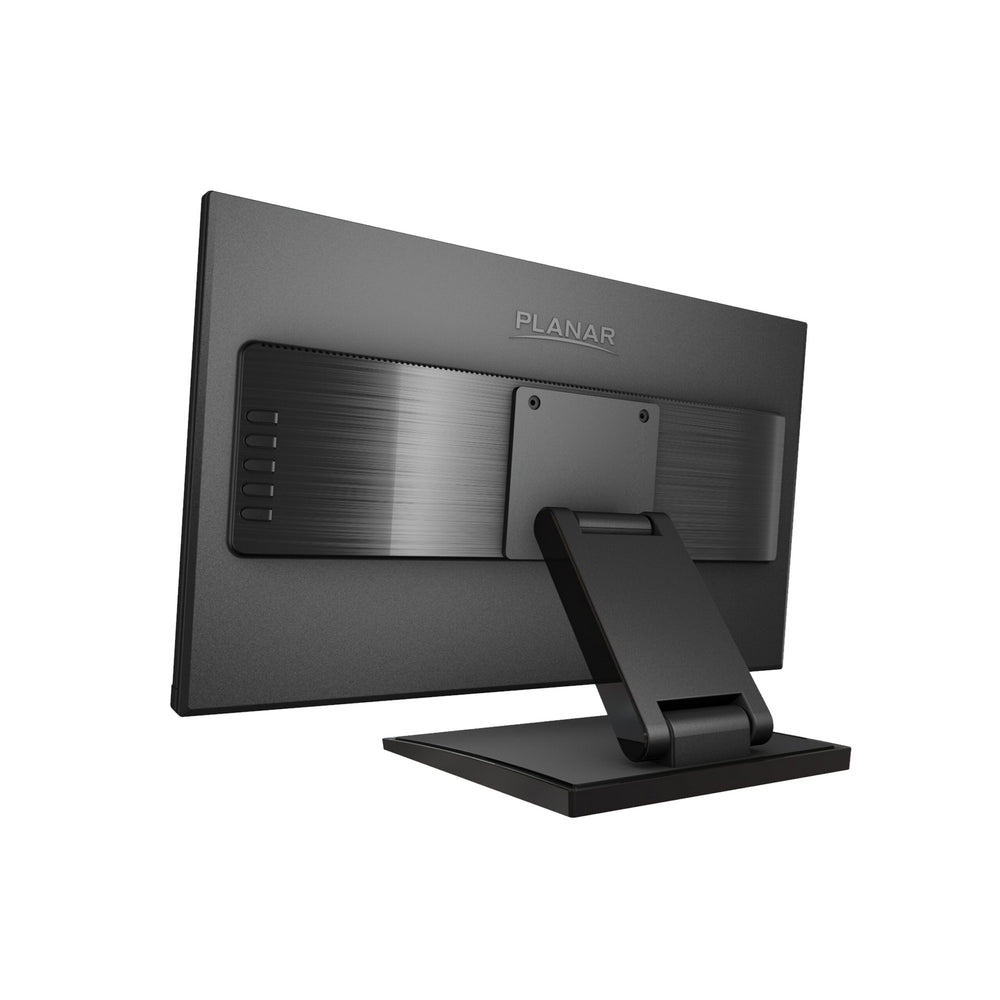

The Planar Helium PCT2435 includes an easy-to-use dual-hinge Helium Desk Stand that offers more flexibility with a tilt up to 90, quickly moving the monitor from a passive viewing position to full touch screen interaction. Whether you are reading emails and manipulating spreadsheets, to scrolling through social media updates and blog postings, the versatile monitor accommodates all with a styling that coordinates with todayās contemporary office designs. Additionally, the Planar Helium PCT2435 is VESA-compatible, making it easy to attach to other mounting options such as a Planar single-arm clamp stand or a Planar fixed monitor wall mount.
Flicker-Free and Blue Light Reduction
Studies have shown that screen flicker fatigues eyes and prolonged exposure to blue light can damage eyes because blue light has a short wavelength and produces a higher amount of energy. The Planar Helium PCT2435 eliminates screen flickering when screen brightness is reduced and adds blue light reduction presets to varying blue light levels depending on the activity. Both of these features enhances visual comfort when viewing the display for extended periods of time.
Inputs & Connectivity
Multiple video inputs (VGA and HDMI), integrated speakers and a built-in USB 3.0 Hub offers more flexibility in the Planar Helium PCT2435 so users to connect other peripherals directly to the monitor rather than connecting cables to a Surface, notebook or a third-party USB Hub.
Technical Specifications
Viewable Size
23.8" diagonal (20.75" horizontal x 11.67" vertical)
Touchscreen Type
Multi-Touch Projected Capacitive (up to 10 touch points)
Number of Touch Points
10
Touchscreen Interface
USB
Contrast Ratio (typ)
1000:1
Viewing Angle (typ)
178 H,V
Response Time (typ)
14 ms
Brightness (w/touchscreen)
212 cd/m2
Brightness (w/o touchscreen)
250 cd/m2
Display Type
IPS Edge-Lit LED LCD
Display Resolution
1920 x 1080, full HD
Aspect Ratio
16:9
Tilt Range
-5 to +90
Palette
16.7 million colors
Pixel Pitch
0.2745 mm
Refresh Rate
56 to 75 Hz (60 Hz recommended)
Dimensions (W x H x D)
21.3" x 14.0" x 9.4" (540.6 mm x 355.11 mm x 238.56 mm)
Dimensions without Stand
21.3" x 14.0" x 1.9" (540.6 mm x 355.11 mm x 46.9 mm)
Panel Depth
1.9" (46.9 mm)
Display Weight
11.7 lb (5.32 kg)
Display Weight (w/o stand)
6.7 lb (3.03 kg)
Shipping weight
14.2 lb (6.44 kg)
Video Inputs
Analog, HDMI
HDCP
Yes
Audio Output
2 speakers, 2W/ch
Compatibility
Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation
External Connections
VGA D-Sub 15-pin, HDMI 19-pin, USB - Type A to B, 3.5 mm audio in, AC Power In, USB 3.0 Hub (1 up, 2 down)
Power Supply
Internal Power Supply (AC power)
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption (typ)
28 W Typical (<1 W standby, <0.5 W off)
Operating Temperature
0 to 40C
Humidity
10 - 85% RH (non-condensing)
Mount
Built-in 100 mm VESA, back
Recommended Usage
Up to 16 hours per day
Service and Support
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement
(US only). Please see warranty document for more details and for replacement procedures outside the US.
Options / Features
Dual-hinge stand, built-in USB Hub -USB 3.0 (1 up, 2 down), Kensington Security Slot
Blue Light Reduction
Yes
Flicker Free
Yes
Product Approvals
cTUVus, CE , FCC B, RoHS
CI-Black-PN
997-9363-00
In the Box
PCT2435 24" Wide Multi-Touch Monitor, Power Cord, VGA Cable, HDMI Cable, USB 3.0 Cable (A to B), Audio-in Cable, User's Guide
