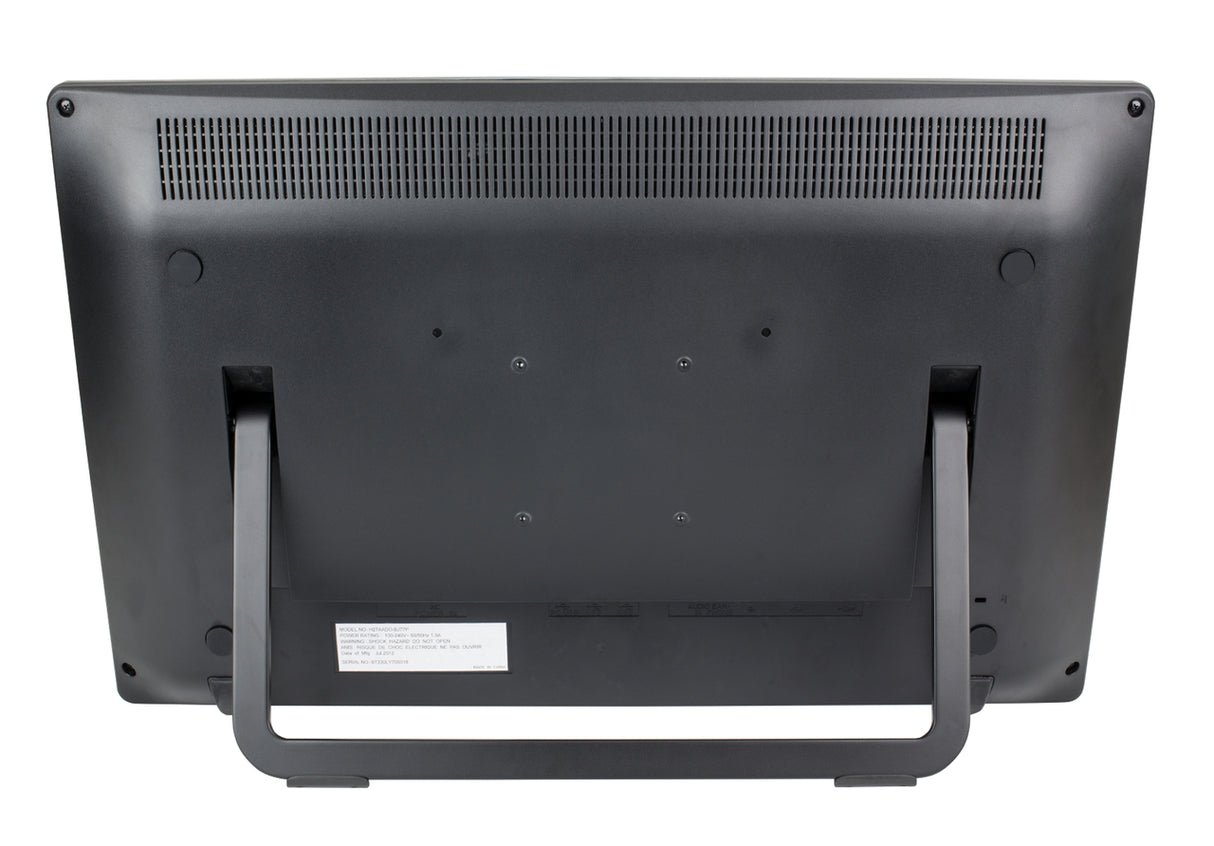

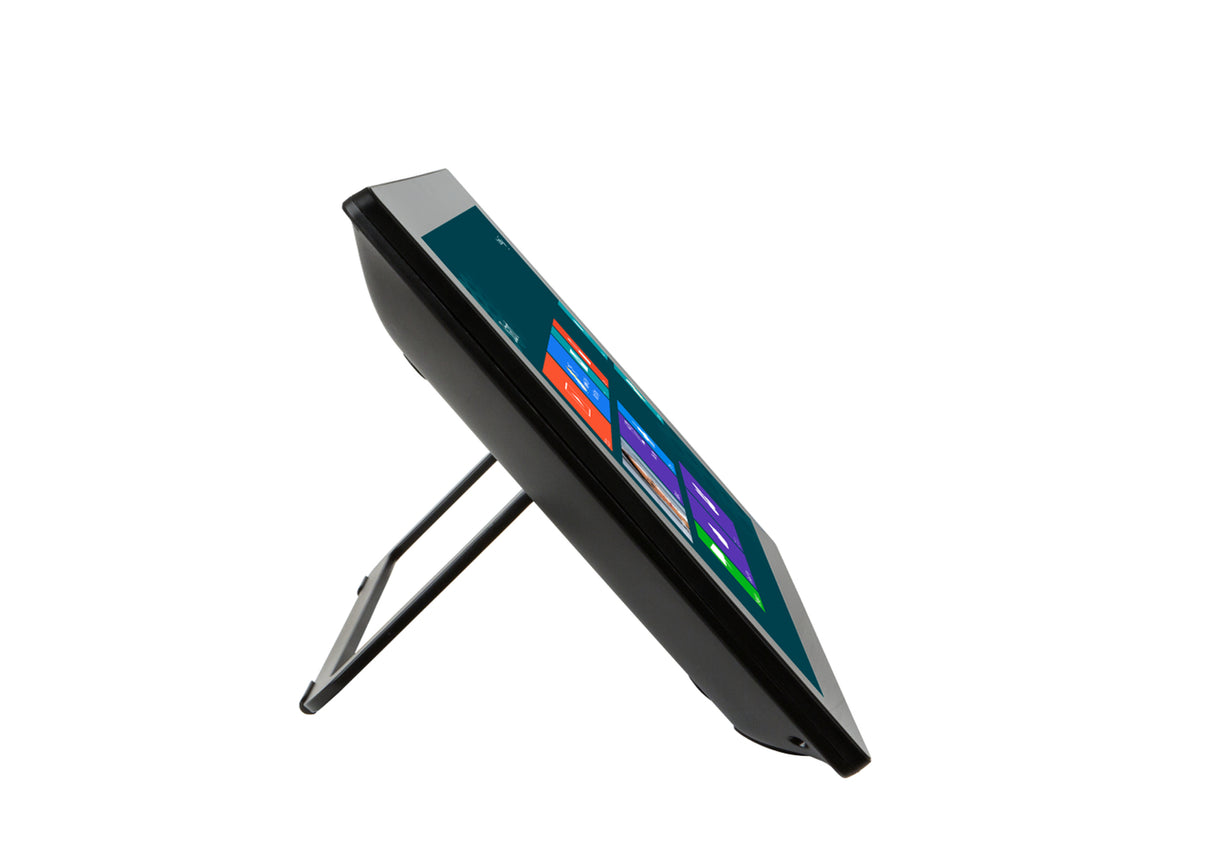

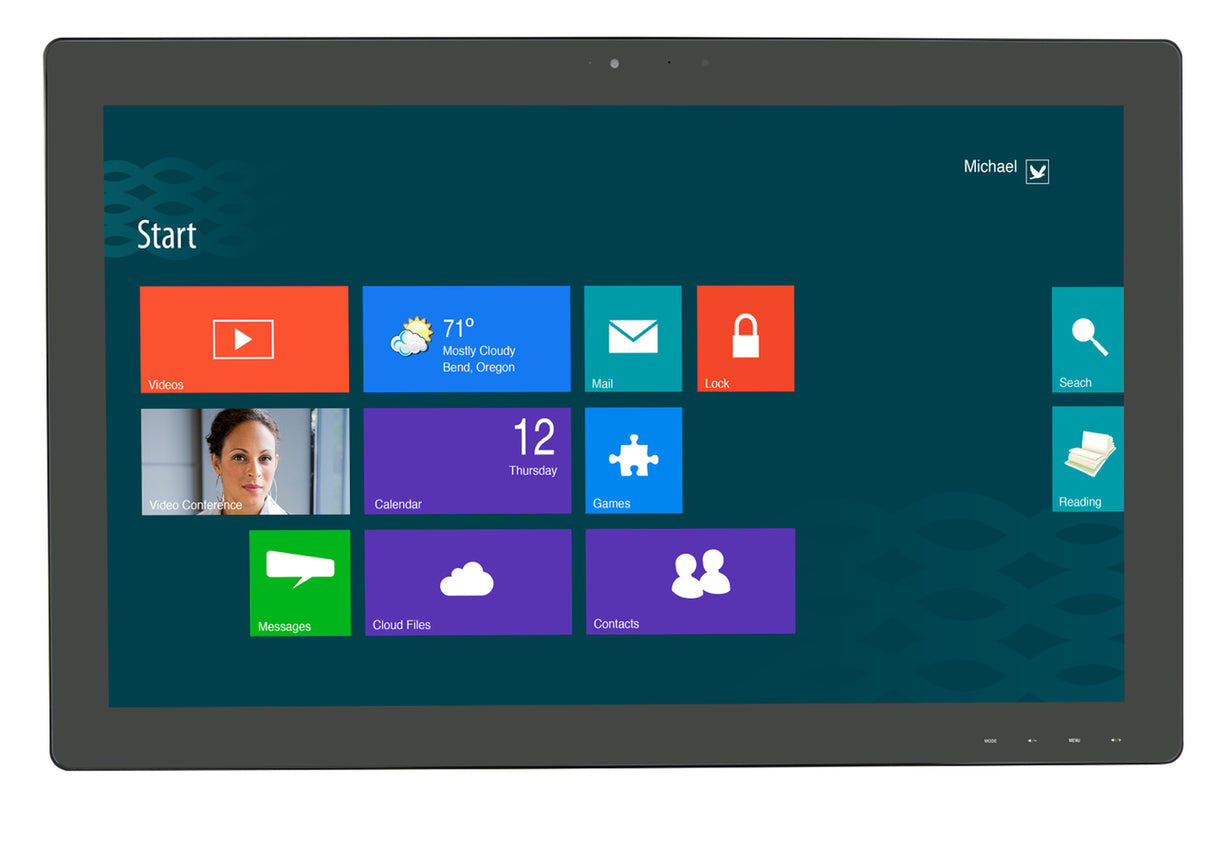

Planar PCT2785 27 Inch Touch Screen LED LCD Monitor

The Planar Helium Series features 24" (PCT2485) and 27" (PCT2785) multi-touch monitors with an edge-to-edge glass surface, wide viewing angles, and a built-in HD webcam. Planar Helium Series monitors includes the sleek, easily-adjustable, and ergonomically-friendly Helium Desk Stand for comfortable and controlled user experiences.

Planar Helium Series monitors are designed to take advantage of the features of Microsoft Windows 10 and are ideal for use by software developers and designers, corporate power-users, enthusiasts, and retailers.

Key Features

• 27" touch screen monitors with 1920 x 1080 resolution
• IPS edge-lit LED LCD
• Smooth edge-to-edge glass surface
• Multi-touch with up to 10 touch points
• Unique, easy-to-use Helium desk stand
• Supports both portrait and landscape orientation
• Built-in HD webcam and microphone

Technical Specifications

Model Name
PCT2785
Part Number
997-6848-00
Display Type
Edge-lit LED LCD
Tilt Range
15 degrees to 70 degrees and Flat
Viewable Size
27" diagonal (23.53" horizontal x 13.23" vertical)
Touchscreen Type
Projected Capacitive - up to 64 simultaneous points
Touchscreen Interface
USB
Contrast Ratio (typ.)
5000:1
Viewing Angle (typ.)
178 degrees H, V
Response Time (typ.)
12 ms
Brightness (typ.)
300 cd/m2
Brightness w/Touch (typ.)
264 cd/m2
Display Resolution
1920 x 1080 - Full HD
Dimensions (W x H x D)
26.48" x 16.47" x 1.95" (672.69 mm x 418.50 mm x 49.65 mm)
Display Weight
TBD

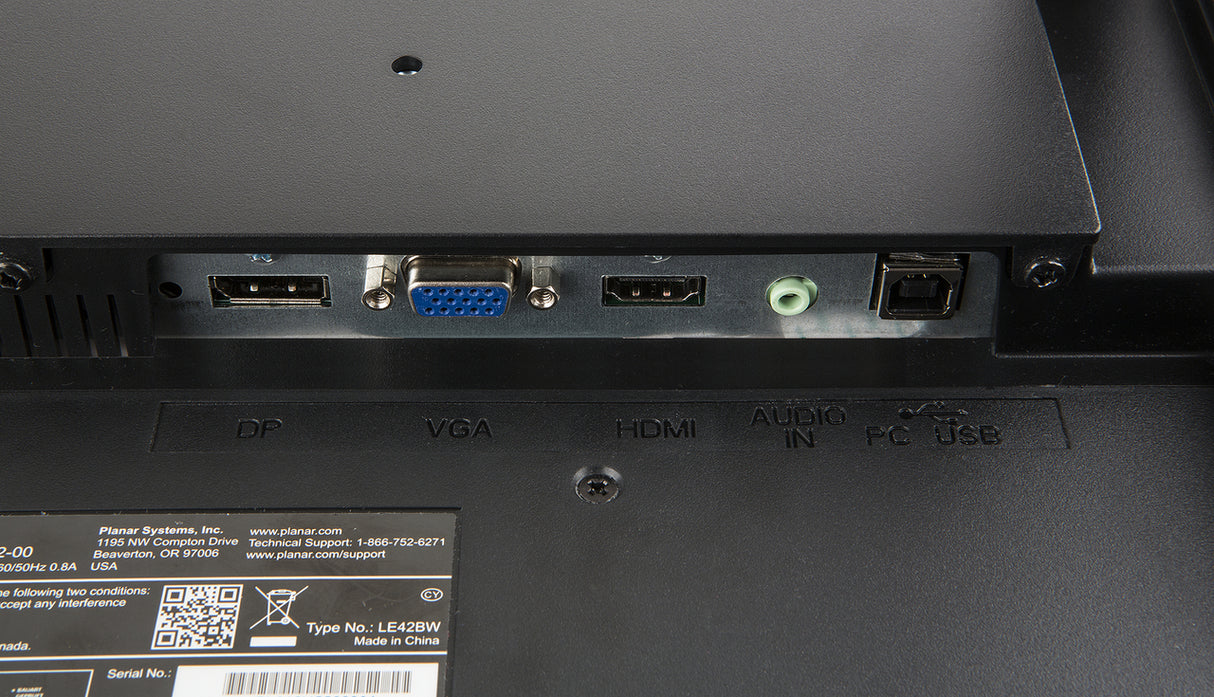

Video Inputs
Analog, HDMI, DisplayPort
Features
"Built-in Full HD WebCam and microphone A Type USB Hub - 2"
Audio Output
3W speakers, Earphone
Compatibility
Windows 7, 8 - HID Compliant - no drivers needed for basic touchscreen operation
Power Supply
Internal
Power Requirements
100-240 VAC (50/60 Hz)
Power Consumption
TBD
VESA Compatible/Location
Built-in 100 x 100 mm VESA, back
Service and Support
3-Year Customer FirstTM Warranty featuring FREE 2-Day Advance Replacement
Product Approvals
UL/c-UL, FCC, CE, RoHS
