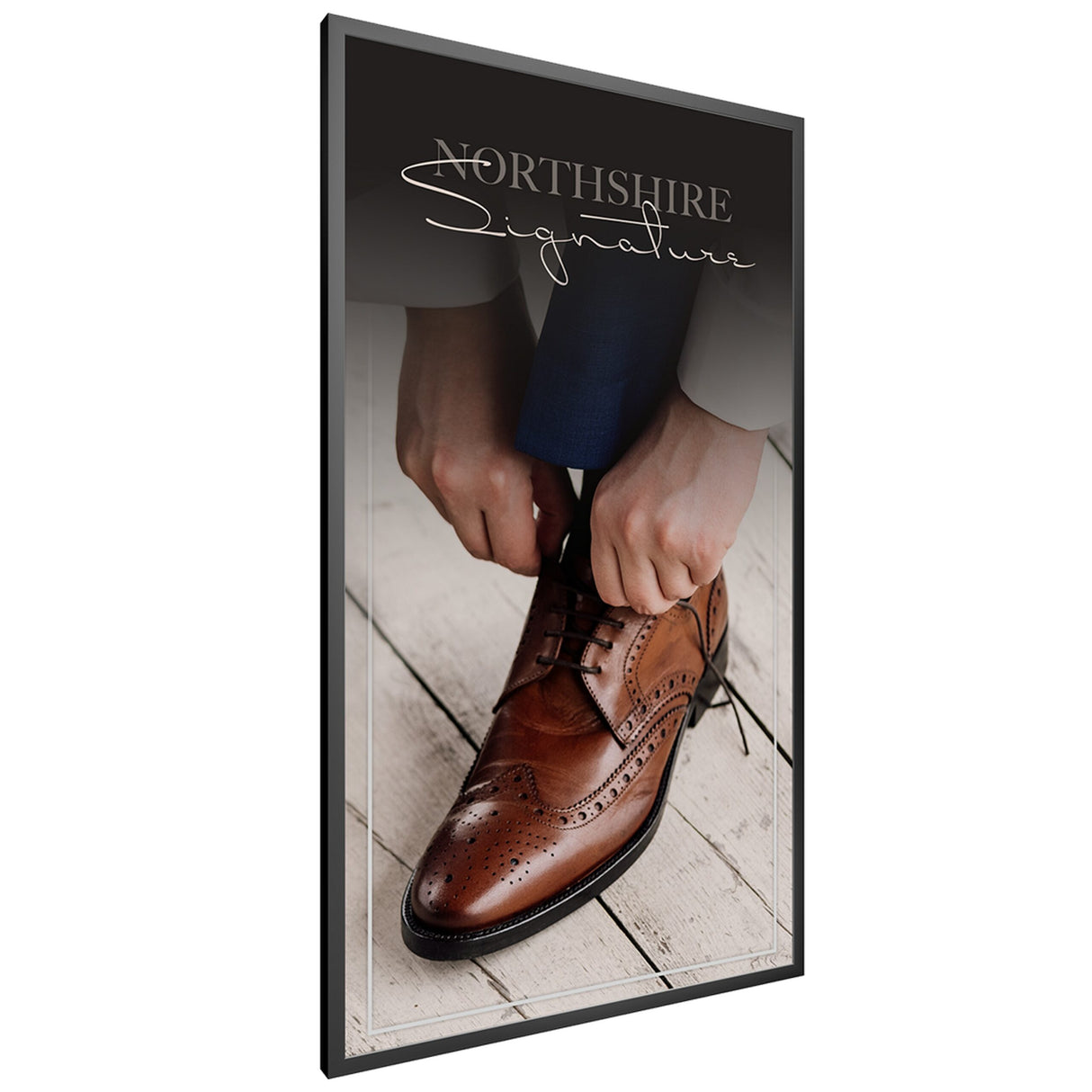

Planar PS5574K 55 Inch LCD Digital Signage Display
Planar PS5574K 55 Inch LCD Digital Signage Display
Planar PS5574K 55 Inch LCD Digital Signage Display
The Planar PS5574K is a 55”, professional large format LCD display that offers a rich feature-set and vibrant 550-nit brightness specifically designed for digital signage applications. With embedded Android for easy content management and Wi-Fi for network connectivity, the Planar PS5574K display is a digital signage essential, ideal for bright, digital signs that will draw eyes in retail, corporate or museum applications.
Technical Specifications
Product Name
PS5574K
Planar Part Number
998-1245-00
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
55 in. (diagonal)
Aspect Ratio
16:9
Display Technology
Direct-lit LED LCD
Haze
2%
Display Active Area
47.6” x 26.8” (1209.6mm x 680.4mm)
Viewing Angle (typ)
178
Backlight
LED
Backlight life (1/2 brightness)
30,000 hours (min)
Brightness (typ)
550 nits
Response Time (typ)
8 ms
Frame Rate
60Hz
Contrast Ratio (typ)
4000:1
Pixel Pitch
0.315mm x 0.315mm
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), VGA x 1
Modes
3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz
Display Control
IR, RS-232, LAN, HDMI-CEC, Keypad, WLAN (WiFi)
Cabinet Dimensions (W x H x D)
49.0” x 28.3” x 2.7” (1245.2mm x 718.5mm x 69.0mm)
Orientation
Landscape/Portrait
Bezel Width
0.7” (16.6mm) top, left and right, 0.8” (19.1mm) bottom
Weight
40.1 lbs (18.2 kg)
Weight (Shipping)
50 lbs (23 kg)
Audio Input
PC Line In
Audio Output
PC Line Out, S/PDIF
Speakers
10W x 2 built-in
Enclosure
Plastic
Mounting
VESA: 400mm x 400mm
Fanless
Yes
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
145W (standby: <0.5W)
Operating Temperature
0 to +40C (32 to 104F) up to 3000m
Humidity
20 - 85% RH (non-condensing)
Operating System
Android 6.0
WiFi
Yes. 802.11 b/g/n, 2.4 GHz
Options / Features
USB playback, logo-free bezel, Kensington security slot, lockable rear keypad
Approvals
FCC Class A, CE, cTUVus, RoHS
TAA Compliance
Yes
Warranty
3 years Advance Exchange
Recommended Usage
Up to 24x7
In the Box
PS5574K display, US and EU power cords, HDMI cable, IR cable, remote control, WiFi antenna, cable clips, QuickStart Guide
UPC
810689006589
