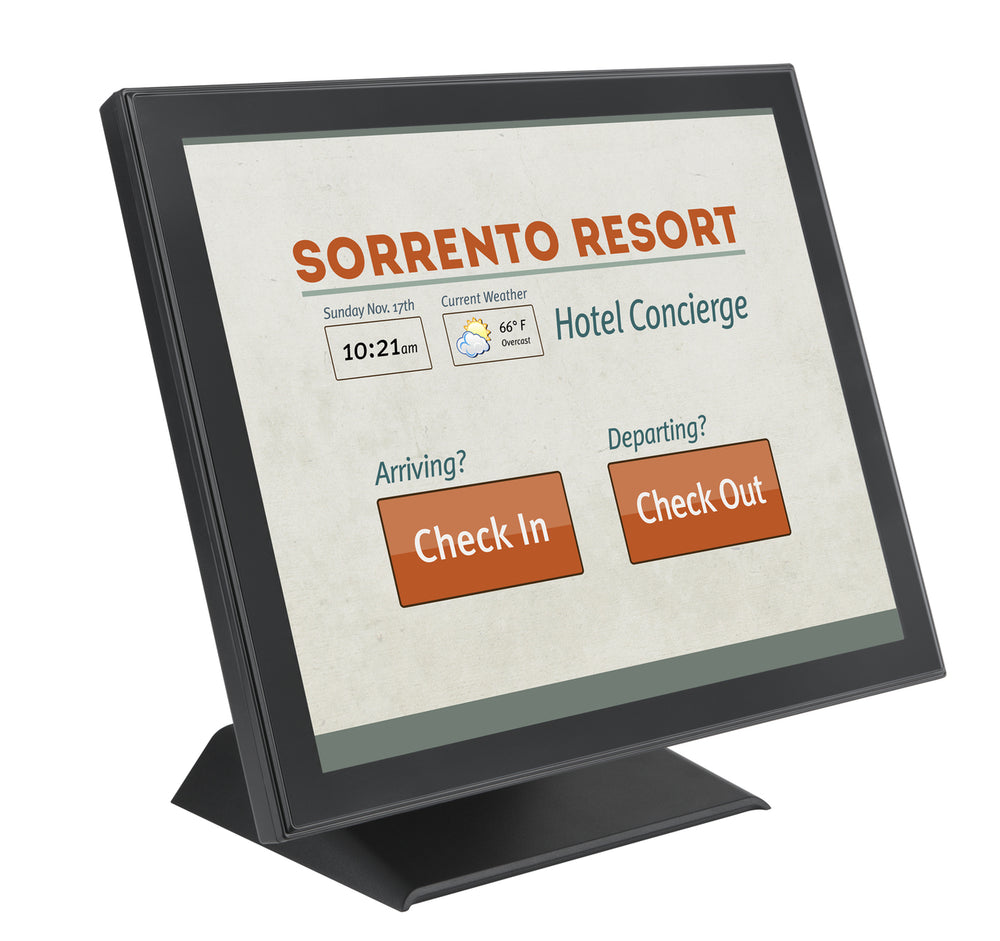

Planar PT1545P 15 Inch Ultra Thin Touch Screen Monitor

For image-conscious retail, hospitality or healthcare applications, the Planar PT1545P 15" touch screen monitor is optimzed with multi-touch interactivity for space-constrained settings. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1545P provides the ultimate interactive experience.

Key Features

• 15" touch screen monitor with 1024 x 768 resolution
• 10 point multi-touch interactivity with no driver loading required

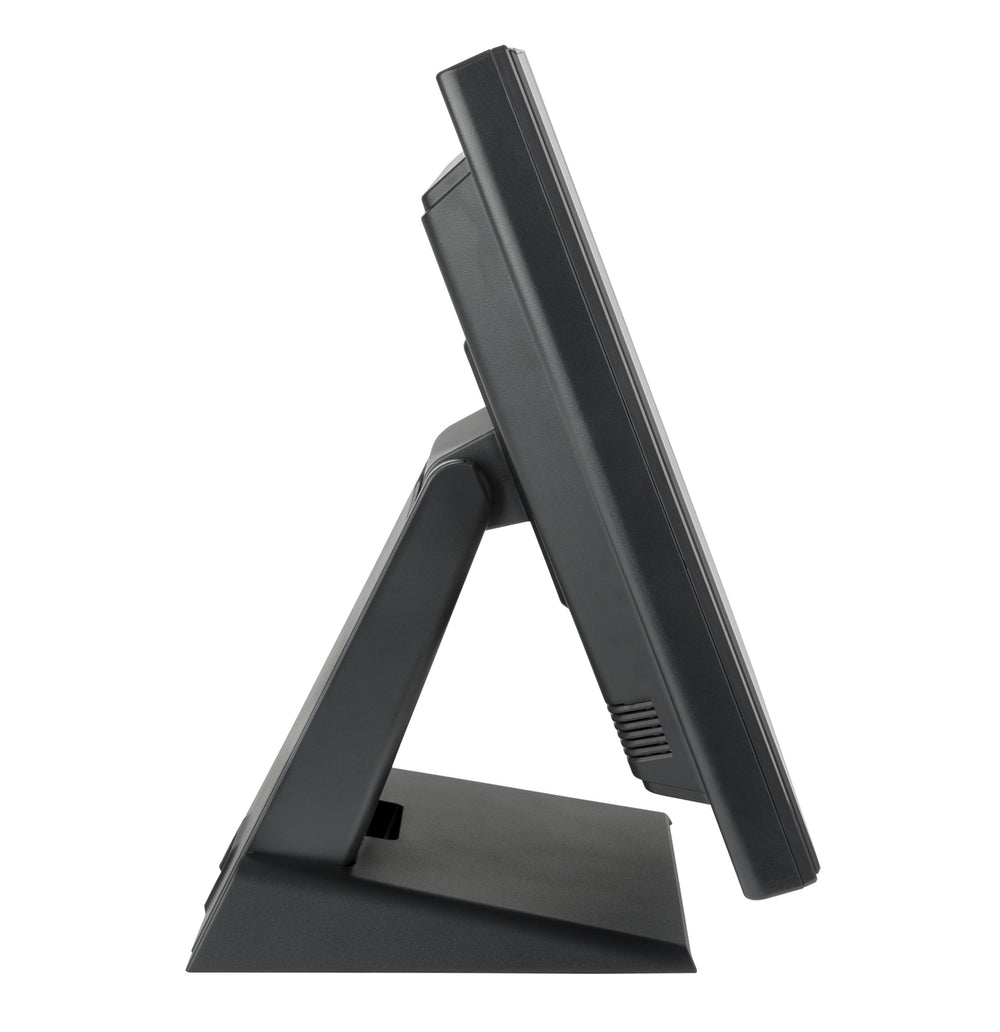

• Easy-to-operate desktop stand allows tilt up to 90 degrees
• Sleek styling and smooth touch operation with edge-to-edge glass surface
• Built-in 100mm VESA

Technical Specifications

Product Name
PT1545P
Planar Part Number
997-7413-00
Viewable Size
15" diagonal (11.97" horizontal x 8.98" vertical)
Touchscreen Type
Projected Capacitive
Number of Touch Points
10
Touchscreen Interface
USB
Transmissivity
N/A
Contrast Ratio (typ)
500:1
Viewing Angle (typ)
140 degrees Horizontal and 125 degrees Vertical
Response Time (typ)
8 ms
Brightness (w/touchscreen)
225 cd/m^2
Brightness (w/o touchscreen)
250 cd/m^2
Brightness (Typical)
N/A
Display Type
Edge-Lit LED LCD
Display Resolution
1024 x 768
Aspect Ratio
4:3
Tilt Range
-5 degrees to +90 degrees
Palette
16.7 million colors
Pixel Pitch
0.297 mm
Refresh Rate
56 to 75 Hz
Panel Depth
N/A
Dimensions (W x H x D)
13.8" x 12.1" x 8.0" (350.8 mm x 306.5 mm x 202.0 mm)
Dimensions without Stand
13.8" x 10.9" x 2.5" (350.8 mm x 275.9 mm x 62.5 mm)
Display Weight
9.9 lbs. (4.5 kg)
Display Weight (w/o stand)
6.4 lbs (2.9 kg)
Shipping weight
14.3 lbs. (6.5 kg)
Video Inputs
Analog
Audio Output
2 speakers, 1W/ch
Compatibility
Windows 8, 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections

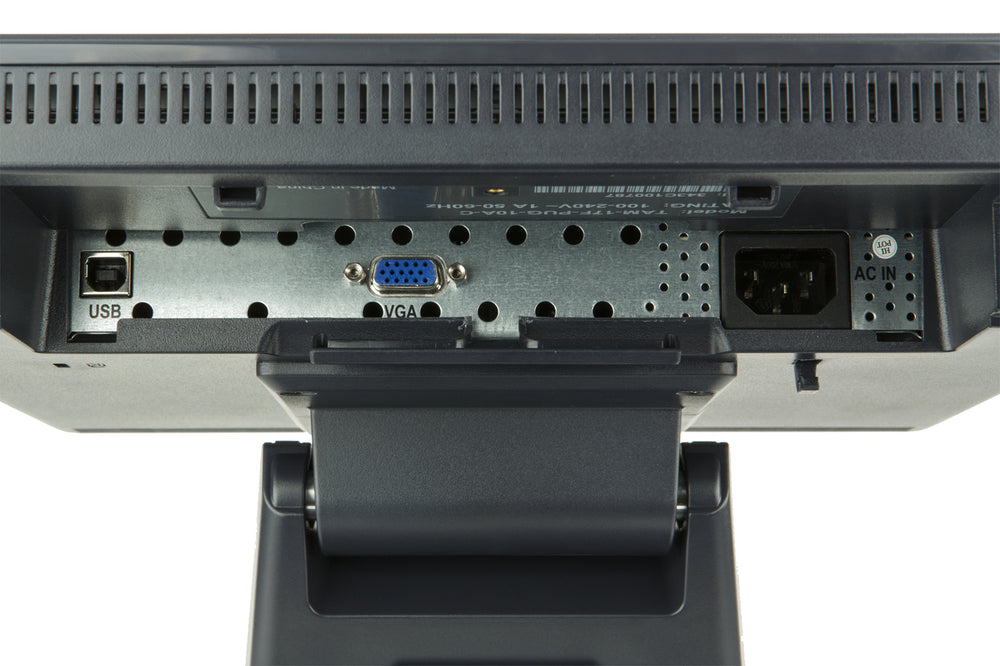

D-sub 15-pin, Type B socket USB, audio-in, AC power-in
Power Supply
Internal
Power Requirements
100-240 VAC, 50/60Hz
Power Consumption (max)
25W ( Operating Temperature
0 degrees to +40 degrees C
VESA Compatible/Location

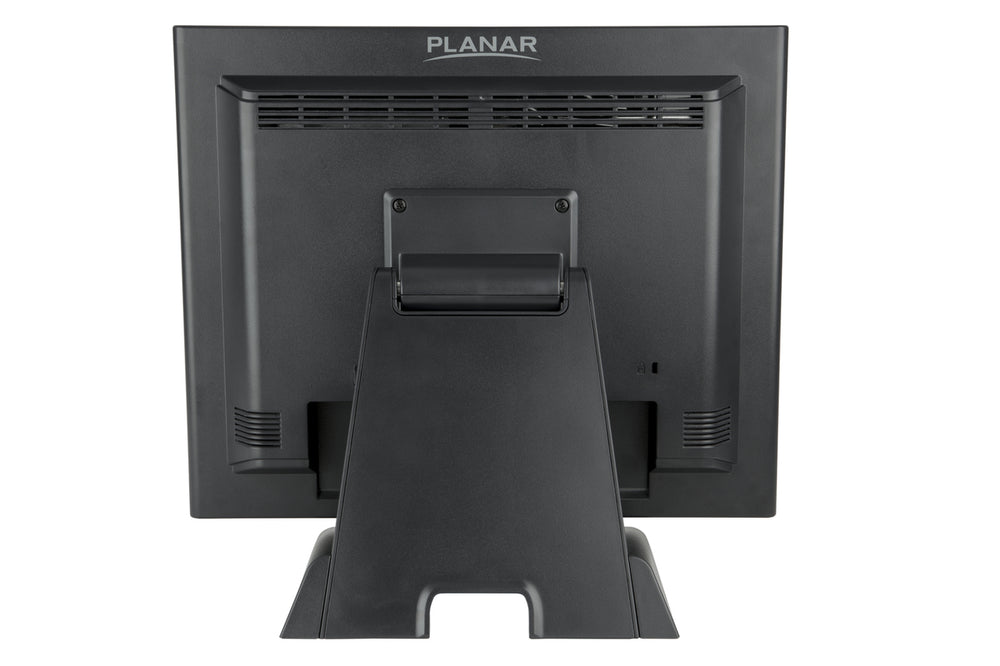

Built-in 100mm VESA, monitor back
Service and Support
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement (US only)
Options / Features
Multi-language On screen display (OSD), Kensington Security Slot
Product Approvals
UL/c-UL, FCC-Class B, CE, RoHS II
CI-Black-PN
997-7413-00
CI-White-PN
N/A
In the Box
PT1545P 15" Touchscreen LCD Monitor, Power Cord, VGA Cable, USB Cable (A to B), Audio-in Cable, User's Guide, Quick Start Guide
UPC
8 10689 00022 8
