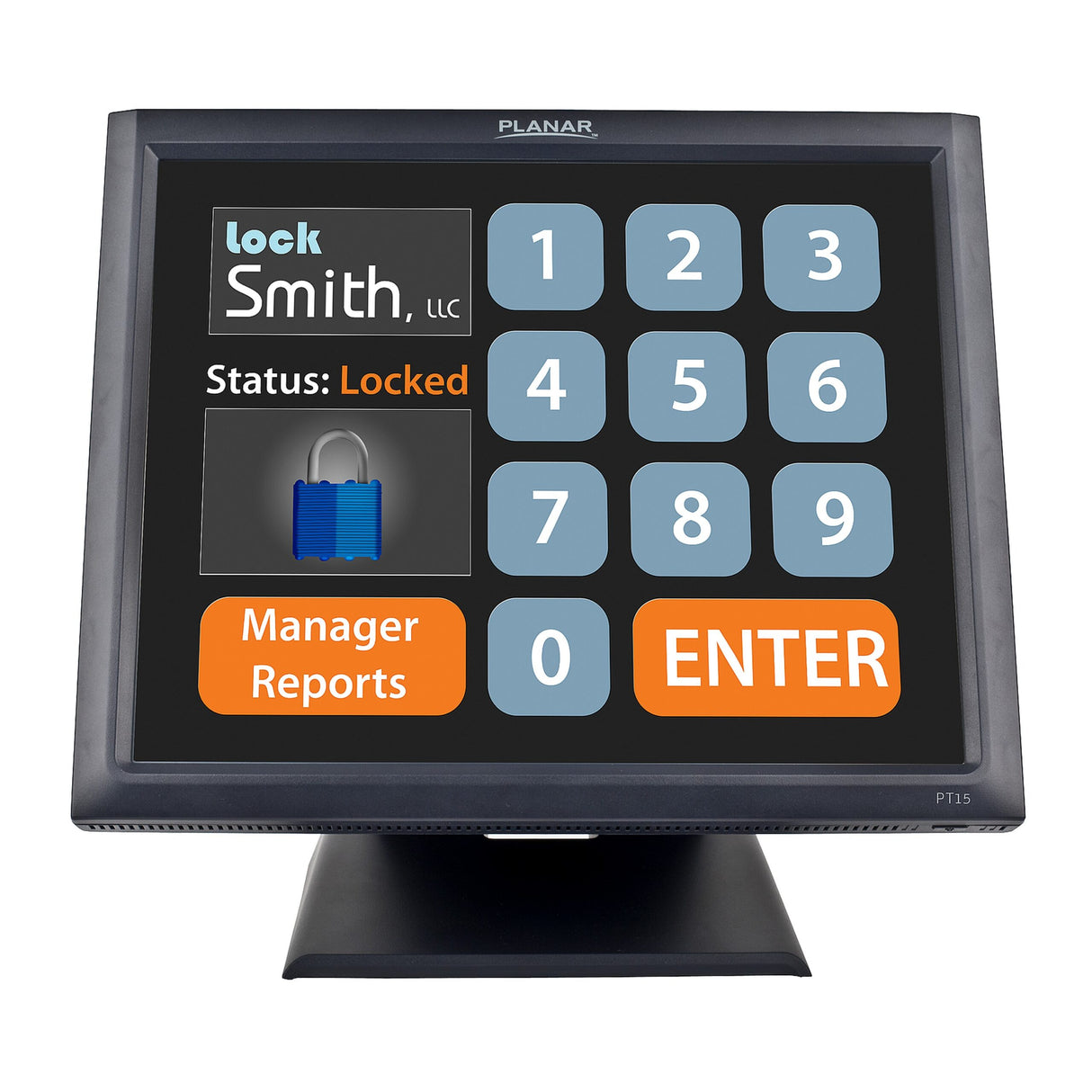

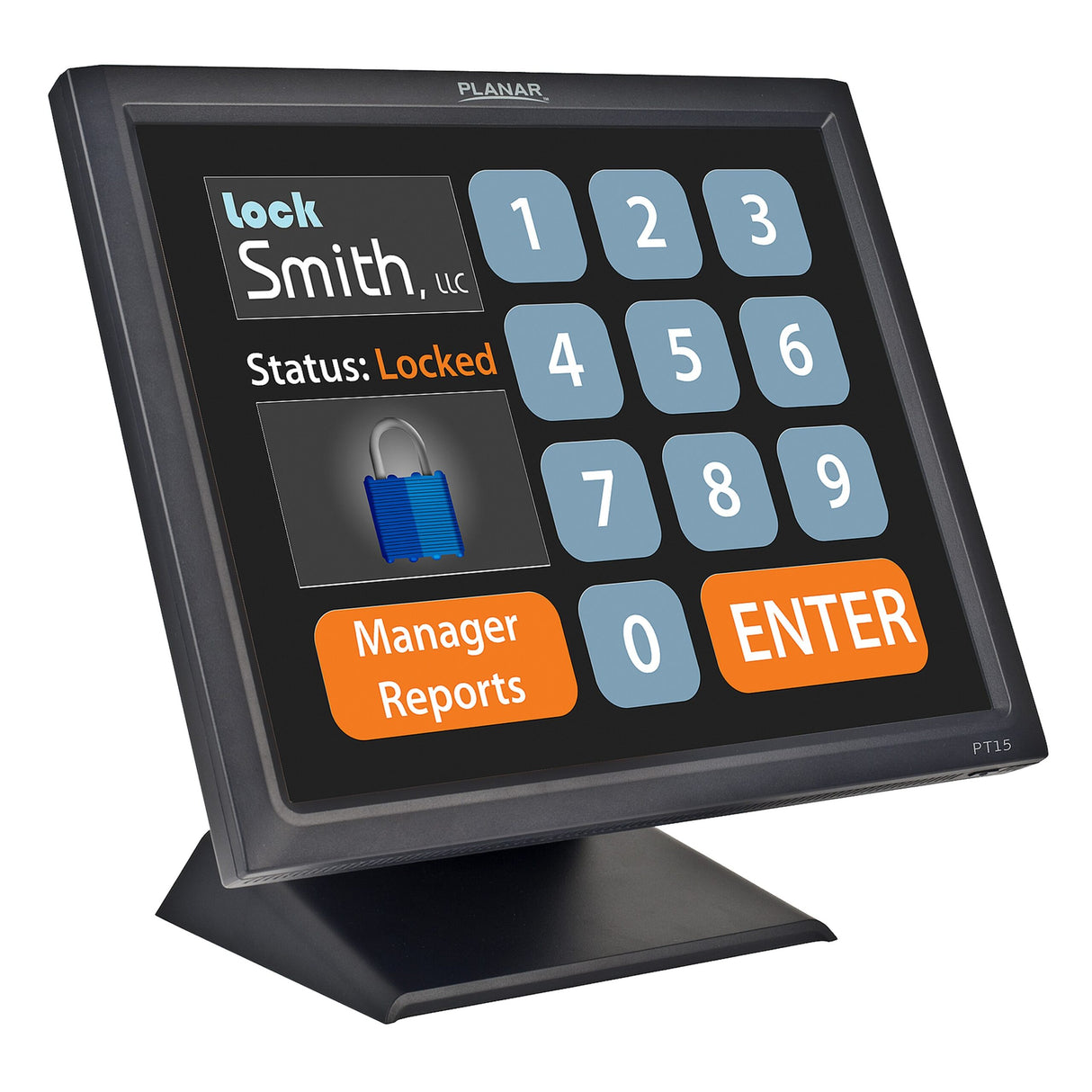

Planar PT1545R 15-Inch Touch Screen Point of Sale Monitor
Easily integrated with a variety of POS, thin client or PC systems, the monitor features 5-wire resistive touch screen with USB touch screen interface, an internal power supply, speakers, and a designed touch enclosure. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

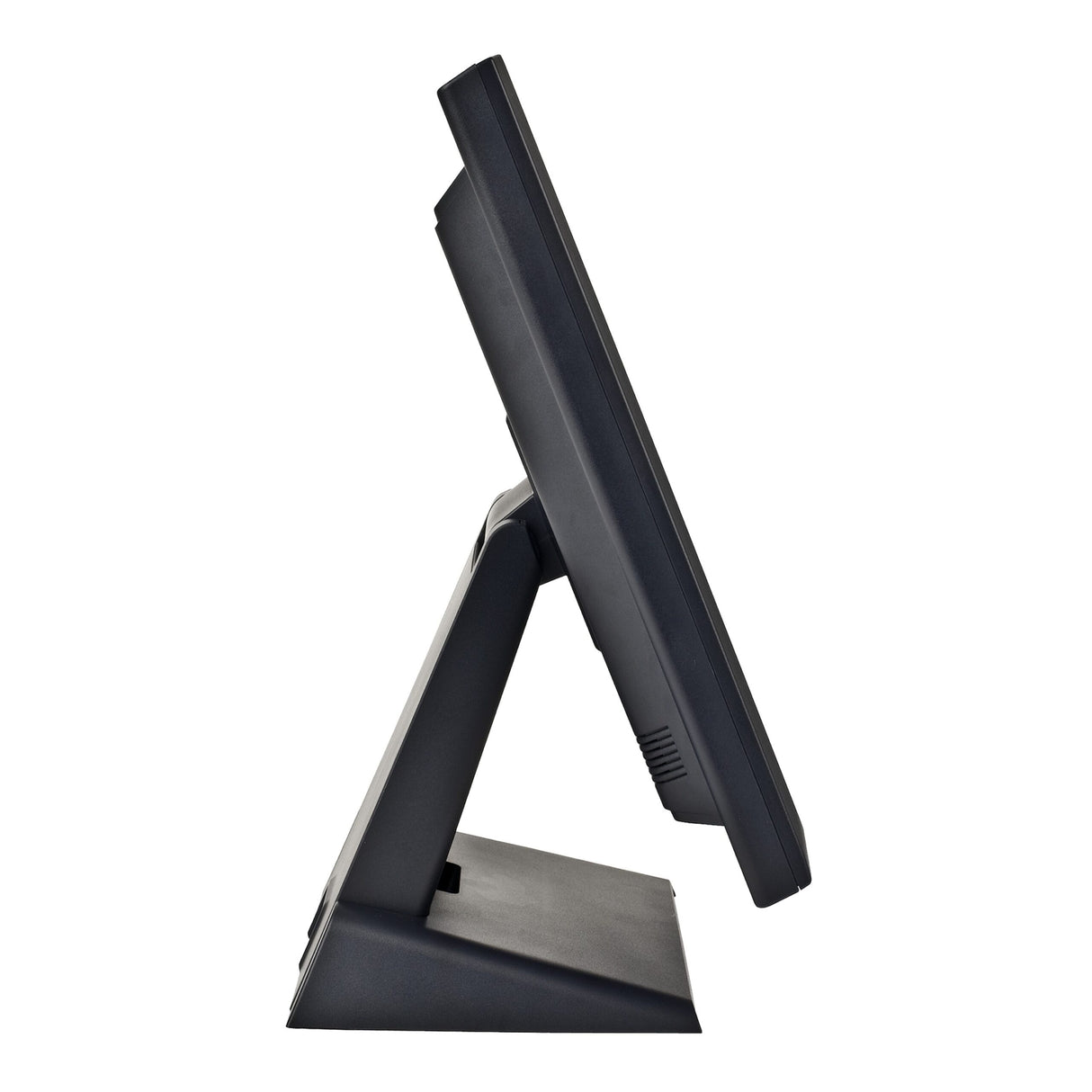

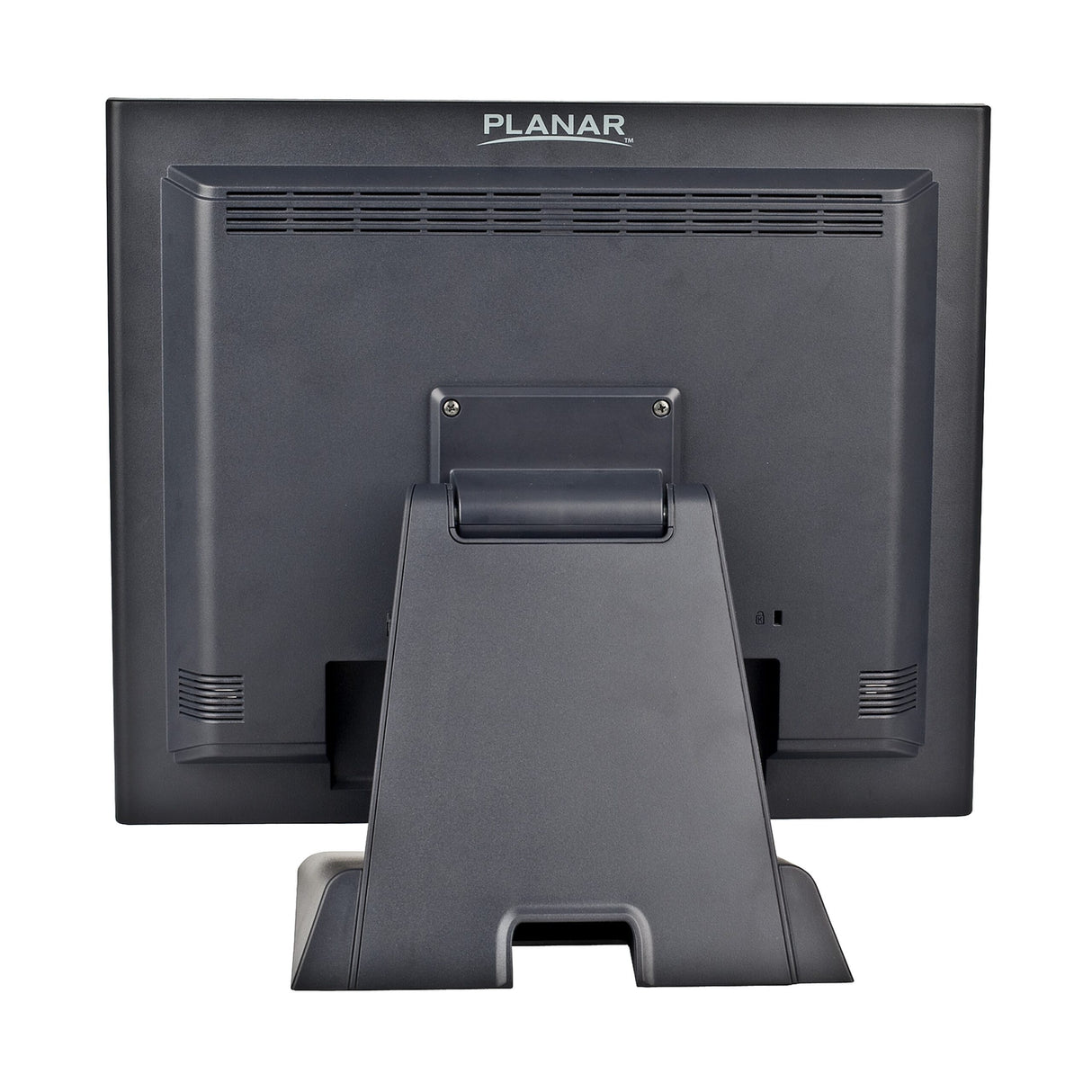

The Planar PT1545R monitor comes standard with a deskstand capable of -5 to 90Ā° tilt range and is compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor.
The Planar PT1545R includes Planarās leading Planar CustomerFirst 3-Year Warranty featuring FREE 2-Day Advance Replacement for 3 full years.
Technical Specifications
Viewable Size
15" diagonal (11.97" horizontal x 8.98" vertical)
Touchscreen Type
5-wire Resistive
Number of Touch Points
1
Touchscreen Interface
USB
Contrast Ratio (typ)
800:1
Viewing Angle (typ)
160Ā° Horizontal and 150Ā° Vertical
Response Time (typ)
8 ms
Brightness (w/touchscreen)
280 cd/m2
Brightness (w/o touchscreen)
350 cd/m2
Display Type
Edge-Lit LED LCD
Display Resolution
1024 x 768
Tilt Range
-5Ā° to 90Ā°
Palette
16.2 million colors
Pixel Pitch
0.297 mm
Refresh Rate
56 to 75 Hz
Dimensions (W x H x D)
13.8" x 12.1" x 8.0" (350.8 mm x 306.5 mm x 202.0 mm)
Dimensions without Stand
13.8" x 10.8" x 2.3" (350.8 mm x 274.8 mm x 59.0 mm)
Display Weight
10.6 lb (4.8 kg)
Display Weight (w/o stand)
7.3 lb (3.2 kg)
Shipping weight
14.8 lb (6.7 kg)
Video Inputs
HDMI, DisplayPort, VGA
Audio Output
Integrated stereo speakers with 1W/channel
Compatibility
Windows 10, 8, 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections

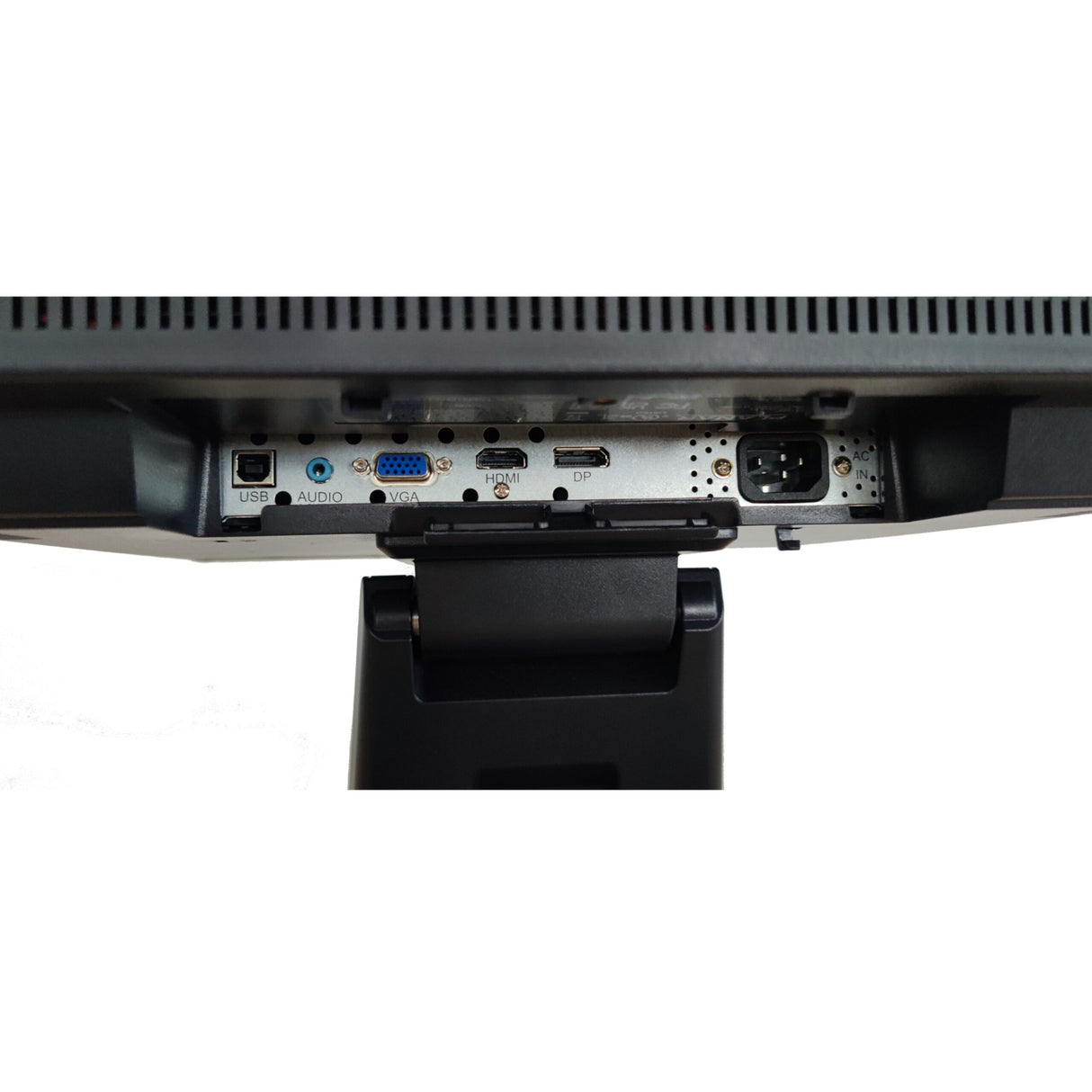

HDMI 19-pin, DisplayPort 20-pin, VGA 15-pin, Type B USB socket, 3.5 mm audio in, AC Power In
Power Supply
Internal
Power Requirements
100-240 VAC, 50/60Hz
Power Consumption (max)
10.6 watts (1.5W standby, 0.3W off)
Operating Temperature
0Ā° to +40Ā° C
Mount
Built-in 100 mm VESA, back
Recommended Usage
Up to 16 hours per day
Service and Support
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement (US only). Please see warranty document for more details and for replacement procedures outside the US.
Options / Features
Anti-glare coating, Multi-language display, On screen display (OSD), Kensington Security Slot
Product Approvals
UL/c-UL, CE, FCC-Class B, RoHS
CI-Black-PN
997-5967-02
In the Box
PT1545R 15" Touchscreen LCD Monitor, Power Cord, VGA Cable, Audio cable, USB Cable (A to B), HDMI Cable, Userās Guide, Quick Start Guide, Cable Cover and Screw
