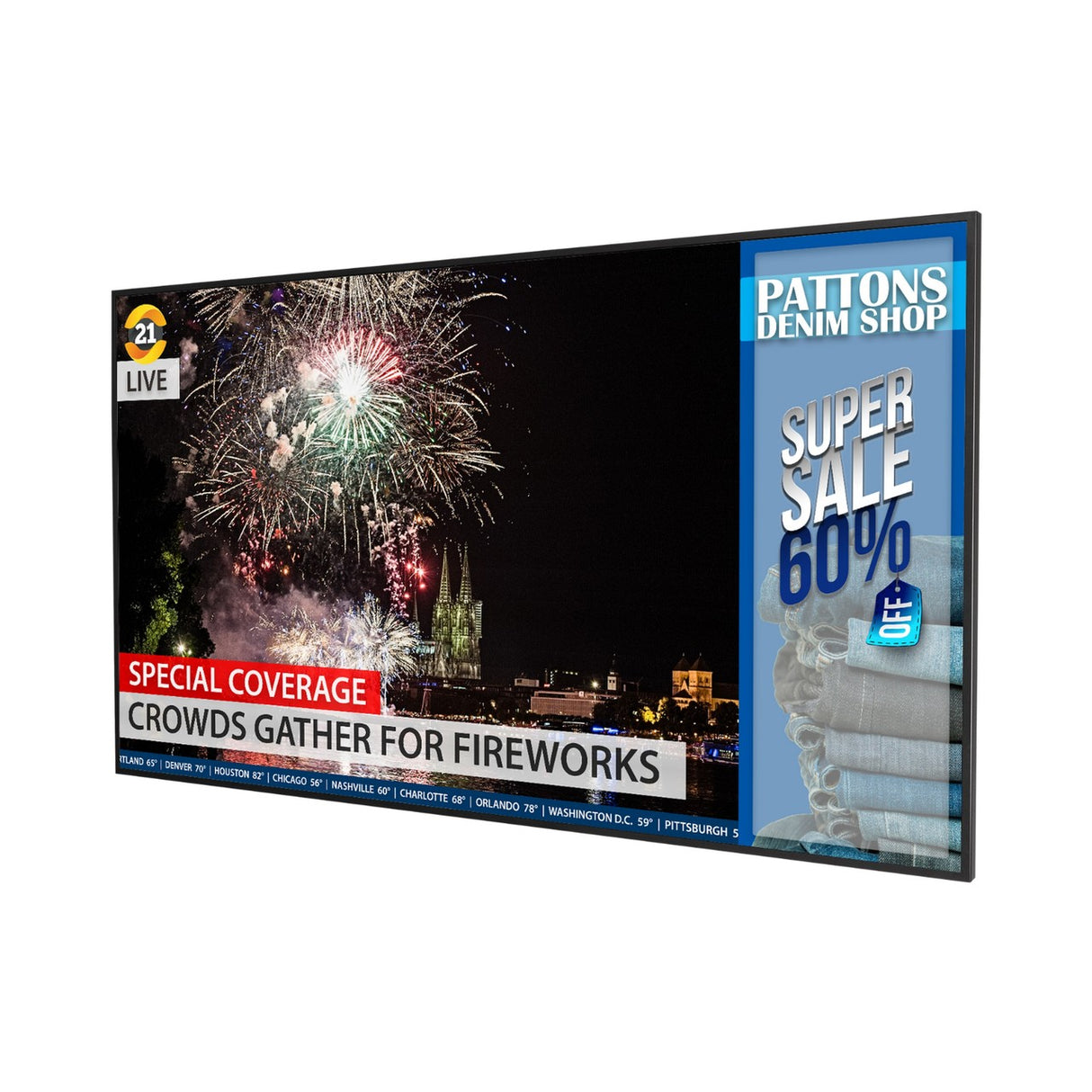

Planar QE8650 86 Inch 4K LCD QE Series Display
Planar QE8650 86 Inch 4K LCD QE Series Display
Planar QE8650 86 Inch 4K LCD QE Series Display
The Planar QE8650 is an Ultra HD resolution (3840 x 2160) LCD display that provides an impressive end-to-end solution for designing, distributing and playing back ultra-high resolution content on a single display or multiple displays within a network, dramatically reducing installation cost and complexity. Available with an embedded media player and cutting-edge 4K @ 60Hz support through DisplayPort 1.2 and HDMI 2.0, the Planar QE8650 is ideal for applications ranging from dynamic digital signage to collaborative meeting spaces.
Key Features
- 86 in. (diagonal)
- Superior 4K video performance and compatibility
- Embedded Planar ContentSmart 4K Media Player and Software
- Landscape and portrait flexibility available for select models
- Designed for 24x7 operation
Technical Specifications
Product Name
Planar QE8650
Planar Part Number
997-8797-00
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
86 in. (diagonal)
Aspect Ratio
16:9
Display Active Area
74.6ā x 42.0ā (1895mm x 1066mm)
Cabinet Dimensions (W x H x D)
75.8" x 43.2" x 3.3" (1926mm x 1097mm x 84mm)
Bezel Width
0.61" (15.6mm) left/right; 0.62" (15.7mm) top/bottom
Brightness (typ)
500 nits
Response Time (typ)
6 ms
Frame Rate
120Hz
Contrast Ratio (typ)
1200:1
Contrast Ratio - Dynamic
20,000:1
Viewing Angle (typ)
178
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
Modes
3840x2160 @ 24/25/30/60Hz; 1920x1080 @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Pixel Pitch
0.429 mm
Weight
126 lbs (57 kg)
Backlight
LED
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
165W (standby: <1W)
Operating Temperature
0 to +35C (32 to 95F) at up to 1500m, 0 to +30C (32 to 86F) at up to 3000m
Humidity
20 - 85% RH (non-condensing)
Approvals
FCC Class A, CE, cTUVus
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
Audio Output
PC Line Out, S/PDIF
Multi-Source Views
Quad only
Display Control
IR, RS-232, LAN, Keypad
Speakers
10W x 2 built-in
Orientation
Landscape/Portrait
Mounting
VESA: 600 x 400 mm
Installed Depth with Optional Wall Mount
6.8ā (173mm)
Fanless
Yes
HD format
4K UHD 2160p
Display Technology
Edge-lit LED LCD
Recommended Usage
Up to 24x7 operation
Warranty
3 years Advance Exchange
Options / Features
Embedded Planar ContentSmart Media Player and software (Compatible with only Microsoft Windows Vista, 7, 8 and 10), Scheduling, TAA compliant
Embedded Media Player: Resolution
UHD 4K (3840x2160) @ 60Hz
Embedded Media Player: Local Storage
16 GB flash memory
Embedded Media Player: Connections
Ethernet, USB x2
Embedded Media Player: Software
Planar ContentSmart Digital Signage Software (included). Compatible with only Microsoft Windows Vista, 7, 8 and 10.
Embedded Media Player: Operating System
Android
Embedded Media Player: Supported Video Codec
MPEG-1, MPEG-2, MPEG-4, VC-1, H.264 (AVC), H.265 (HEVC), HTML5, SMIL
Embedded Media Player: Supported Image Formats
JPEG, PNG
In the Box
QE8650 display, power cord, IR sensor, USB (A to B) cable, remote control, and USB drive containing User Manual and USB-to-serial driver
UPC
810689003908
