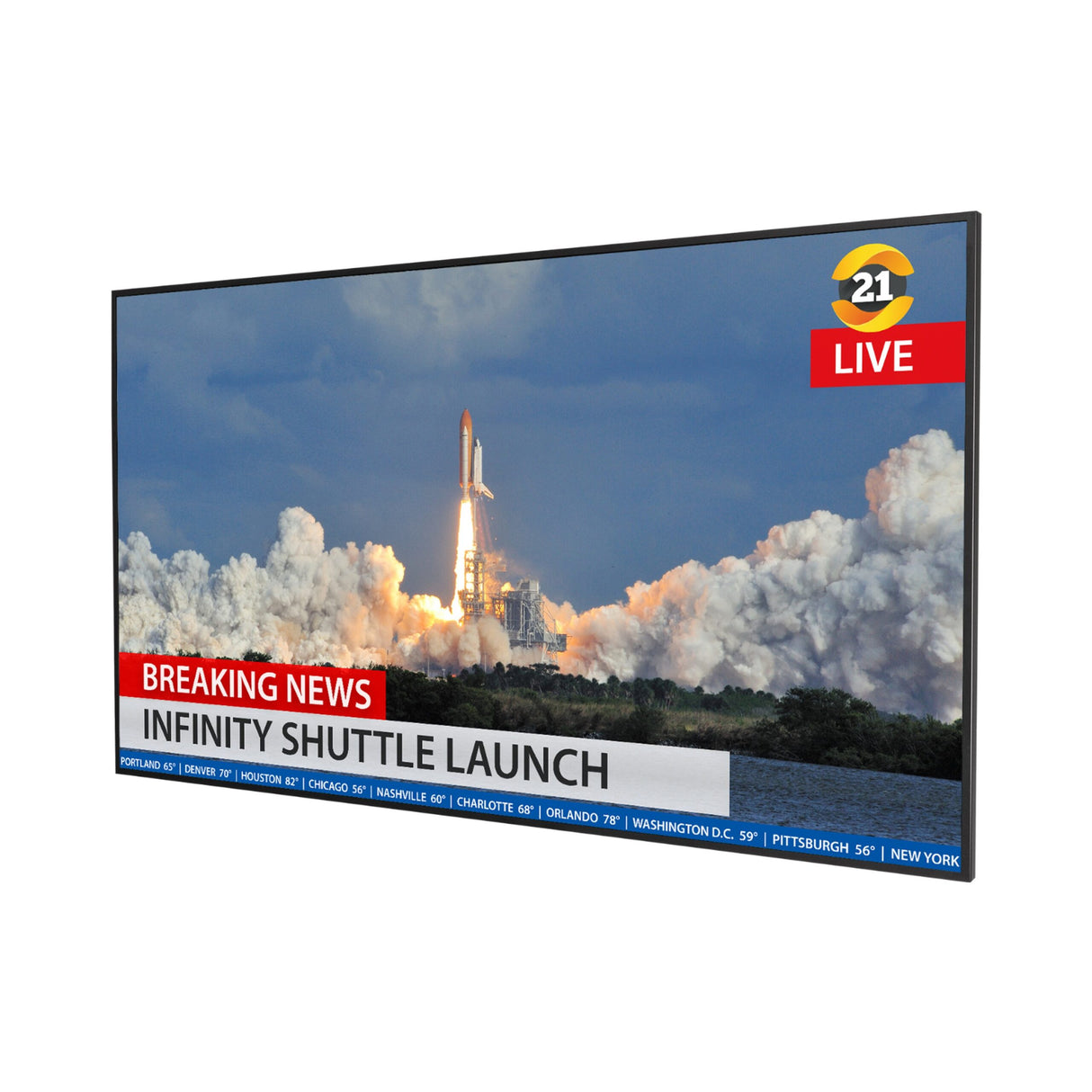

Planar QE9850 QE Series Ultra HD 98 Inch 4K LCD Display
Planar QE9850 QE Series Ultra HD 98 Inch 4K LCD Display
Planar QE9850 QE Series Ultra HD 98 Inch 4K LCD Display
Planar QE Series is a line of 75”, 86” and 98” Ultra HD resolution (3840 x 2160) LCD displays that is ideal for applications ranging from dynamic digital signage to collaborative meeting spaces. Multi-touch models are also available. Planar QE Series displays support native 4K resolution at up to 60Hz via HDMI 2.0 and DisplayPort 1.2, enabling smooth motion video and mouse tracking. Compatible with new and emerging 4K sources, the Planar QE Series uses HDCP 2.2-compliant HDMI 2.0 inputs. With Planar QE Series displays, users can view four sources simultaneously in quad layout and receive remote monitoring alerts via email when a designated event occurs. For precise image control, adjustments can be made within each of the four zones allowing users to optimize the picture quality at the source level.
Key Features
- 98” Ultra HD resolution LCD displays
- Superior 4K video performance and compatibility
- Landscape and portrait flexibility available for select models
- Designed for 24x7 operation
Technical Specifications
Product Name
Planar QE9850
Planar Part Number
997-8799-01
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
98 in. (diagonal)
Aspect Ratio
16:9
Display Active Area
85.0” (2159mm) x 47.8” (1214mm)
Cabinet Dimensions (W x H x D)
86.3” x 49.1” x 3.8” (2192mm x 1247mm x 97mm)
Bezel Width
0.63” (16.0mm) left/right; 0.62” (15.7mm) top/bottom
Brightness (typ)
400 nits
Response Time (typ)
8 ms
Frame Rate
120Hz
Contrast Ratio (typ)
1300:1
Contrast Ratio - Dynamic
20,000:1
Viewing Angle (typ)
178
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
Modes
3840x2160 @ 24/25/30/60Hz; 1920x1080 @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Pixel Pitch
0.562 mm
Weight
187 lbs (85 kg)
Backlight
LED
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
410W (standby: <1W)
Operating Temperature
0 to +35C (32 to 95F) at up to 1500m, 0 to +30C (32 to 86F) at up to 3000m
Humidity
20 - 85% RH (non-condensing)
Approvals
FCC Class A, cTUVus, RoHS
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
Audio Output
PC Line Out, S/PDIF
Multi-Source Views
Quad only
Display Control
IR, RS-232, LAN, Keypad
Speakers
10W x 2 built-in
Orientation
Landscape/Portrait
Mounting
VESA: 600 x 400 mm
Fanless
Yes
HD format
4K UHD 2160p
Display Technology
Edge-lit LED LCD
Haze
1%
Surface Treatment
AG
Recommended Usage
Up to 24x7 operation
Warranty
3 years Advance Exchange
Options / Features
TAA compliant
In the Box
QE9850 display, power cord, IR sensor, remote control, and USB drive containing User Manual and USB-to-serial driver
UPC
810689007418
