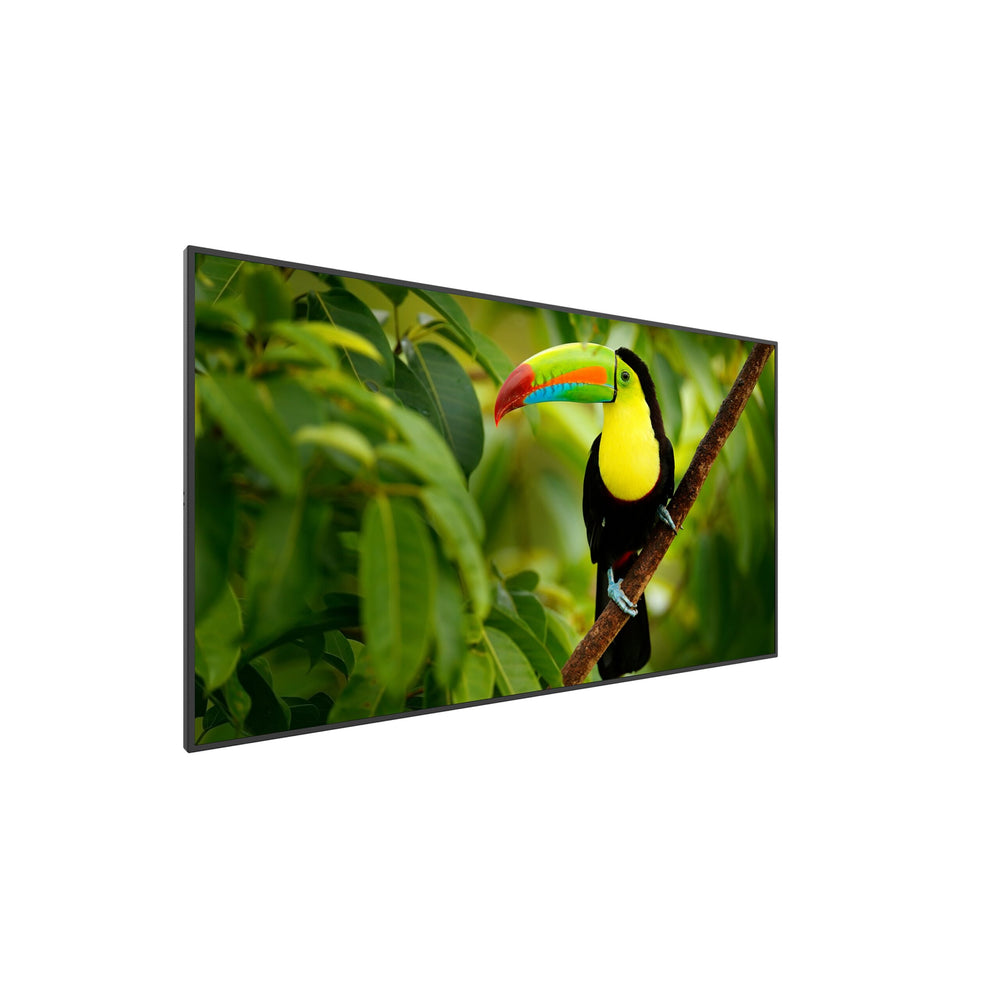

Planar SL4364K 43 Inch Simplicity Series 4K LCD Display

The Planar Simplicity Series SL4364K is a 43” 4K LCD display for digital signage that incorporates media playback, 4K @ 60Hz support, HDCP2.2 compliance and commercial functionality into an affordable 43” digital signage solution. Its elegant design with a narrow, logo-free bezel and slim profile provide the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, corporate meeting areas and hospitality.

Technical Specifications

Product Name
SL4364K
Planar Part Number
997-9254-00
Display Resolution
Ultra HD (3840 x 2160)
HD format
4K UHD 2160p
Screen Size
43 in. (diagonal)
Aspect Ratio
16:9
Display Technology
Direct-lit LED LCD
Haze
2%
Display Active Area
37.1” x 20.8” (941mm x 529mm)
Viewing Angle (typ)
176
Backlight
LED
Brightness (typ)
350 nits
Response Time (typ)
8.5 ms
Frame Rate
60Hz
Contrast Ratio (typ)
5000:1
Pixel Pitch
0.2854mm x 0.2854mm
Color Gamut
68% NTSC
Display Color
>1 billion colors. Full 10 bit data path
External Connections
HDMI 2.0 x 2 (HDCP 2.2), DVI-D x 1, VGA x 1, Media Player
Modes
3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz
Display Control
IR, RS-232, LAN, Keypad
Cabinet Dimensions (W x H x D)
38.1” x 22.0” x 2.4” (968.2mm x 559.4mm x 59.9mm)
Orientation
Landscape only
Bezel Width
0.5” (11.9mm) top, left and right, 0.6” (14.9mm) bottom
Weight
19 lb (9 kg)
Weight (Shipping)
27 lbs (13 kg)
Audio
PC Line in, RCA L/R out
Speakers
10W x 2 built-in
Mounting
VESA: 200mm x 200mm; 400mm x 400mm
Fanless
Yes
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
95W (standby: <0.5W)
Operating Temperature
0 to +40C (32 to 104F) up to 3000m
Humidity
20 - 85% RH (non-condensing)
Options / Features
USB playback with scheduling, logo-free bezel, Kensington security slot, lockable rear keypad
Approvals
FCC Class A, cTUVus, RoHS
Warranty
2 years
Recommended Usage
Up to 16 hours per day
In the Box
SL4364K display, C8 connector power cord, HDMI cable, RS-232 cable, IR cable, remote control, and cable clamps
UPC
810689004592
