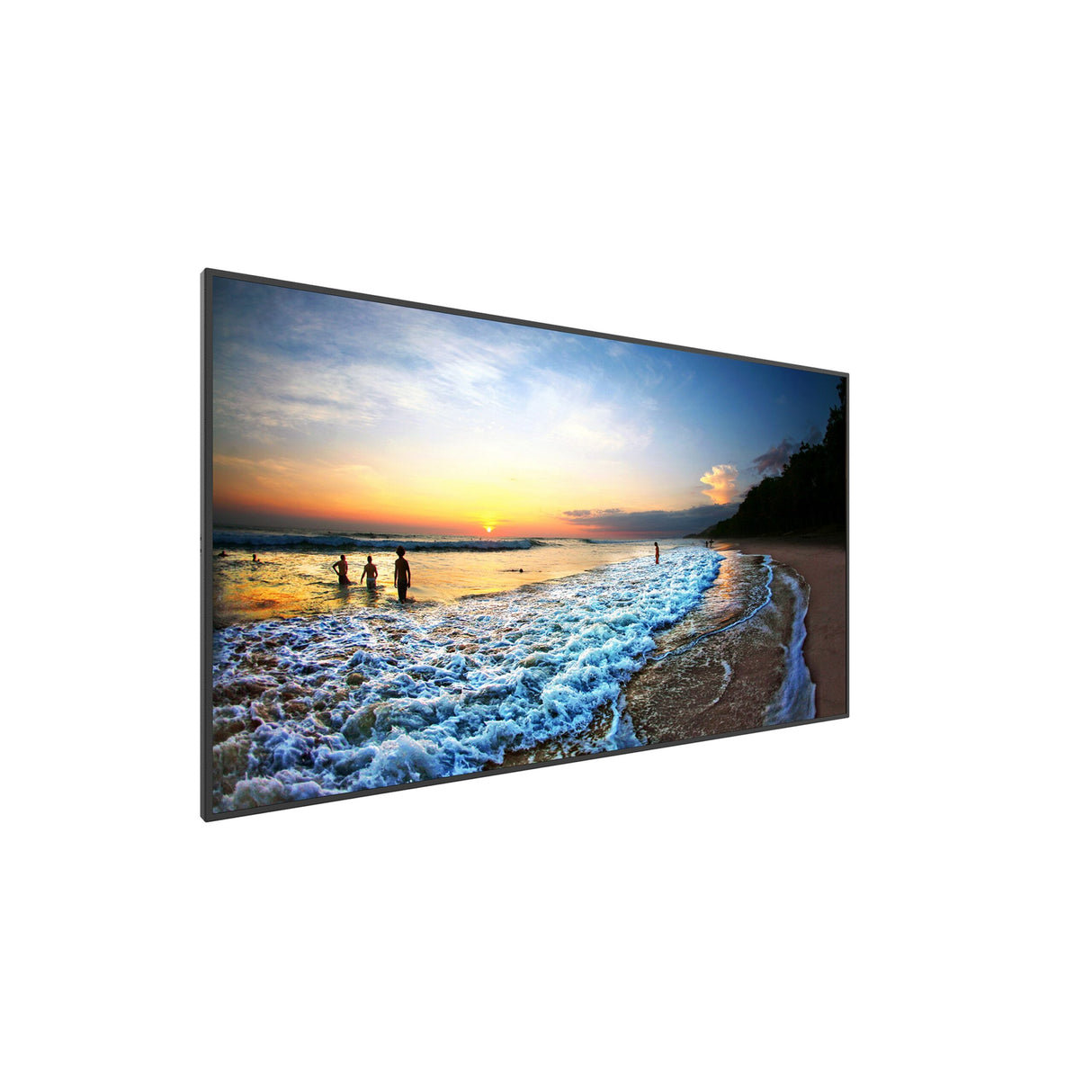

Planar SL6564K Simplicity Series 65 Inch 4K LCD Display for Digital Signage
Planar SL6564K Simplicity Series 65 Inch 4K LCD Display for Digital...
Planar SL6564K Simplicity Series 65 Inch 4K LCD Display for Digital Signage
The Planar Simplicity Series SL6564K is a 65" 4K LCD display for digital signage that incorporates media playback, 4K @ 60Hz support, HDCP2.2 compliance and commercial functionality into an affordable 65" digital signage solution. Its elegant design with a narrow, logo-free bezel, slim profile and integrated OPS slot provide the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, corporate meeting areas and hospitality.
Key Features
- USB media playback
- On/off scheduling
- Slim profile with logo-free narrow bezel
- Full array of connectivity and control
Technical Specifications
Product Name
SL6564K
Planar Part Number
997-9257-00
Display Resolution
Ultra HD (3840 x 2160)
HD format
4K UHD 2160p
Screen Size
65 in. (diagonal)
Aspect Ratio
16:9
Display Technology
Direct-lit LED LCD
Haze
2%
Display Active Area
56.3" x 31.7" (1430mm x 807mm)
Viewing Angle (typ)
178
Backlight
LED
Brightness (typ)
350 nits
Response Time (typ)
8 ms
Frame Rate
60Hz
Contrast Ratio (typ)
4000:1
Pixel Pitch
0.372mm x 0.372mm
Color Gamut
68% NTSC
Display Color
>1 billion colors. Full 10 bit data path
External Connections
HDMI 2.0 x 4 (HDCP 2.2), DisplayPort x 1, VGA x 1, OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1
Modes
3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz
Display Control
IR, RS-232, LAN, Keypad
Cabinet Dimensions (W x H x D)
57.4" x 32.9" x 3.2" (1458.7mm x 834.7mm x 81.6mm)
Cabinet Dimensions with Handles (W x H x D)
Not Applicable
Orientation
Landscape only
Bezel Width
0.8" (21.0mm)
Weight
56 lb (26 kg)
Weight (Shipping)
77 lbs (35 kg)
Audio
PC Line in, RCA L/R out
Speakers
10W x 2 built-in
Mounting
VESA: 400mm x 200mm; 400mm x 400mm
Fanless
Yes
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
150W (standby: <0.5W)
Operating Temperature
0 to +40C (32 to 104F) up to 3000m
Humidity
20 - 85% RH (non-condensing)
Options / Features
USB playback with scheduling, logo-free bezel, Kensington security slot, lockable rear keypad, OPS slot
Approvals
FCC Class A, CE, cTUVus, CCC
Warranty
2 years
Recommended Usage
Up to 16 hours per day
In the Box
SL6564K display, C14 connector power cord, HDMI cable, RS-232 cable, IR cable, remote control, and cable clamps
UPC
8 10689 00462 2
