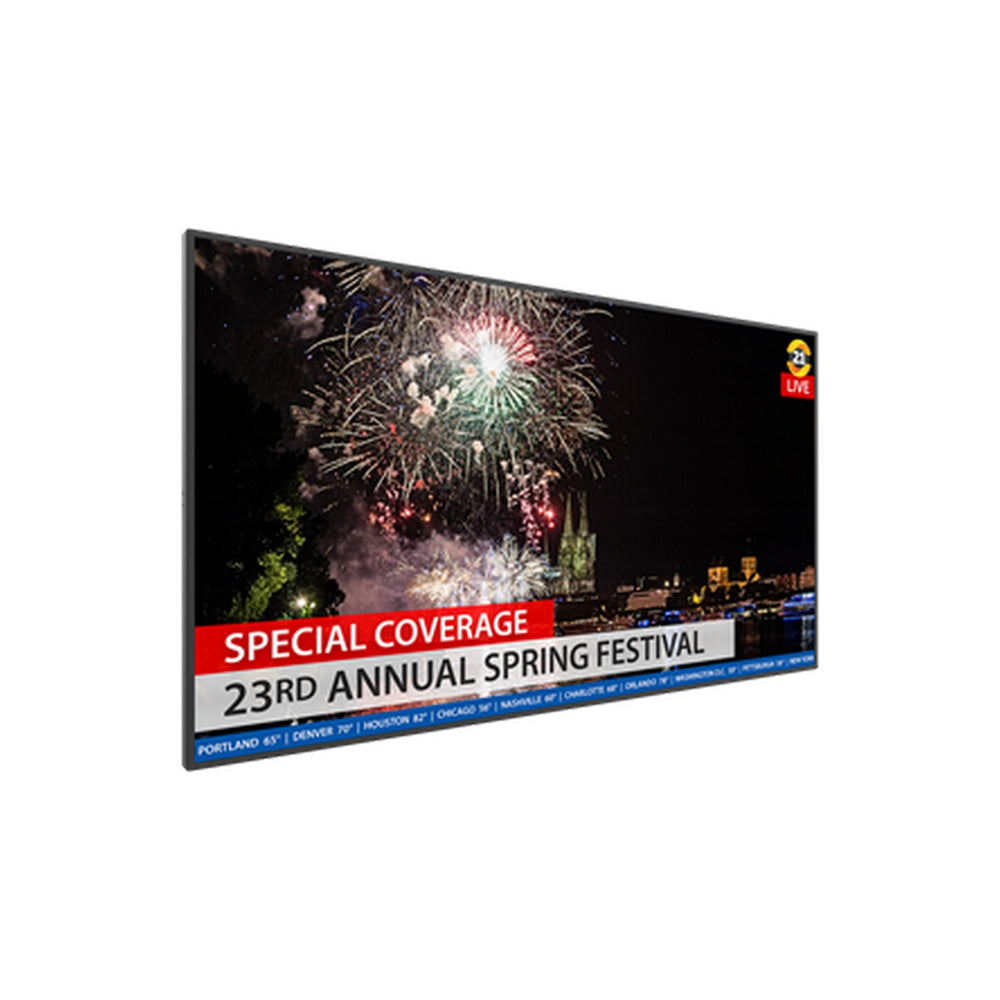

Planar SL8664K 86 Inch Simplicity Series 4K LCD Display
Planar SL8664K 86 Inch Simplicity Series 4K LCD Display
Planar SL8664K 86 Inch Simplicity Series 4K LCD Display
The Planar Simplicity Series SL8664K is a 86” 4K LCD display for digital signage that incorporates media playback, 4K @ 60 Hz support, HDCP2.2 compliance and commercial functionality into an affordable 86” digital signage solution. Its elegant design with a narrow, logo-free bezel, slim profile and integrated OPS slot provide the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, corporate meeting areas and hospitality.
Technical Specifications
Product Name
SL8664K
Planar Part Number
998-0355-01
Display Resolution
Ultra HD (3840 x 2160)
HD format
4K UHD 2160p
Screen Size
86 in. (diagonal)
Aspect Ratio
16:9
Display Technology
Edge-lit LED LCD
Haze
3%
Display Active Area
75.7” x 43.0” (1922mm x 1093mm)
Viewing Angle (typ)
178
Backlight
LED
Brightness (typ)
410 nits
Response Time (typ)
8 ms
Frame Rate
60Hz
Contrast Ratio (typ)
1200:1
Contrast Ratio Dynamic
15,000:1
Pixel Pitch
0.4935mm x 0.4935mm
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
External Connections
HDMI 2.0 x 4 (HDCP 2.2), DisplayPort x 1, VGA x 1, Media Player, OPS x 1
Modes
3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz
Display Control
IR, RS-232, LAN, Keypad
Cabinet Dimensions (W x H x D)
75.9” x 43.3” x 3.0” (1927.90mm x 1098.90mm x76.4mm)
Cabinet Dimensions with Handles (W x H x D)
75.9” x 43.3” x 3.4” (1927.90mm x 1098.90mm x 85.9mm)
Orientation
Landscape only
Bezel Width
0.6” (15.2mm)
Weight
141 lb (64 kg)
Weight (Shipping)
183 lbs
Audio
PC Line in, RCA L/R out
Speakers
10W x 2 built-in
Mounting
VESA: 600mm x 400mm
Fanless
Yes
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
200W (standby: <0.5W)
Operating Temperature
0 to +40C (32 to 104F) up to 3000m
Humidity
20 - 85% RH (non-condensing)
Options / Features
USB playback with scheduling, logo-free bezel, lockable rear keypad, OPS slot
Approvals
FCC Class A, CE, cTUVus, RoHS
Warranty
2 years
Recommended Usage
Up to 16 hours per day
In the Box
SL8664K display, C14 connector power cord, HDMI cable, RS-232 cable, IR cable, remote control, and cable clamps
UPC
810689008408
