Planar UR7551-MX-ERO 75 Inch Ultra HD LCD Display with Planar ERO Technology
Planar UR7551-MX-ERO 75 Inch Ultra HD LCD Display with Planar ERO T...
Planar UR7551-MX-ERO 75 Inch Ultra HD LCD Display with Planar ERO Technology

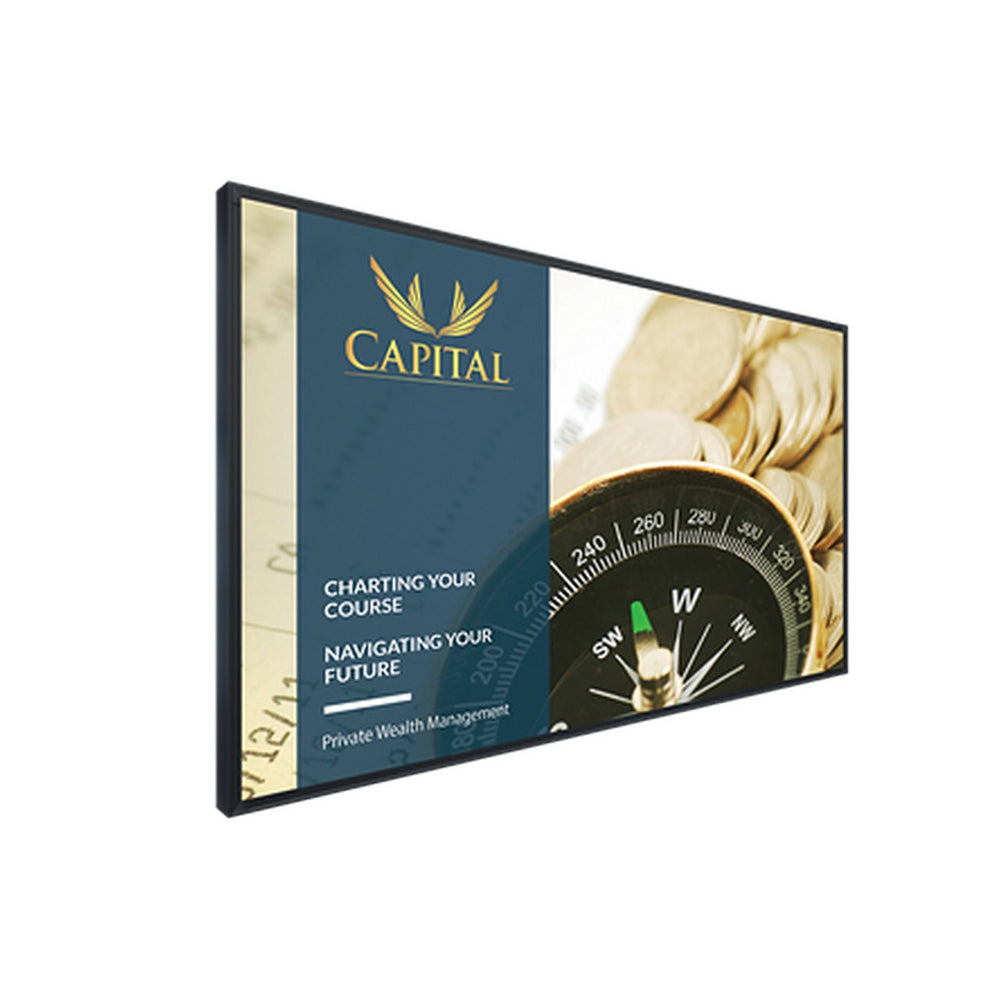

The Planar UltraRes UR7551-MX-ERO is a 75” Ultra HD (3840 x 2160) professional LCD display with best-in-class image and color quality for native 4K and upscaled content. The 500 nit 75" display supports multi-source viewing, 4K @ 60Hz, HDCP 2.2 compliance and portrait orientation. The Planar UltraRes UR7551-ERO combines Planar ERO (Extended Ruggedness and Optics) technology with Corning Gorilla Glass, creating a highly durable 4K display. Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.
Technical Specifications
Product Name
UR7551-MX-ERO
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
75 in. (diagonal)
Aspect Ratio
16:9
Display Active Area
65.0” (1650mm) x 36.5” (928mm)
Cabinet Dimensions (W x H x D)
66.5" x 38.1" x 3.4" (1690mm x 968mm x 87mm)
Dimensions, including wall mount
66.5" x 38.1" x 3.4" (1690mm x 968mm x 87mm)
Bezel Width
0.8" (20mm)
Protective Glass
ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG
Brightness (typ)
500 nits
Response Time (typ)
6 ms
Frame Rate
120Hz
Contrast Ratio (typ)
1200:1
Viewing Angle (typ)
178 deg
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
Modes
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Pixel Pitch
0.429 mm
Weight
186 lb (84 kg)
Weight (Shipping)
TBD
Backlight
LED
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
200W (standby: <1.2W)
Operating Temperature
0 deg to +40 deg C (32 deg to 104 deg F) at up to 1500m, 0 deg to +35 deg C (32 deg to 95 deg F) at up to 3000m
Humidity
20 - 85% RH (non-condensing)
Approvals
FCC Class A, CE, cTUVus
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1
Audio Output
PC Line Out, S/PDIF
Multi-Source Views
PiP, Dual, Triple, Quad
Display Control
IR, RS-232, LAN, Keypad, Mobile app
Speakers
10W x 2 built-in
Orientation
Landscape/Portrait
Mounting
Planar Profile Mounting System or VESA: 400 x 400 mm
Fanless
Yes
HD format
4K UHD 2160p
Display Technology
Edge-lit LED LCD
Options / Features
MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA compliant
Warranty
3 years Advance Exchange
Recommended Usage
Up to 24x7 operation
Planar Part Number
997-8451-00
