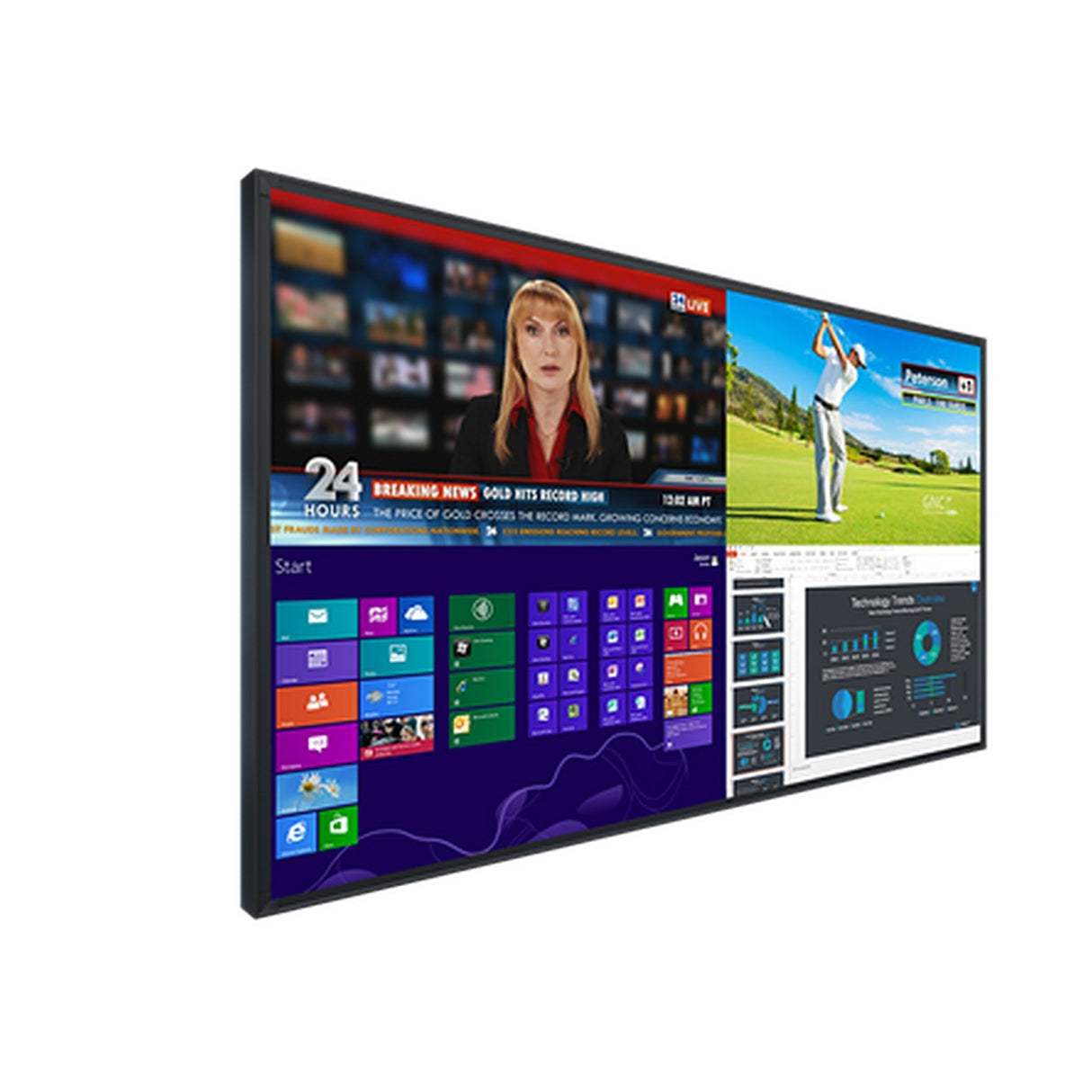

Planar UR9851 98 Inch Ultra HD LCD Display
Planar UR9851 98 Inch Ultra HD LCD Display
Planar UR9851 98 Inch Ultra HD LCD Display
The Planar UltraRes UR9851 is an 98" Ultra HD (3840 x 2160) professional LCD display with best-in-class image and color quality for native 4K and upscaled content. The 500-nit 98" display supports multi-source viewing, 4K @ 60Hz, HDCP 2.2 compliance and portrait orientation (non-ERO model only). Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.
Technical Specifications
Product Name
UR9851
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
98 in. (diagonal)
Aspect Ratio
16:9
Display Active Area
85.0ā (2159mm) x 47.8ā (1214mm)
Cabinet Dimensions (W x H x D)
86.7" x 49.5" x 3.6" (2203mm x 1258mm x 93mm)
Dimensions, including wall mount
86.7" x 49.5" x 3.6" (2203mm x 1258mm x 93mm)
Bezel Width
0.9" (22mm)
Brightness (typ)
500 nits
Response Time (typ)
8 ms
Frame Rate
120Hz
Contrast Ratio (typ)
1300:1
Viewing Angle (typ)
178 deg
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
Modes
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Pixel Pitch
0.562mm
Weight
255 lb (115 kg)
Weight (Shipping)
TBD
Backlight
LED
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
410W
Operating Temperature
0 deg to +35 deg C (32 deg to 95 deg F) at up to 1500m, 0 deg to +30 deg C (32 deg to 86 deg F) at up to 3000m
Humidity
20 - 85% RH (non-condensing)
Approvals
FCC Class A, CE, cTUVus, CCC
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1
Audio Output
PC Line Out, S/PDIF
Multi-Source Views
PiP, Dual, Triple, Quad
Display Control
IR, RS-232, LAN, Keypad, Mobile app
Speakers
10W x 2 built-in
Orientation
Landscape/Portrait
Mounting
Planar Profile Mounting System or VESA: 600 x 400 mm
Fanless
Yes
HD format
4K UHD 2160p
Display Technology
Direct-lit LED LCD
Options / Features
MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA compliant
Warranty
3 years Advance Exchange
Planar Part Number
997-7960-00
