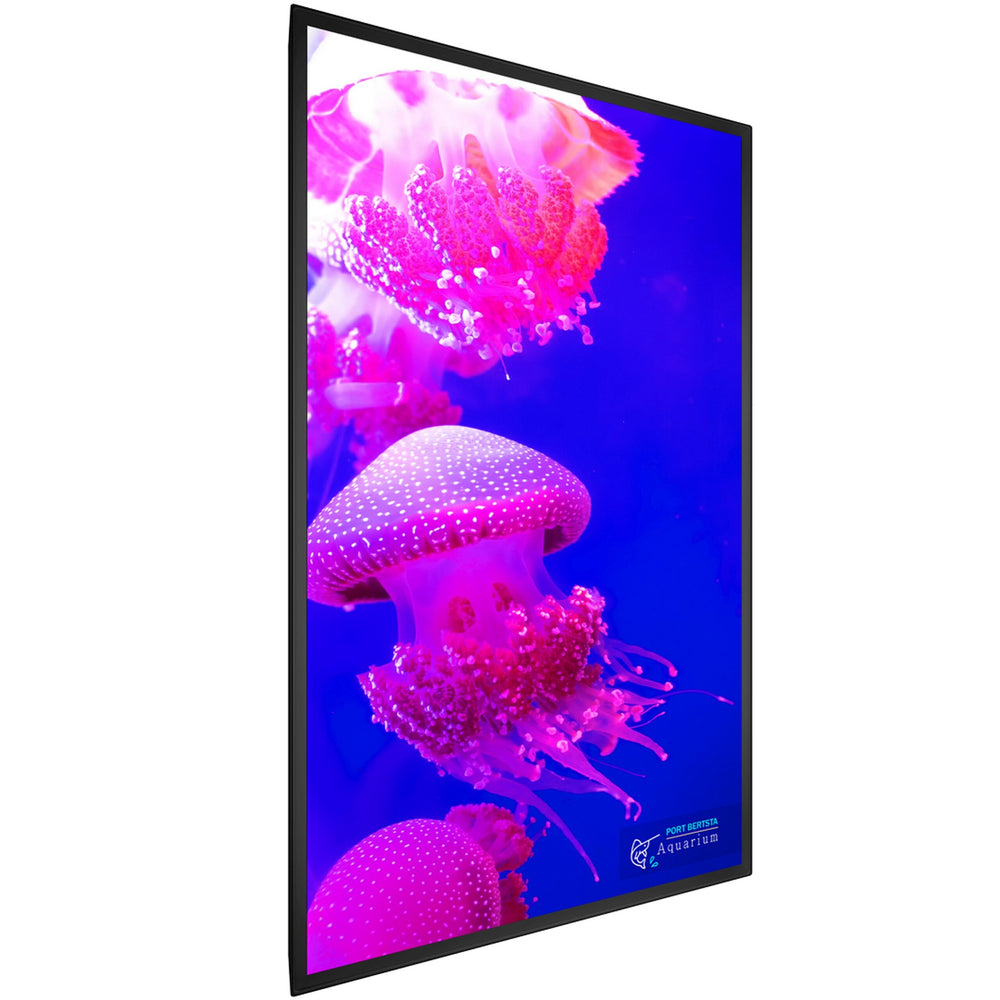

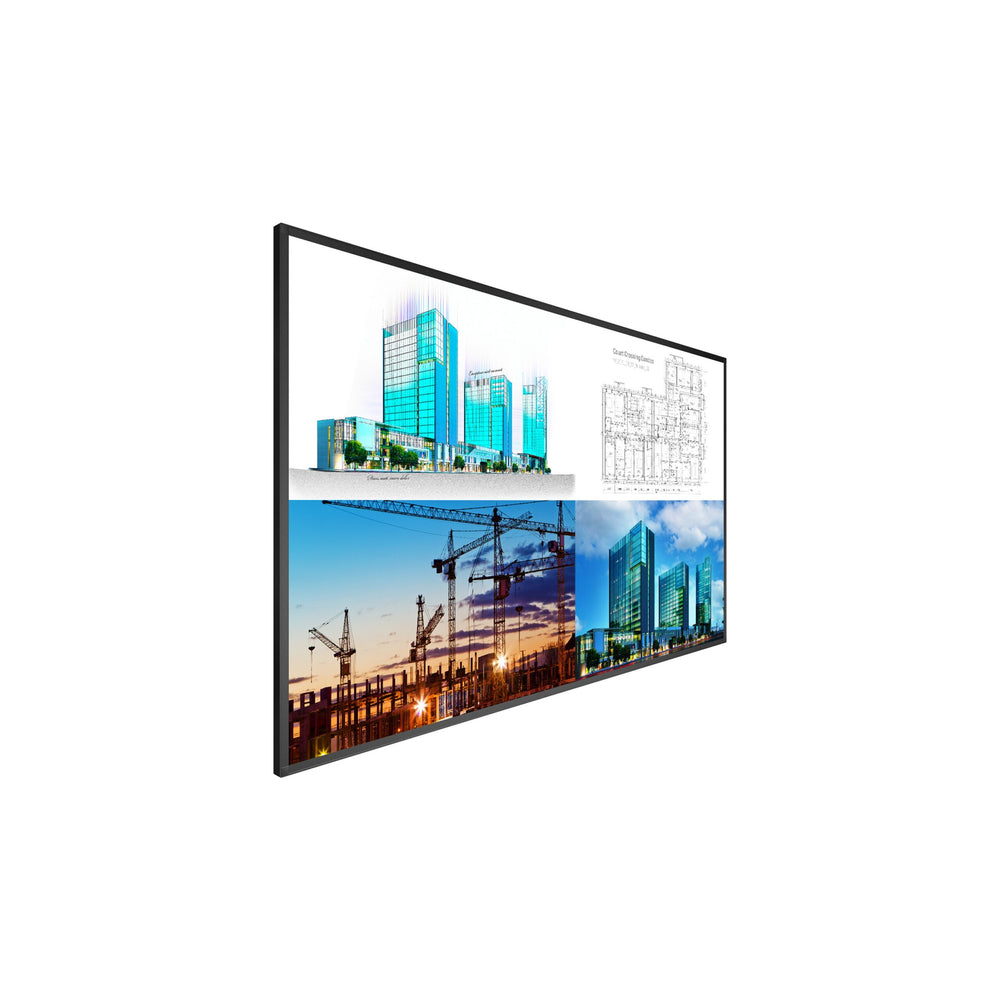

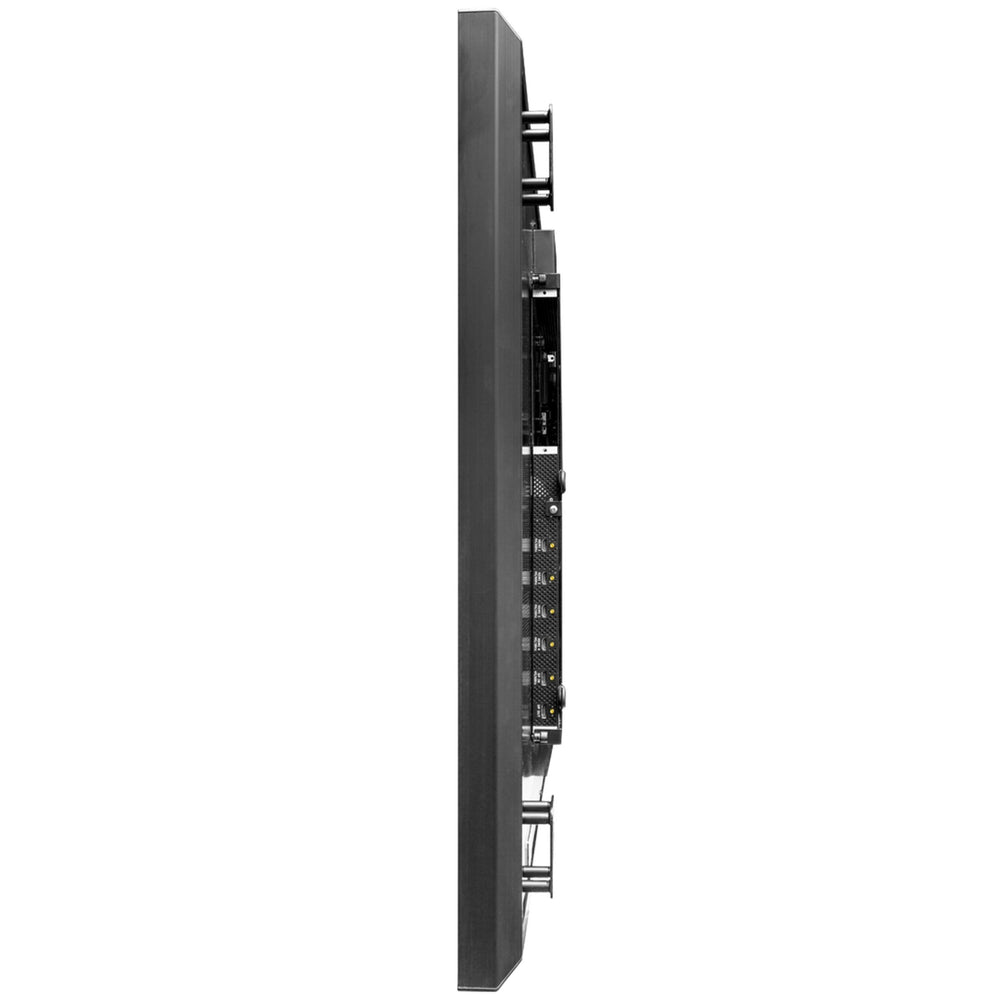

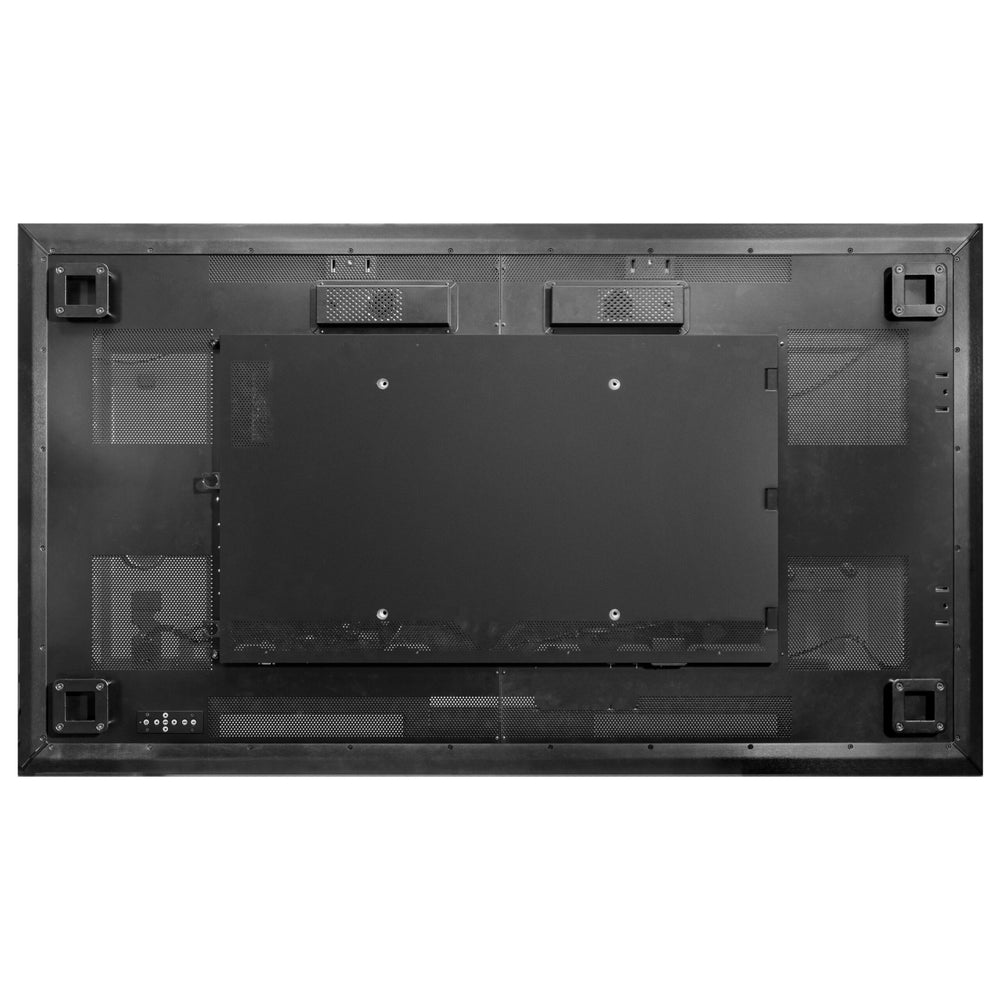

Planar URX75 UltraRes X 75 Inch 4K LCD Display

The Planar UltraRes X Series is a line of 75”, 85” and 100” 4K resolution (3840 x 2160) professional LCD displays with 700-nit brightness and wide color gamut perfect for High Dynamic Range (HDR) content. The displays offer superior visual performance with multi-source viewing and advanced processing ideal for applications ranging from collaborative meeting spaces and control rooms to high-impact digital signage and media rooms. Models ruggedized with Planar ERO-LCD (Extended Ruggedness and Optics) are available, as well as extremely responsive interactive models with up to 32-point touch. The Planar UltraRes X Series supports native 4K resolution at up to 60Hz via HDMI 2.0 and DisplayPort 1.2, enabling smooth motion video and mouse tracking. The displays' HDMI 2.0 inputs are also HDCP 2.2 compliant. It features redundant power and Crestron drivers for versatility.

Key Features

• 75”
• Bright 700 nits
• Wide color gamut
• HDR compatible
• Multi-source viewing with Planar MediaPlex Plus processing

Technical Specifications

Product Name
URX75
Planar Part Number
998-2161-00
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
75 in. (diagonal)
Aspect Ratio
16:9
Display Technology
Direct-lit LED LCD
Haze
44%
Surface Treatment
AG
Display Active Area
65.0” x 36.5” (1650.2mm x 928.3mm)
Viewing Angle (typ)
178
Backlight
LED
Backlight life (1/2 brightness)
50,000 hrs (min)
Brightness (type)
700 nits
Response Time (type)
6.5 ms
Frame Rate
60Hz
Contrast Ratio (type)
5000:1
Contrast Ratio - Dynamic
20,000:1
Pixel Pitch
0.4298 mm
Color Gamut
88% NTSC
HDR (High Dynamic Range)
HDR10
Display Color
>1 billion colors. Full 10 bit data path
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1
Modes
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad, Web Brower Interface, Mobile App
Cabinet Dimensions (W x H x D)
66.3” x 37.9” x 3.7” (1685.0mm x 963.0mm x 92.9mm)
Dimensions including wall mount
66.3” x 37.9” x 3.8” (1684.7mm x 962.7mm x 95.9mm)
Orientation
Landscape/Portrait
Bezel Width
0.7” (16.5mm)
Display Edge to Active Area
0.7” (17.2mm)
Weight
145 lb (65.8 kg)
Audio Input
PC Line In
Audio Output
PC Line Out, S/PDIF
Speakers
10W x 2 built-in
Enclosure
Metal
Mounting
Planar Profile Mounting System or VESA: 400 x 400 mm
Fanless
Yes
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
180W (standby: <0.5W)
Operating Temperature
0 to +40C (32 to 104F) at up to 1500m, 0 to +35C (32 to 95F) at up to 3000m
Humidity
20 - 85% RH (non-condensing)
Options / Features
MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply
Multi-Source Views
PiP, Dual, Triple, Quad
Approvals
FCC Class A, CE, cTUVus, RoHS
TAA Compliance
Yes
Warranty
3 years Advance Exchange
Recommended Usage
Up to 24x7 operation
In the Box
URX75 display, US power cord, HDMI cable, IR sensor, remote control, lifting straps x2, QuickStart Guide
UPC
810689008071
