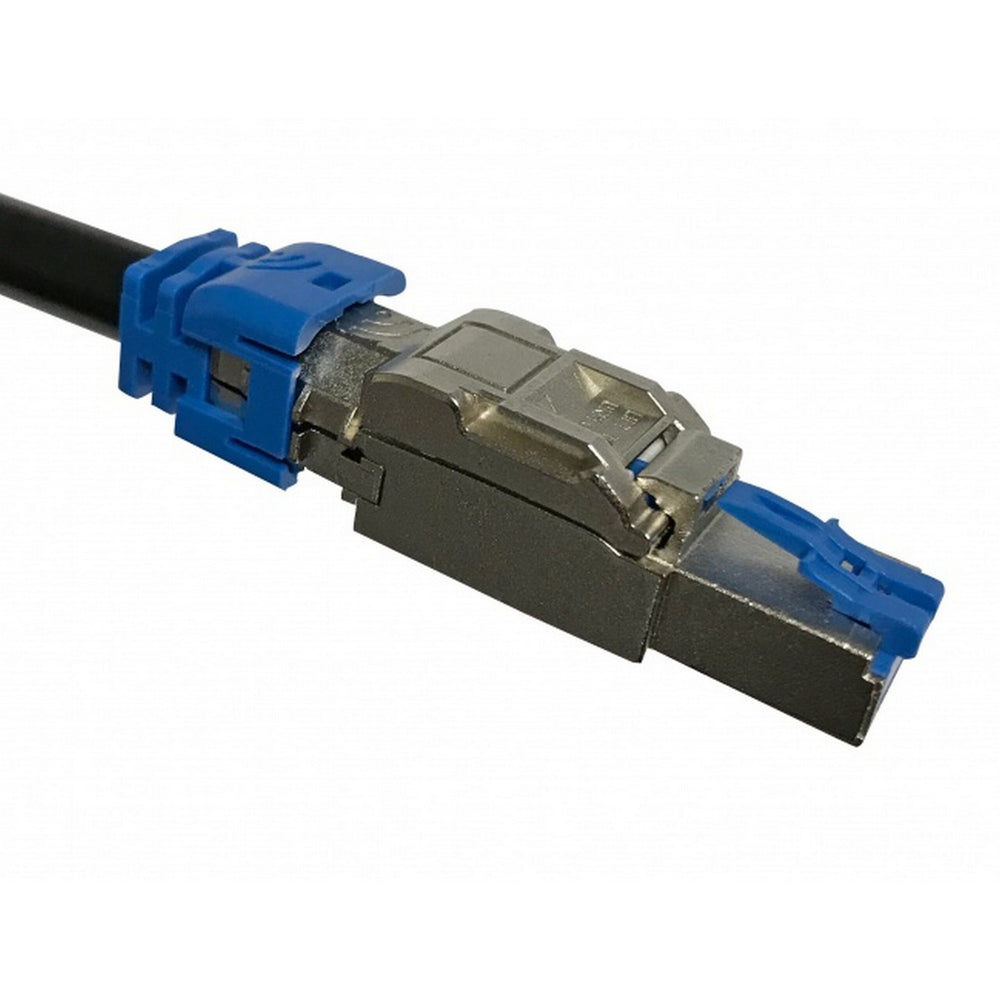

Platinum Tools 106250 PoE+ 10Gig Shielded RJ45 Field Plug
Platinum Tools 106250 PoE+ 10Gig Shielded RJ45 Field Plug
Platinum Tools 106250 PoE+ 10Gig Shielded RJ45 Field Plug
The Platinum Tools 106250 PoE+ 10Gig Shielded RJ45 field installable plug optimizes throughput to to PoE+ powered devices. Compatible with a wide range of large cables with large conductors. Design facilitates field installation. Cast metal shell provides end to end shielding from extraneous noise interference in high band width applications.
Key Features
- HDBaseT PoE+ Compliant
- Cat7, Cat 6A, Cat 6
- No special crimp tools required
- 50 micron gold plated contacts
- Compatible with S/FTP or F/FTP Shielding
- Solid or stranded conductors 26 - 23AWG
Technical Specifications
Compliance
ISO/IEC 11801
ANSI/TIA-568-C.2
ANSI/TIA568.2-D
IEEE 802.3an, 10GBIt'suitable
UL and RoHS compliant
Cable Compatibility
S/FTP or F/FTP Shielding
Stranded or Solid
26AWG - 23AWG wires
Insulation/conductor OD
.032" - .057" (8mm - 1.47mm)
Cable OD
.236" - .315" (6.0mm - 8.0mm)
Dimensions
2.76 inch x 0.70 inch x 0.55 inch (70.20mm x 17.85mm x 14.0mm)
