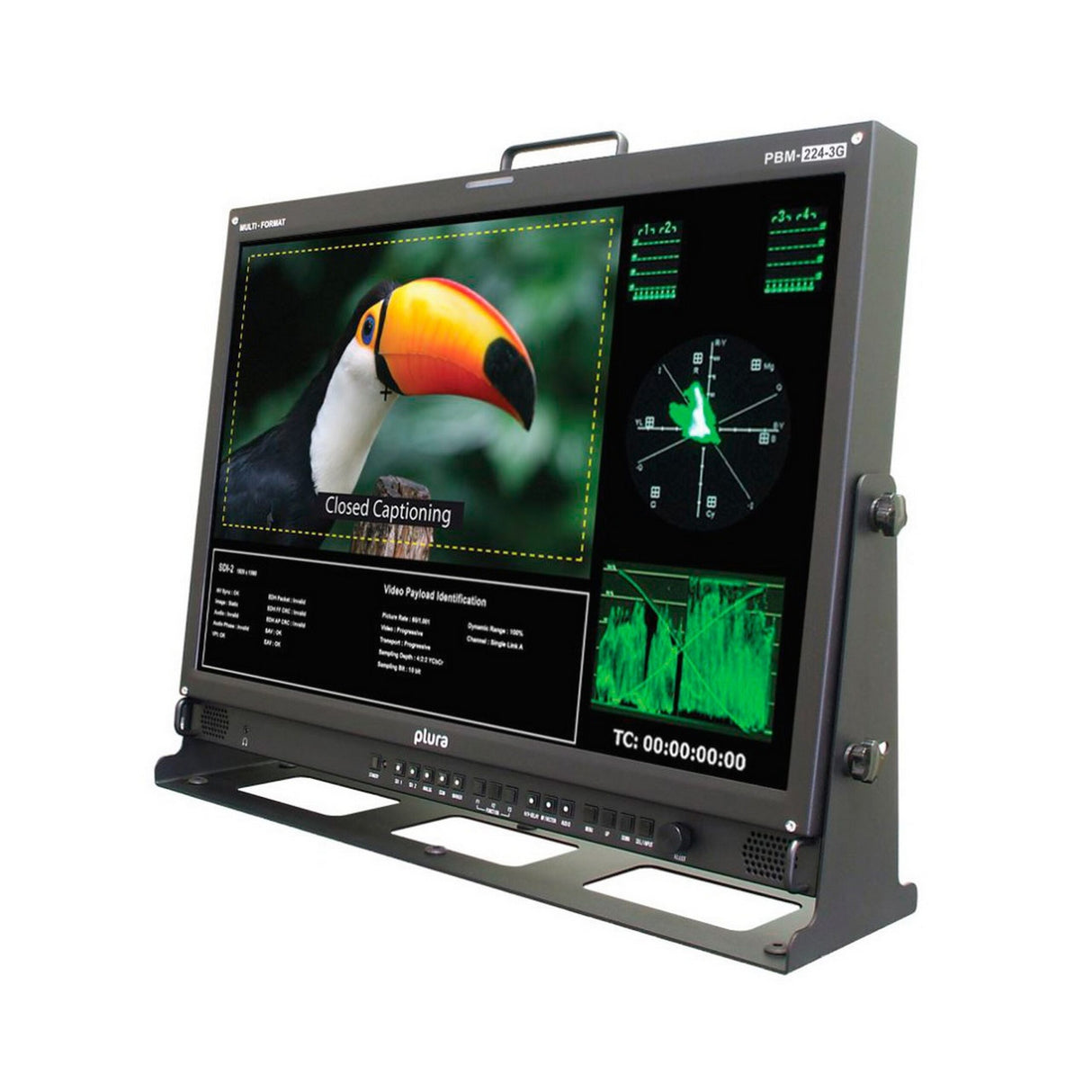

24" - 3G Broadcast Monitor (1920x1200) Class A- 3Gb/s Ready

Key Features

• 3Gb/s ready - 1080/60P
• Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
• 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
• Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
• (ICAC) - Plura Intelligent Connection for Alignment & Calibration
• Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
• RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
• Cutting edge De-interlacing and Scaling Technology
• Fast Response Time for high motion video
• RGB 10 Bit Digital Signal Processing
• 178 Viewing Angle Display
• Closed Caption (608/708)
• Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
• Various and User defined Markers Display, Safe Area in HD & SD
• Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
• Advanced Waveform (Y.Cb.Cr.selectable), Vector Scope
• Analog & Embedded Audio Input, Digital Audio Decoding
• Built In Stereo Speaker , 16 CH Audio Metering Display
• IMD & Time code display and Wall Control System
• Pixel to Pixel Mode, Tally, DC Operation
• Underscan/ Overscan/ Normal / Zoom
• Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
• Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
• OPTIONS: Battery Mount (PBM-217-3G, PBM-220-3G), Carry Case,
• Rack mount: (PBM-217-3G, PBM-220-3G & PBM-224-3G)

Technical Specifications

Input
SD-SDI Input 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
Analog Input 3EA, Composite, Component(YPbPr/RGB), BNC Jack
S-VIDEO Input 1EA,YC(S-Video)
DVI/VGA Input 1EA, DVI-I, 24pin, Female
HDMI 1EA, HDMI, 19pin Female
Output
SDI Output 2EA, BNC, Active Through Output
Analog loop Output 3 EA, 75O BNC
Analog Input Level
Composite 1.0Vpp (With sync)
YC (S-Video) 1.0Vpp (Y With sync), 0.286Vpp
Component 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
RGB 1.0Vpp (G With sync), 0.7Vpp (R/B)
DVI
Analog PC) H Frequency Range
22~82KHz, V Frequency Range : 55~90Hz,
Maximum Resolution
UXGA at 60Hz,
Maximum Pixel Rate
162MHz - Separate Sync Support
Digital Input Format
SMPTE-428.1M 2048x1080P(24/25)
SMPTE-425M(3G) 1920x1080P(50/60)
SMPTE-260M 1920x1035i(60/59.94)
SMPTE-274M 1920x1080i (50/59.94/60)
1920x1080P (30Psf/25Psf/24Psf/30/25/24)
SMPTE-372M Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
Dual Link HD-SDI YpbPr/RGB(4:4:4)
1080P(30/29.97/25/24/23.98)
1080i(29.97/25/24/23.98)
720P(60/59.94/50)
SMPTE-296M 1280x720P (50/59.94/60)
SMPTE-125M 480i(59.94)
ITU-R BT.601 576i(50)
Component 640 X 480 up to 1920 X 1080p
HDMI - DVI-I Digital
Audio Output
Speaker Output Internal Speaker (Stereo) 2W+2W
Output Line 1EA, L/R, Stereo pin jack
Ear-phone Output 1EA, L/R Stereo, 3.5mm pin jack
Output Signal Input Line & De-embedded Audio, 1~ 16CH
Audio Input
Input Line Analog Stereo (RCA Jack)
SDI Audio Input Embedded HD/SD-SDI Audio
H Frequency Range
22~82KHz, V Frequency Range : 55~90Hz,
Maximum Resolution
UXGA at 60Hz ,
Maximum Pixel Rate
162MHz
Audio Output
Speaker Output Internal Speaker (Stereo) 2W+2W
Output Line 1EA, L/R, Stereo pin jack
Ear-phone Output 1EA, L/R Stereo, 3.5mm pin jack
Output Signal Input Line & De-embedded Audio, 1 - 16CH
I/O Port
GPI RJ-45 pin (Programmable General Purpose Input)
RS422/485 RJ-45 8 pin for upgrade
Upgrade Port D-sub 9 pin female for upgrade
RS232 D-sub 9 pin female I/P for wall control
LCD
Size
LCD 24"
Aspect Ratio
16 : 10
Resolutions
1920 x 1200
Display Area
518.4 x 324.0 (mm)
Display Color
16.7 M colors
Brightness Max
400 cd/m2
Contrast Ratio
1000 : 1 (Typical)
Response Time
Tr=7.5ms / Tf=7.5ms
Viewing Angle Horizontal
178(Typ.), Vertical 178(Typ.)
Power Requirement
AC 100 V ~ 240 V (60/50 Hz)
Power Consumption
1.0 A - 0.5A(100W)
Working Temperature
-30C ~ 40C (-22F ~ 104F)
Working Humidity
10%RH ~ 85%RH (Non Condensed)
Storage Temperature
-30C ~ 60C (-22F ~ 140F)
Storage Humidity
10%RH ~ 85%RH (Non Condensed)
Weight (w/o Stand & Packaging)
9.9 Kg - 22.0 Lbs
Dimension (W*H*D)
w/o Box & Stand 553.8 x 408 x 86 mm
21.8 x 16.1 x 3.4 Inch
Packing Dimension (WxHxD)
660 x 523 x 220 mm
26 x 20.6 x 8.7 Inch
Accessory Power Cord - Desk Stand
