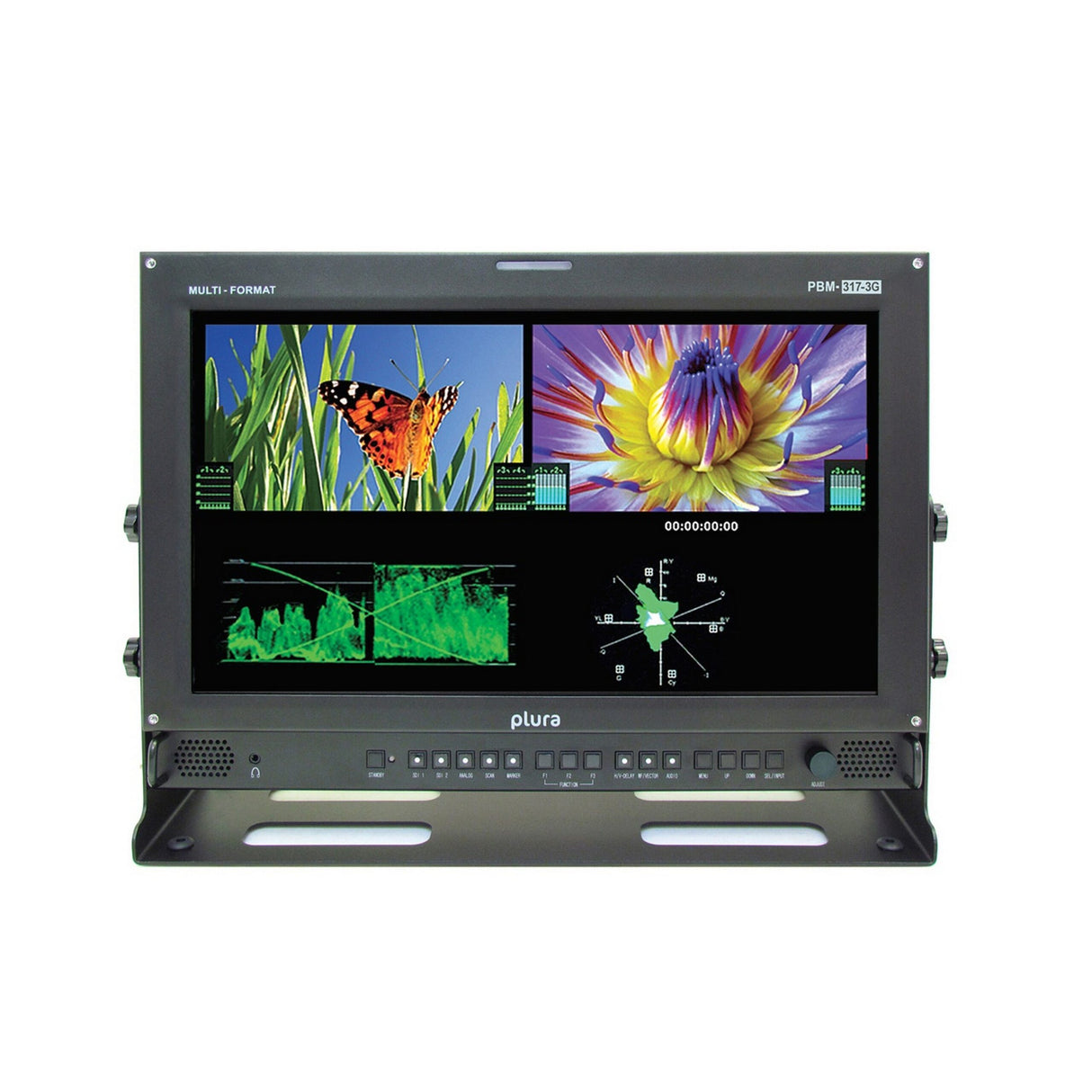

Plura PBM-317-3G 17 Inch 3G Broadcast Monitor, Class A- 3Gb/s Ready
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Plura PBM-317-3G 17 Inch 3G Broadcast Monitor, Class A- 3Gb/s Ready
The PBM-3G Series offers an elegant slim design with fast response time for smooth videostreaming in 7", 17", 20", 24", 32", 40", 46" & 55" display sizes, native full HD resolution with high contrast ratio, wide viewing angles, accurate color reproduction and quality picture consistency that meets your HD SD Monitoring application.
Key Features
- 3Gb/s ready - 1080/60P
- Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
- 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s).
- Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards.
- (ICAC) - Plura Intelligent Connection for Alignment & Calibration
- Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
- RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
- Cutting edge De-interlacing and Scaling Technology
- Fast Response Time for high motion video
- RGB 10 Bit Digital Signal Processing
- 178 Viewing Angle Display
- Closed Caption (608/708)
- Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K.
- Various and User defined Markers Display, Safe Area in HD & SD
- Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
- Advanced Waveform (Y.Cb.Cr.selectable), Vector Scope
- Analog & Embedded Audio Input, Digital Audio Decoding
- Built In Stereo Speaker , 16 CH Audio Metering Display
- IMD & Time code display and Wall Control System
- Pixel to Pixel Mode, Tally, DC Operation
- Underscan/ Overscan/ Normal / Zoom
- Programmable Front Pushbutton Controls, GPI & RS232 Remote Control.
- Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System).
- Rack mount: (PBM-217-3G, PBM-220-3G & PBM-224-3G).
Technical Specifications
Input
SD-SDI Input
2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack.
Analog Input
3EA, Composite, Component(YPbPr/RGB), BNC Jack
S-VIDEO Input
1EA,YC(S-Video)
DVI/VGA Input
1EA, DVI-I, 24pin, Female
HDMI
1EA, H DMI, 19pin Female
Output
SDI Output
2EA, BNC, Active Through Output
Analog loop
Output 3 EA, 75O BNC
Analog Input Level
Composite 1.0Vpp (With sync)
YC (S-Video) 1.0Vpp (Y With sync), 0.286Vpp ( C )
Component 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
RGB 1.0Vpp (G With sync), 0.7Vpp (R/B)
DVI - (Analog PC): H Frequency Range : 22-82KHz, V Frequency Range : 55-90Hz, Maximum Resolution : UXGA at 60Hz, Maximum Pixel Rate : 162MHz - Separate Sync Support.
Digital Input Format
SMPTE-428.1M 2048x1080P(24/25)
SMPTE-425M(3G) 1920x1080P(50/60)
SMPTE-260M 1920x1035i(60/59.94)
SMPTE-274M 1920x1080i (50/59.94/60)
1920x1080P (30Psf/25Psf/24Psf/30/25/24)
SMPTE-372M
Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
Dual Link HD-SDI YpbPr/RGB(4:4:4)
1080P(30/29.97/25/24/23.98)
1080i(29.97/25/24/23.98)
720P(60/59.94/50)
SMPTE-296M 1280x720P (50/59.94/60)
SMPTE-125M 480i(59.94)
ITU-R BT.601 576i(50)
Component 640 X 480 up to 1920 X 1080p
HDMI - DVI-I Digital
H Frequency Range
22-82KHz, V Frequency Range : 55-90Hz,
Maximum Resolution
UXGA at 60Hz ,
Maximum Pixel Rate
162MHz
