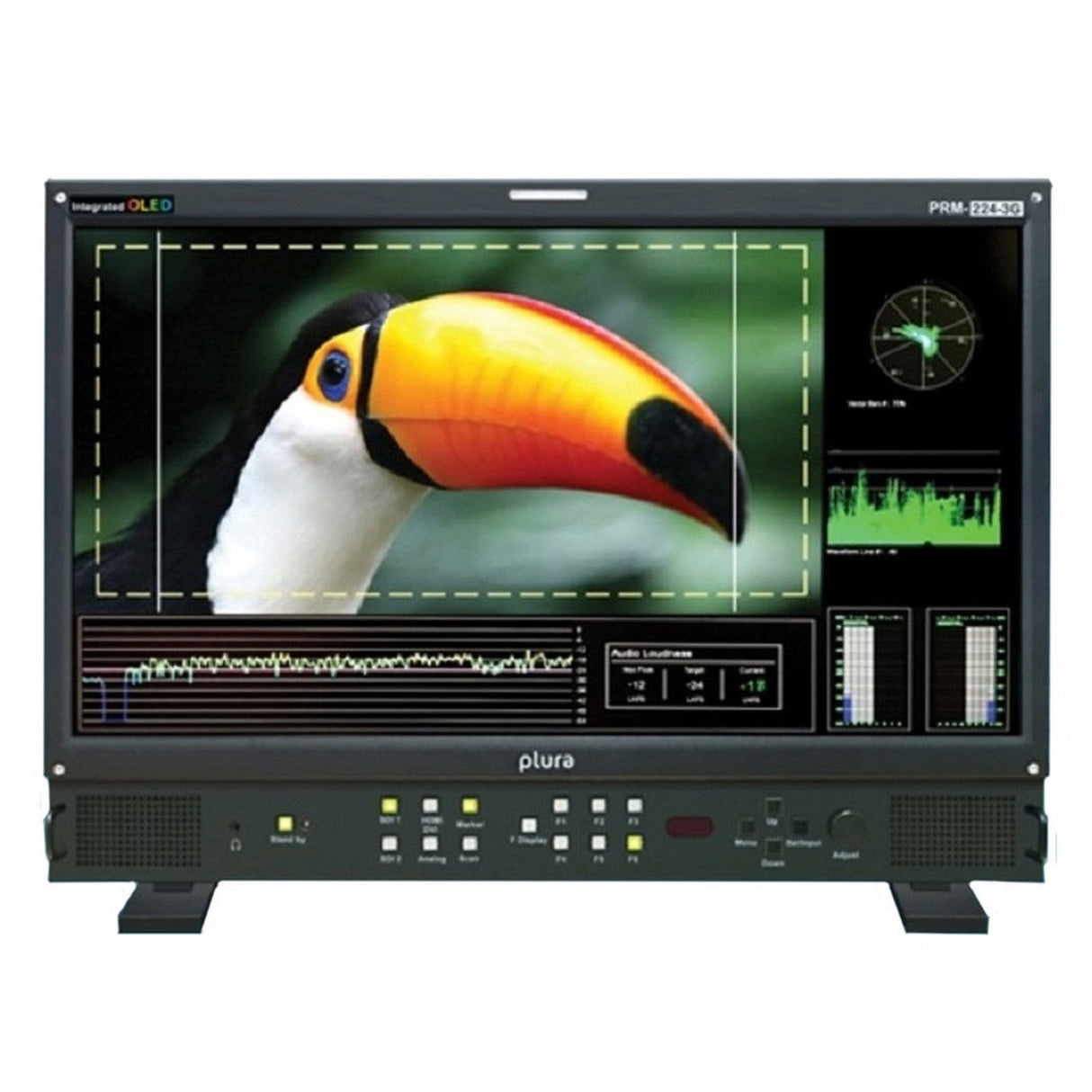

Plura PRM-224-3G-O 24.5 Inch OLED Slim 10 Bit Video Panel

New PRM-3G series including PRM-224-3G offers an elegant slim design integrated with Grade A - 10 BIT OLED 24.5" panel and delivers outstanding BLACK performance, very fast response time for smooth video with virtually NO motion blur, High contrast of 5000:1, wide viewing angle, accurate color reproduction and quality picture consistency that meets all your HD & SD Monitoring applications.

Key Features

• LKFS Audio Measurement - Digital Loudness Audio metering in LKFS scale
• 10 BIT Color Depth 24.5" integrtaed OLED Panel, 3D LUT, Dual display modes with dual Wfrm & Vect
• 2 x Auto-detect HD-SDI, SDI with active loops (3 Gb/s / 1.485Gb/s / 270Mb/s)
• 3 x Composite inputs with active loops, 1 x DVI/VGA and 1 x HDMI
• (ICAC) - Plura Intelligent Connection for Alignment & Calibration
• 3D LUT & Wide range of Gamma selection
• Closed Caption (608/708) - Teletext 801 & Subtitle OP-47
• Ethernet control, Advanced audio metering
• RGB 12 Bit Digital Signal Processing
• Internal Monitor Display (IMD)
• 5000:1 Contrast Ratio
• Pixel to Pixel Mode, Tally, DC Operation
• Display LTC & DVITC time code with line select
• Internal Pattern Generator and Wall Control System
• Built In Stereo Speaker, 16 CH Audio Metering Display
• Analog & Embedded Audio Input, Digital Audio Decoding
• Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
• Various and User defined Markers Display, Safe Area in HD & SD
• Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
• Display Advanced Waveform & Vector Scope simultaneously with line select
• Programmable 6 User Front Pushbutton Controls, GPI & RS232 Remote Control
• OPTION: Battery Mount, Rack mount, Wall mount, Carry Case

Technical Specifications

Input
HD/SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
Analog Input: 3EA, Composite, Component(YPbPr/RGB), BNC Jack
S-VIDEO Input: 1EA,YC(S-Video), S-Jack
PC-RGB (DVI) Input: 1EA,PC-RGB (VGA) Jack D-SUB 15Pin
DVI Input: 1EA, DVI-I, 24pin, Female
HDMI Input: 1EA, HDMI, 19pin Female
Output
SDI Output: 2EA, BNC, Active Through Output
Analog Loop Ouput: 3EA, 75O,BNC Jack (Option)
Analog Input Level
Composite: 1.0Vp-p(with sync), NTSC/PAL
YC (S-Video): Y :1.0Vp-p, C:0.286Vp-p
Component (Y/Pb/Pr): Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
Component (R/G/B): G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
PC-RGB, Sync Level: R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p
Digital Input Format
SMPTE 425M/3G: 1920*1080p(60,59.94,50)
2K Format: 2048*1080,24p/psf,23.98p/psf
SMPTE 372: 1920*1080i(60,59.94,50),1080p(30,29.97,24,23.98), Dual_YUV444, Dual_RGB444/ Dual_YUV422/1920*1080p(60,59.94,50) 1280*720p(60,59.94,50)
SMPTE 274M/292M: 1920*1080i/60,59.94,50; 1920*1080p/30,29.97,25,24,23.98,23.98sf
SMPTE 296M: 1280*720p/60,59.94,50
SMPTE 260M: 1920*1035i/60,59.94
SMPTE 259M, 125M: 720*480i/60,59.94
ITU R-BT.656: 720*576i/50
Component: 640 X 480 up to 1920 X 1080p
HDMI Digital: ~ 1920 X 1200(embedded Audio, with HDCP)
DVI Digital: 640 X 480 up to 1920 X 1200
PC-RGB(DVI) Mode: 640 X 480 up to 1280 X 1024, max 1600 X 1200
Audio Input
Input Line: 1EA, L/R, Stereo pin jack
SDI Audio Input: Embedded HD/SD-SDI Audio
Audio Output
Output Line: 1EA, L/R, Stereo pin jack
Speaker Output: 2EA, 2W+2W
Ear-phone Output: 1EA, L/R Stereo, 3.5mm Stereo pin jack
Output Signal: Input Line & De-embedded Audio, 1~ 16CH
I/O
Remote: 1EA, Remote, RJ-45P Jack, GPI-7 Port
Update: 2EA, RJ-11P Jack, RS-422, Serial interface
LCD
Size: 24.5"
Resolution: 1920 X 1080
Pixel Pitch: 0.283 mm
Color: 1,073,741,824 Colors
Viewing Angle (deg): R/L:178, U/D:178
Luminance of White:250 cd/m2
Contrast 5000 : 1
Display Area (H X V): 543.36 X 305.64 mm
General
Power Requirements: AC 100 - 230V, 50Hz/60Hz
Power Consumption: 1.0 A- 0.5A(100W)
Operating Temperature: 0°C ~35°C(41°F~95°F)
Operating Humidity: 20% ~ 80% RH
Weight: 30.8 Lbs
Dimension (W*H*D) w/o Box & Stand: 21.8 x 16.1 x 3.93 Inch
