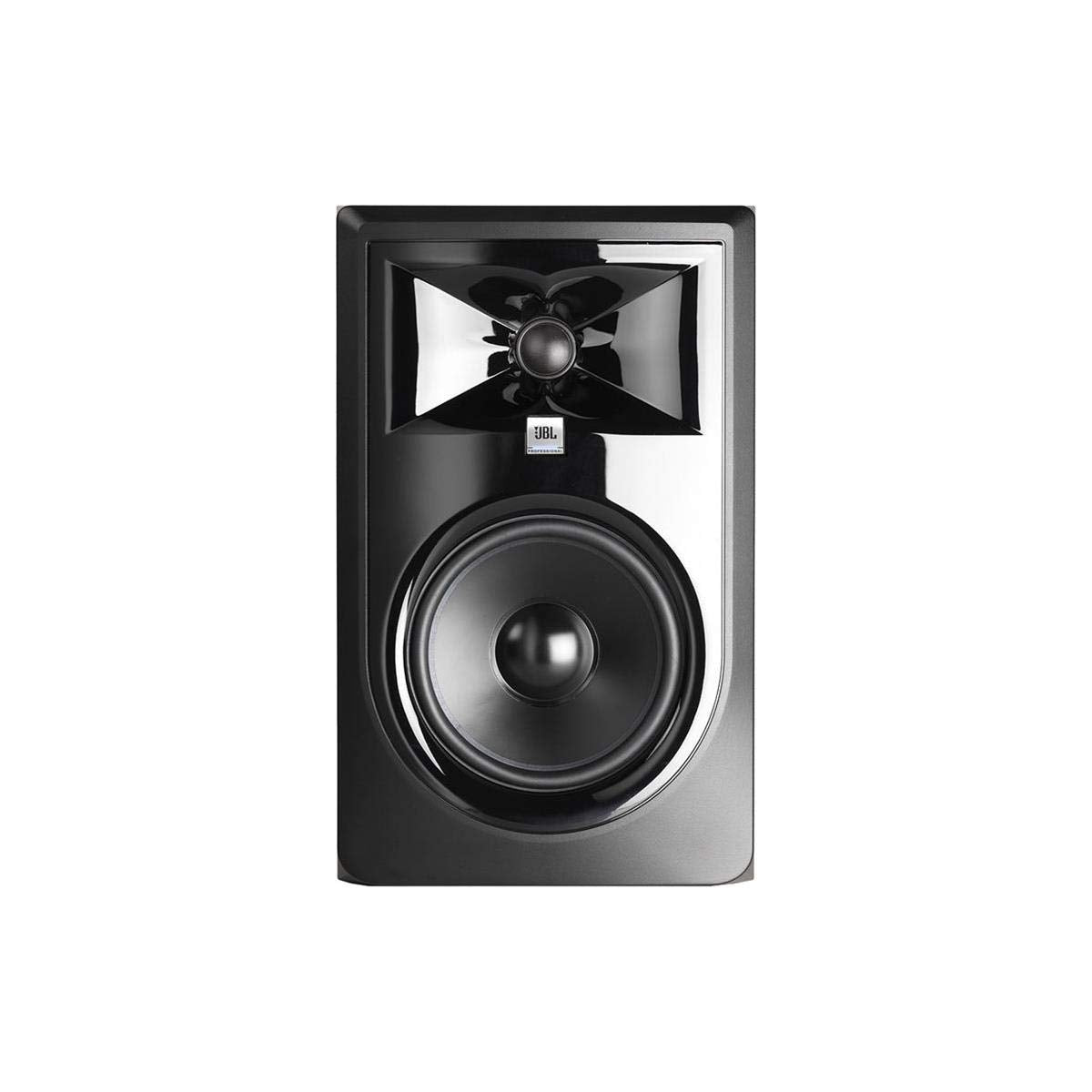

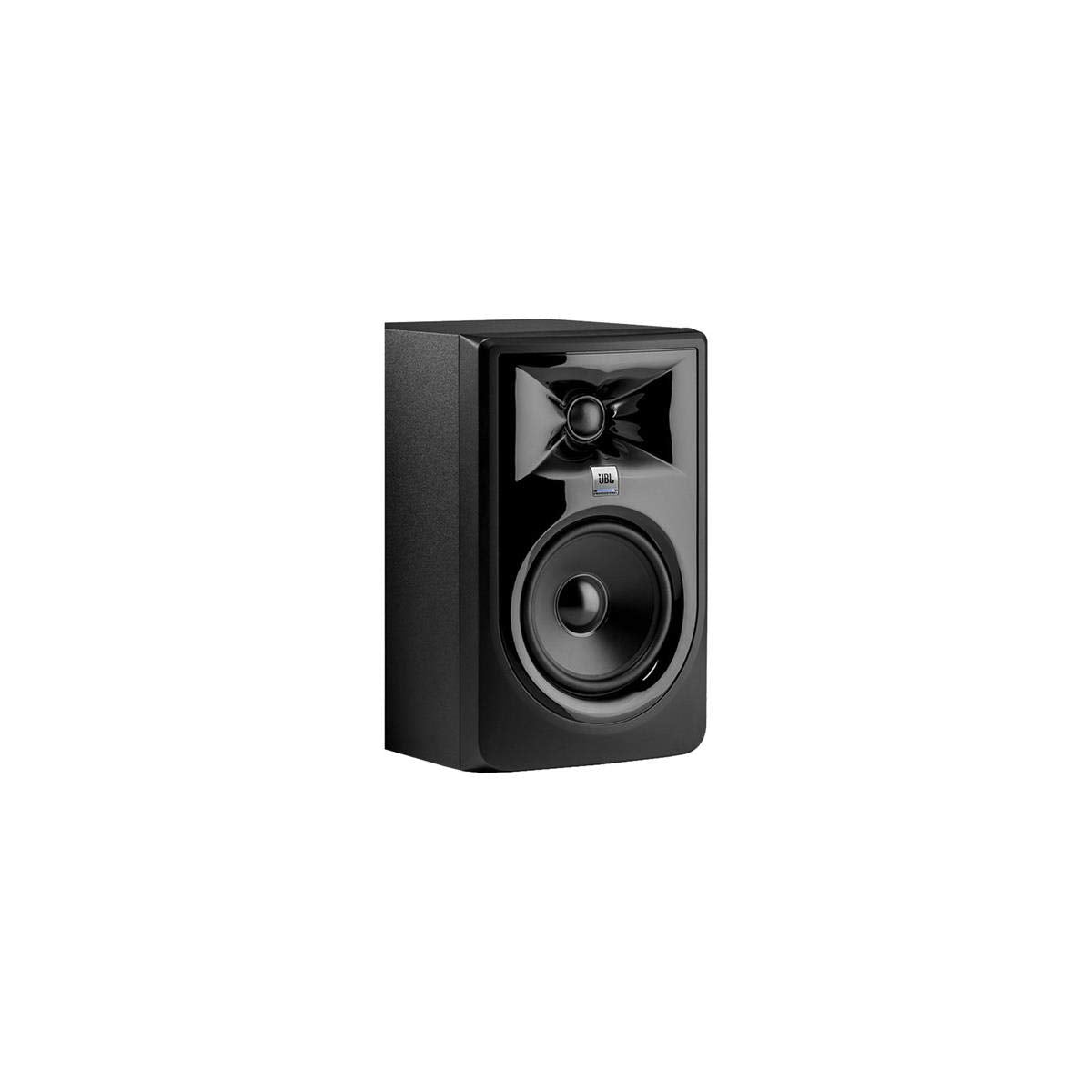

JBL 306P MkII Powered 6 Inch Two Way Studio Monitor Speaker

JBL 306P MkII | Powered 6 Inch Two Way Studio Monitor Speaker

The JBL 306P MkII Powered 6 Inch Two Way Studio Monitor Speaker brings world-class JBL performance to your studio. Its revolutionary JBL Image Control Waveguide and advanced transducers offer breathtaking detail, precise imaging, and a broad sweet spot to lift your mixing experiences to a higher standard. Whether you are a sound engineer, music producer, or an audiophile, the 306P MkII provides everything you need in a studio monitor at an incredibly accessible price point.

Harnessing patented technologies from the JBL 7 Series and M2 Master Reference Monitors, the 306P MkII is engineered to deliver unparalleled performance. Its sleek, modern design not only elevates the aesthetics of any studio but also packs in robust functionalities. The studio monitor features a refined transducer and patented Slip Stream low-frequency port, ensuring superior bass performance at all playback levels. With dual Class-D amplifiers offering 112 watts of power, the 306P MkII provides dynamic range and high-output performance to meet the rigorous demands of any studio environment. Experience the accuracy and reliability that JBL is renowned for.

Key Features

• Patented Image Control Waveguide for detailed imaging and a broad sweet spot
• Next-generation JBL transducers for optimized transient response and improved linearity
• Patented Slip Stream low-frequency port for superior bass performance
• Dual integrated Class-D amplifiers delivering 112 watts of power
• Boundary EQ settings to compensate for low frequency variants introduced by the environment
• HF Trim switch for adjusting high-frequency output according to room acoustics or personal preferences
• Flexible connectivity with balanced XLR and 1/4" TRS inputs
• JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
• Strenuous JBL 100-hour full-power test ensures years of reliability
• Sleek, modern design that enhances any studio setup

Specifications

• LF Driver Size: 165mm (6.5")
• HF Driver Size: 25mm (1")
• HF Driver Type: Soft dome
• Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
• Magnetically Shielded: Yes
• Input Sensitivity (-10dBV INPUT): 92dB / 1m
• Power Configuration: Bi-amplified
• LF Driver Power Amp: 56W, Class-D
• HF Driver Power Amp: 56W, Class-D
• Frequency Response (±3dB): 47Hz - 20kHz
• Frequency Range (-10dB): 39Hz - 24kHz
• Low Frequency Extension (-10dB): 39Hz
• Maximum Continuous SPL: 92dB
• Maximum Peak SPL: 110dB
• Maximum Peak Input Level (-10dBV / +4dBu): +6dBV / +20.3dBu
• System Distortion Criteria: less than 10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; less than 1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Horizontal x Vertical: 120° x 90°
• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• HF Trim Control: -2dB, 0dB +2dB
• Boundary EQ: LF Shelf @ 50Hz: -3dB -1.5dB, 0dB
• AC Input Voltage: 100 - 240VAC (±10%), 50 / 60Hz
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS
• Cabinet Dimensions (H x W x D): 361 x 224 x 282mm (14.2" x 8.8" x 11.1")
• Display Carton (H x W x D): 408 x 285 x 328mm (16.1" x 11.2" x 12.9")
• Shipping Carton (H x W x D): 418 x 292 x 338mm (16.5" x 11.5" x 13.3")
• Net Weight: 6.1 kg (13.42 lbs)
• Shipping Gross Weight: 7.25 kg (15.95 lbs)

Package Contents

• 1 x JBL 306P MkII Studio Monitor
• 1 x Power Cord
• 1 x User Manual
• 1 x Warranty Card
