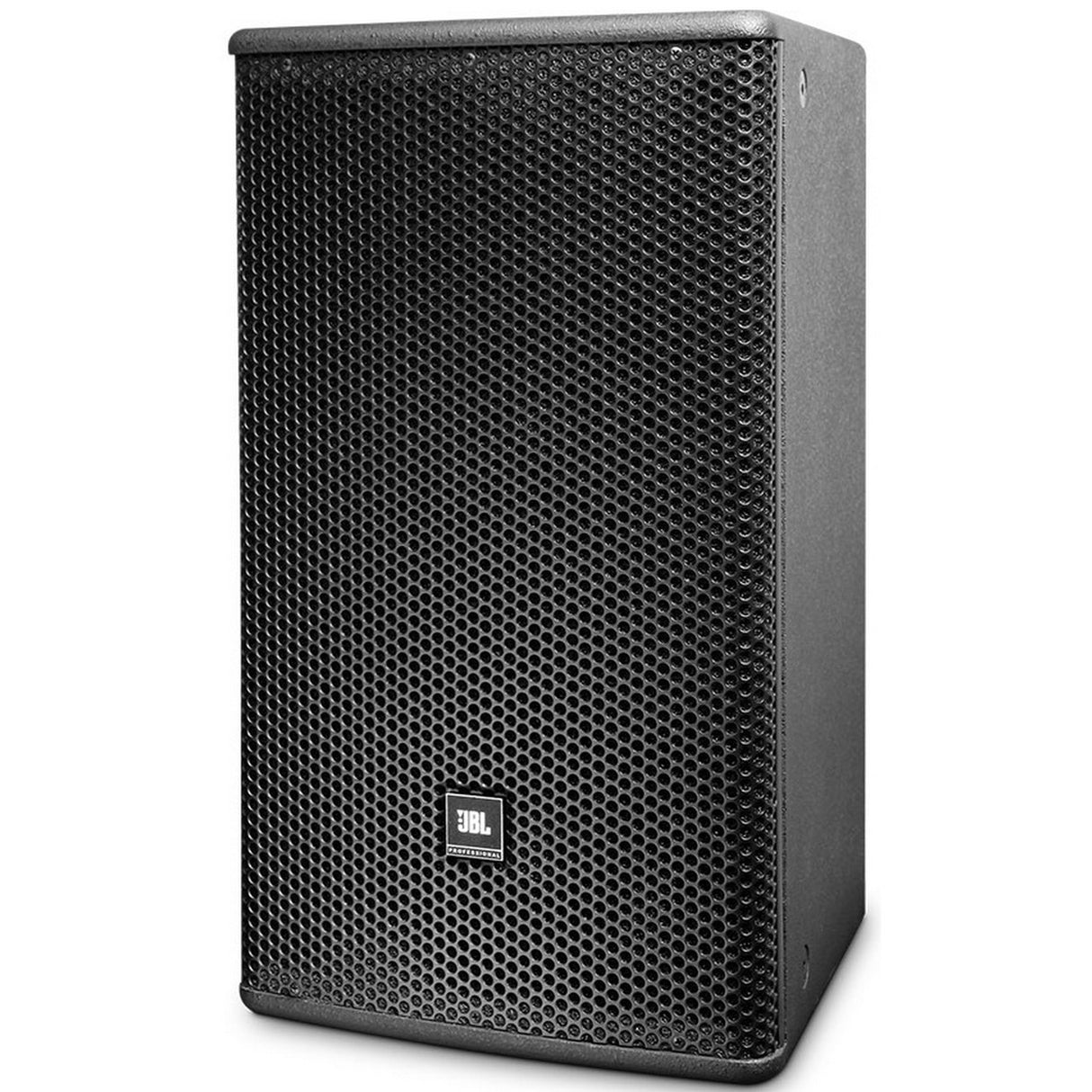

JBL AC195 Dual 10 Inch 2 Way Full Range Loudspeaker Black

JBL AC195 | Dual 10 Inch 2 Way Full Range Loudspeaker Black

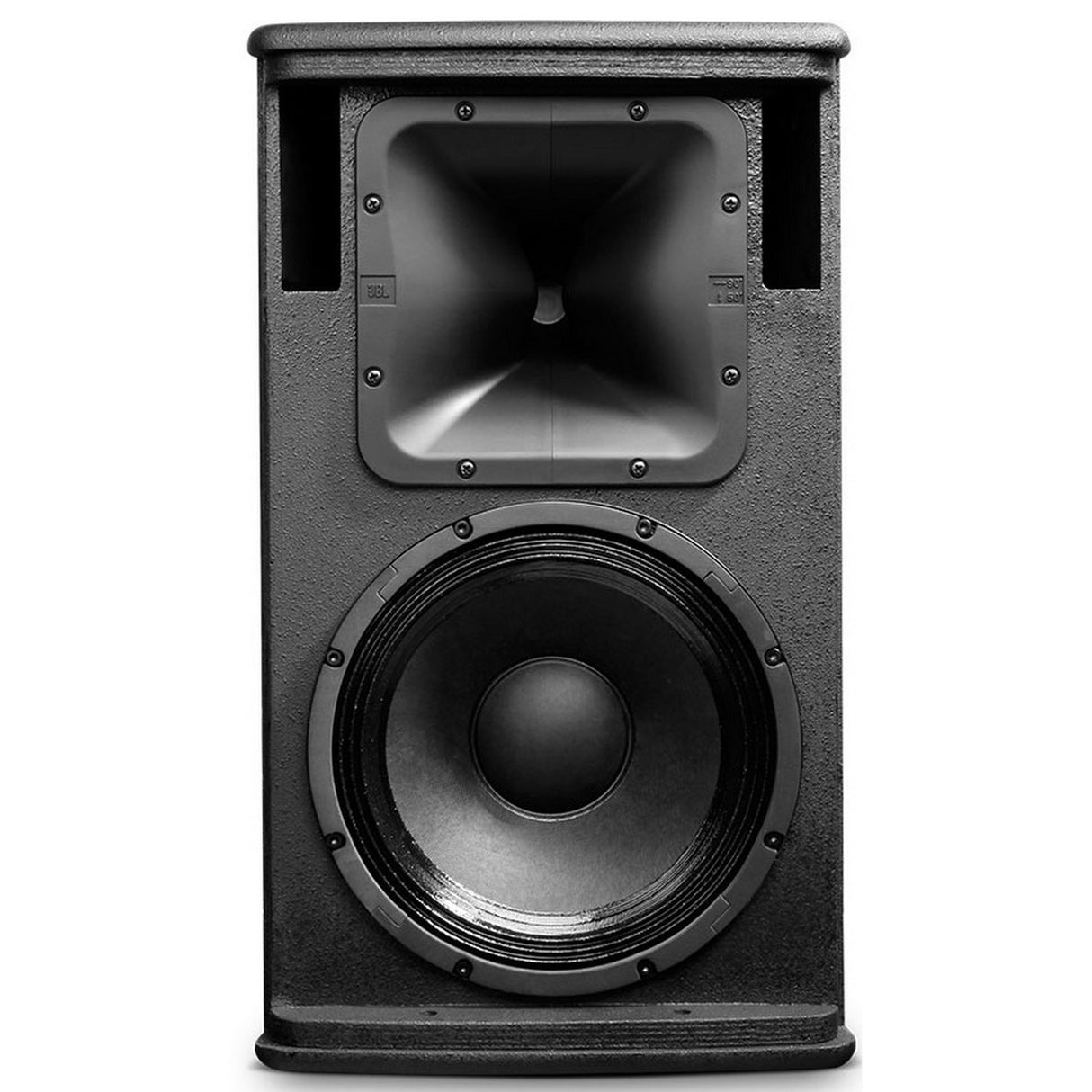

The JBL AC195 is a precision-engineered, compact 2-way full-range loudspeaker system designed for superior sound performance. Equipped with a robust 258 mm (10 in) low-frequency driver and a high-efficiency 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver, this loudspeaker ensures crystal-clear audio delivery across all frequencies. The innovative rotatable PT Progressive Transition waveguide offers a 90 by 50-degree coverage, making it versatile for various room orientations and acoustic environments. High-slope passive crossovers effectively minimize band overlap and maintain a well-controlled off-axis response, ensuring consistent sound quality.

Crafted with a compact enclosure and multiple attachment points, the JBL AC195 is easy to install in diverse setups, adding flexibility for both temporary and permanent installations. The durable 15 mm multi-ply hardwood plywood enclosure, powder-coated, perforated steel grille, and textured black paint finish ensure robustness and longevity, even in demanding environments. Additionally, the loudspeaker comes with dual Neutrik NL4 connectors and screw terminals for secure and reliable connections.

Key Features

• Color: Black
• Compact enclosure
• 258 mm (10 in) LF transducer
• 90 x 50 Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5 in) voice-coil compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility

Specifications

• Frequency Range (-10 dB): 68 Hz - 20 kHz
• Frequency Response (-3 dB): 85 Hz - 18 kHz
• System Sensitivity (1w @ 1m): 95 dB
• Nominal Impedance: 8 ohms
• Maximum SPL(1m): 118 dB (124 dB peak)
• Power Rating (Continuous/Program/Peak): 200 W/400 W/800 W
• Coverage Pattern: 90 x 50 (H x V)
• Crossover: 1.8 kHz
• Low Frequency Driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
• High Frequency Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood
• Grille: Powder-coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
• Dimensions (H x W x D): 535 mm x 310 mm x 329 mm (21.0 in x 12.2 in x 12.9 in)
• Net Weight: 13.1 kg (28.8 lbs)

Package Contents

• JBL AC195 Dual 10 Inch 2 Way Full Range Loudspeaker
• Product Manual
• Mounting Hardware
