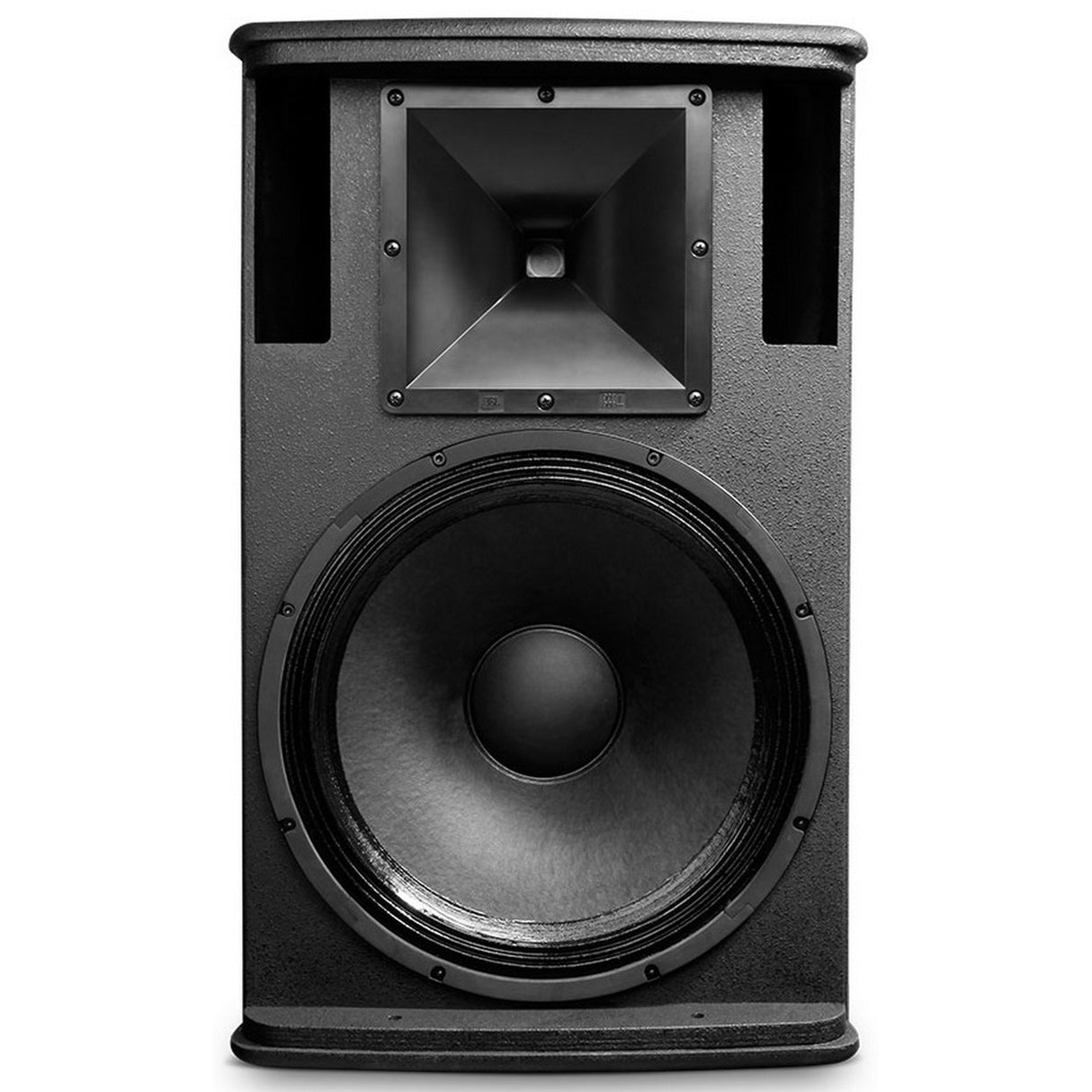

JBL AC599 15 Inch 2 Way Full Range Loudspeaker Black

JBL AC599 | 15 Inch 2 Way Full Range Loudspeaker Black

The JBL AC599 is an advanced, compact 2-way full-range loudspeaker system that delivers superior sound quality, making it an exceptional choice for a wide range of fixed installation applications. Featuring a robust 15mm enclosure with a sleek black textured finish, this loudspeaker combines durability with aesthetic appeal. It is equipped with a powerful 384 mm (15 in) low-frequency driver and a 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver, offering high-fidelity sound performance. The 90 by 90-degree waveguide ensures excellent coverage in both vertical and horizontal orientations, making it perfect for diverse environments.

Part of JBL's AE Application Engineered Series, the AC599 comes with high-slope passive crossovers that minimize band overlap and provide well-controlled off-axis response. Multiple M10 threaded suspension points and additional threaded inserts on the back of the enclosure offer flexible installation options. Whether you are looking to enhance a small venue, conference room, or any other fixed installation scenario, the JBL AC599 provides reliable and premium-quality sound that will exceed your expectations.

Key Features

• Color: Black
• Robust 15mm enclosure with black textured finish
• 384 mm (15 in) LF transducer
• 90 x 90 Waveguide with a 25 mm (1 in) exit 35mm (1.5 in) diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility

Specifications

• Frequency Range (-10 dB): 60 Hz - 20 kHz
• Frequency Response (-3 dB): 75 Hz - 18 kHz
• System Sensitivity (1w @ 1m): 98 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 122 dB (128 dB peak)
• Power Rating (Continuous/Program/Peak): 250 W/500 W/1000 W
• Coverage Pattern: 90 x 90 (H x V)
• Crossover: 1.5 kHz
• Low Frequency Driver: 1 x 15 inch woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil
• High Frequency Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood
• Grille: Powder-coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket

Package Contents

• JBL AC599 15 Inch 2 Way Full Range Loudspeaker
• Instruction Manual
• Mounting Bracket (if optional brackets were selected)
