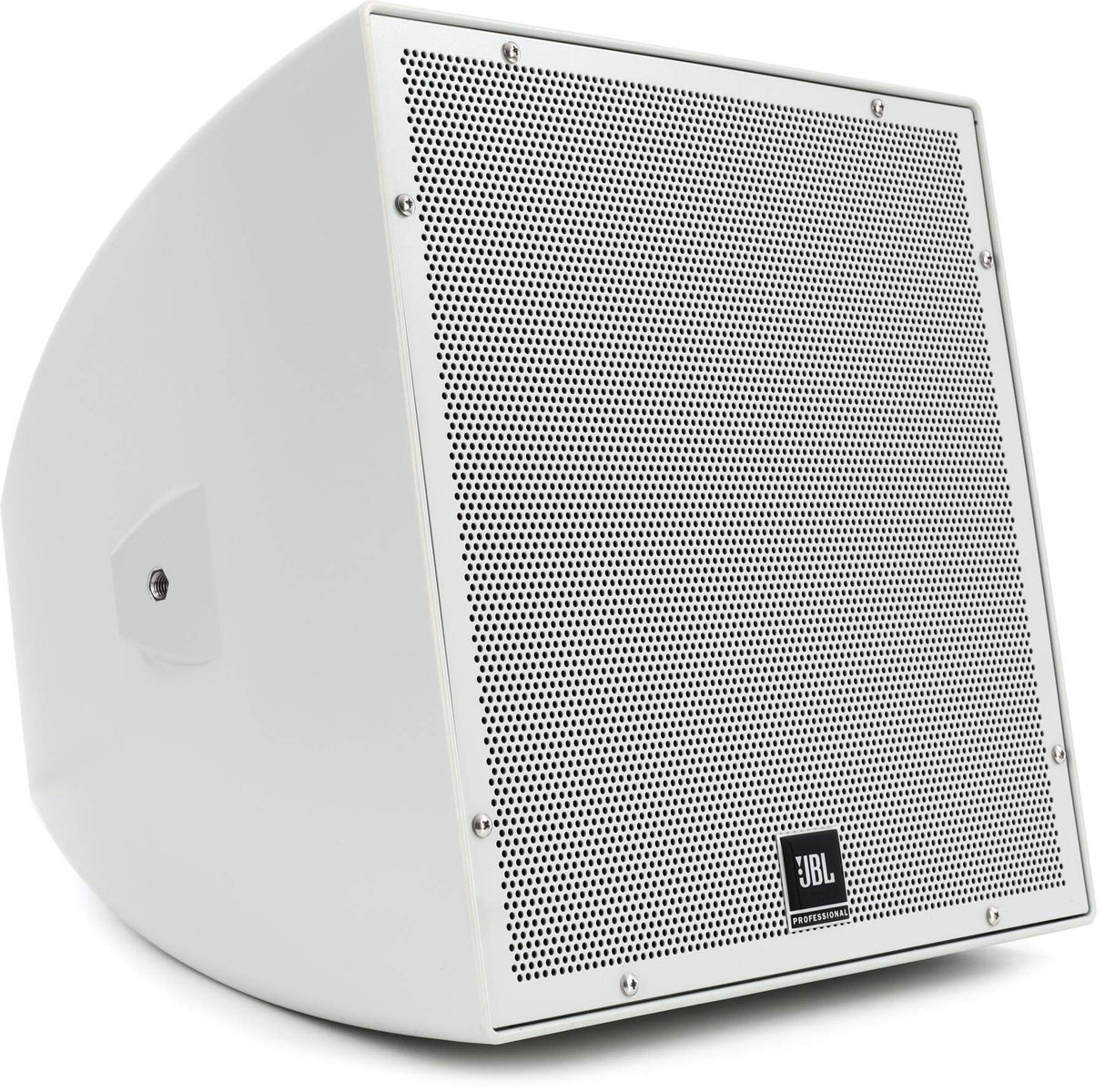

JBL AWC129 400w All Weather Compact 2 Way Coaxial Loudspeaker 12in LF WHITE

JBL AWC129 | 400w All Weather Compact 2 Way Coaxial Loudspeaker 12in LF WHITE

The JBL AWC129 is a versatile, highly weather-resistant, and compact 2-way loudspeaker system, ideal for delivering crystal-clear speech and rich, deep music in a wide variety of environments. Specifically designed to perform in even the harshest outdoor conditions, this speaker is perfect for use in sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, and swimming pools. Its robust construction ensures durability and reliability, promising consistent performance regardless of the weather.

With a power handling capacity of 400 Watts, the JBL AWC129 delivers powerful audio with remarkable clarity, thanks to its advanced high-slope crossover network and high sensitivity. The speaker's components include a 300 mm (12 in) woofer with a Kevlar-reinforced cone and a 25 mm (1 in) exit compression driver featuring a unique patented design and a high temperature polymer diaphragm. These carefully selected components provide extraordinary clarity for speech and an extended frequency response for music.

Boasting a consistent 90° x 90° broadband pattern control, the JBL AWC129 ensures excellent coverage and smooth, natural midrange that makes it suitable for a wide range of both outdoor and indoor applications. Additionally, its IP56 rating indicates a high level of weather resistance, making it an excellent choice for any environment that demands reliable and uninterrupted audio performance.

Key Features

• Highly weather-resistant with IP56 rating
• Consistent 90° x 90° broadband pattern control
• 300 mm (12 in) woofer with Kevlar-reinforced cone
• 25 mm (1 in) exit compression driver with unique patented design
• Extraordinary clarity for speech and extended frequency response for music
• Advanced high-slope crossover network for constant coverage
• 400 Watt power handling with high sensitivity
• High-power passive crossover network
• Overload protection
• 55 Hz - 20 kHz frequency response
• 200 Watt 70V/100V multi-tap (built-in transformer) direct 8 low-impedance

Specifications

• Frequency Range (-10 dB): 55 Hz - 20 kHz
• Frequency Response (±3 dB): 80 Hz - 20 kHz
• Coverage Pattern: 90° x 90°
• Directivity Factor (Q): 10.1 (1 k - 16 kHz)
• Directivity Index (DI): 9.5 dB (1k - 16 kHz)
• Long-Term System Power Rating (IEC): 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
• Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz - 20 kHz)
• Maximum SPL: Direct 8: 122 dB (peaks of 128 dB), 200 W Tap: 119 dB
• Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Nominal Impedance: 8 ohms
• Transformer Taps: 70V: 200W, 100W, 50W, 25W, 100V: 200W, 100W, 50W
• Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
• High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling
• HF Driver Protection: Minimum audibility SonicGuard HF overload protection
• Enclosure: ABS with Glass enclosure, heavily braced
• Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel
• Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing
• Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside, 4 mm inside open-lug (#6 #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms a water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
• Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs)
• Dimensions: 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut, 542 mm (21.4 in) including bracket extending to back
• Colors: White
• Net Weight: 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket

Package Contents

• JBL AWC129 Loudspeaker
• U-bracket (matches loudspeaker color: gray or black), zinc-rich extra-thick powder coated, steel
• Installation Manual
