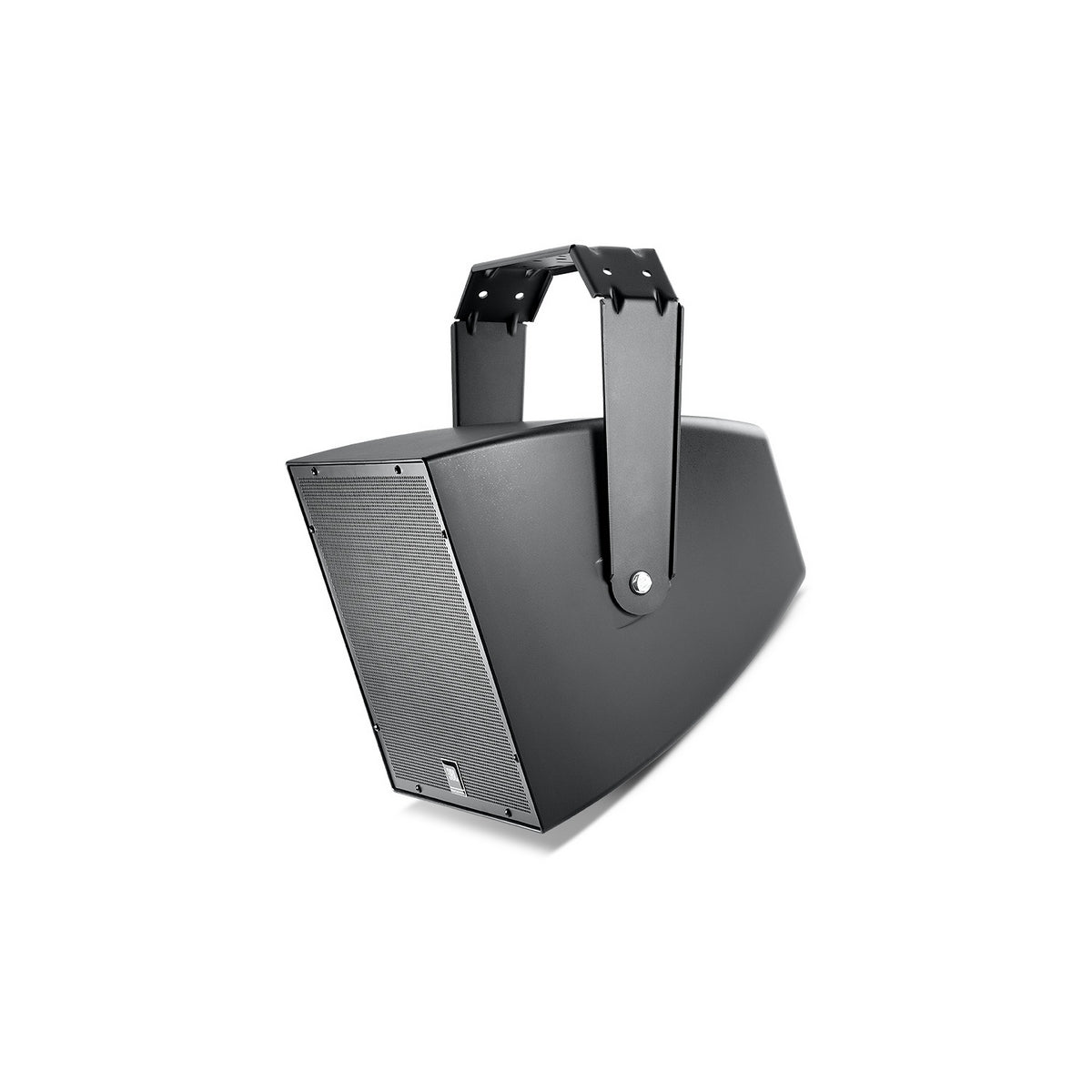

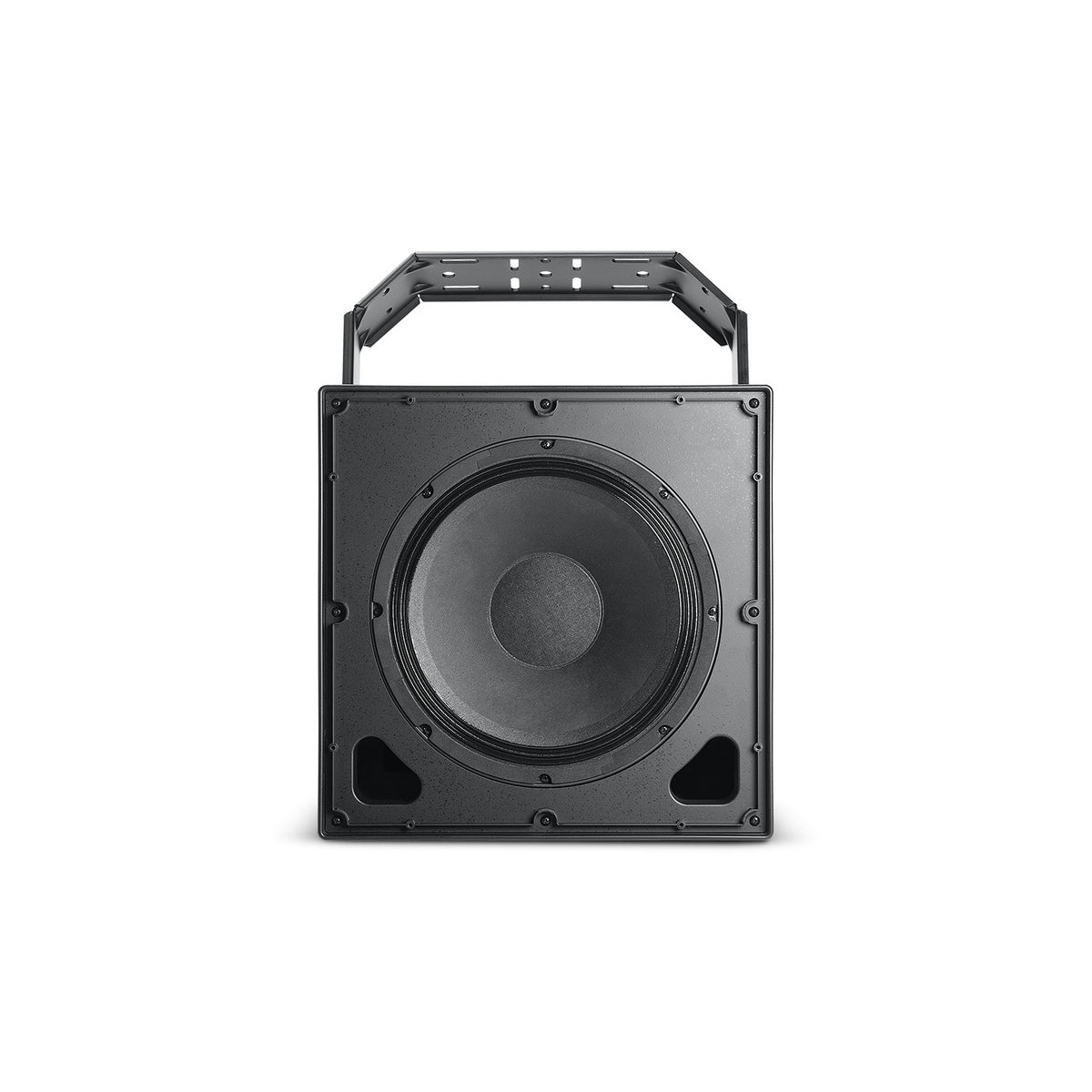

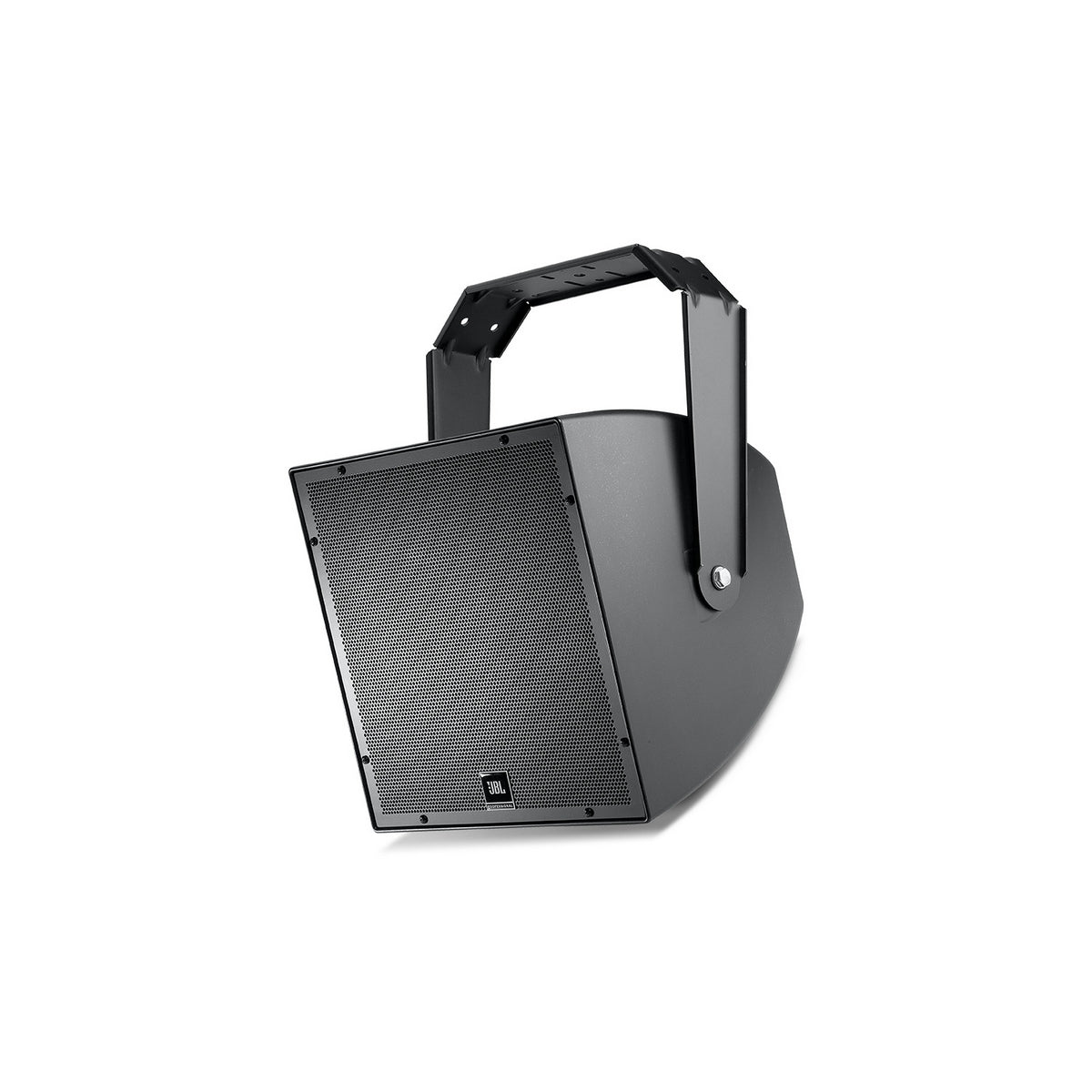

JBL AWC129-BK 400w All Weather Compact 2 Way Coaxial Loudspeaker 12in LF BLACK

JBL AWC129-BK | 400w All Weather Compact 2 Way Coaxial Loudspeaker 12in LF BLACK

The JBL AWC129-BK is a versatile and highly weather-resistant 2-way coaxial loudspeaker system designed for a wide array of outdoor and indoor applications. This robust speaker is perfect for environments that demand clarity and durability, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, swimming pools, and outdoor background music or paging systems. The AWC129-BK offers exceptional sound quality, with extraordinary clarity for speech and extended frequency response for music, ensuring an unmatched audio experience.

Engineered with advanced materials and a high-slope crossover network, the JBL AWC129-BK provides a consistent 90° x 90° broadband pattern control, delivering smooth and natural midrange sound. Its components include a 300 mm (12 in) Kevlar-reinforced cone woofer and a 25 mm (1 in) exit compression driver with a patented design and high-temperature polymer diaphragm. With a 400-watt power handling capability and high sensitivity, this loudspeaker can achieve high SPL levels, making it suitable for large and open spaces.

The AWC129-BK is built to withstand the harshest environments, boasting an IP56 weather-resistant rating and compliance with multiple military specifications for humidity, salt spray, temperature, and UV resistance. Its rugged ABS enclosure, corrosion-resistant grille, and water-tight seal terminals ensure long-lasting performance in all conditions. This loudspeaker is the ideal choice for those seeking reliable and high-quality audio solutions for demanding environments.

Key Features

• Highly weather-resistant IP56 rating
• Consistent 90° x 90° broadband pattern control
• 300 mm (12 in) woofer with Kevlar-reinforced cone
• 25 mm (1 in) exit compression driver with high-temperature polymer diaphragm
• Extraordinary clarity for speech and extended frequency response for music
• Advanced high-slope crossover network
• 400 Watt power handling with high sensitivity
• SonicGuard HF overload protection
• 55 Hz - 20 kHz frequency response
• 200 Watt 70V/100V multi-tap built-in transformer

Specifications

• Frequency Range (-10 dB): 55 Hz - 20 kHz
• Frequency Response (±3 dB): 80 Hz - 20 kHz
• Coverage Pattern: 90° x 90°
• Directivity Factor (Q): 10.1 (1 k - 16 kHz)
• Directivity Index (DI): 9.5 dB (1k - 16 kHz)
• Long-Term System Power Rating (IEC): 400 W (1600 W peak), 2 hrs. / 250 W (1000 W peak), 100 hrs
• Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz - 20 kHz)
• Maximum SPL: Direct 8: 122 dB (peaks of 128 dB) / 200 W Tap: 119 dB
• Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Nominal Impedance: 8 ohms
• Transformer Taps: 70V: 200W, 100W, 50W, 25W / 100V: 200W, 100W, 50W
• Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
• High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm
• Enclosure: ABS with glass enclosure, heavily braced
• Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing
• Input Connection: CE-compliant covered barrier strip terminals, accepting up to 9 mm outside 4 mm inside open-lug plus bare wire up to 2.5 mm2 (12 AWG) or spade lugs
• Environmental: IP56 per IEC529, exceeding Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hours)
• Dimensions: 402 x 402 x 445 mm (15.8 x 15.8 x 17.5 in), 470 mm (18.5 in) depth with gland nut, 542 mm (21.4 in) including bracket extending to back
• Colors: Black
• Net Weight: 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with U-bracket

Package Contents

• JBL AWC129-BK All Weather Compact 2 Way Coaxial Loudspeaker
• U-bracket (matching loudspeaker color, zinc-rich extra-thick powder coated steel)
