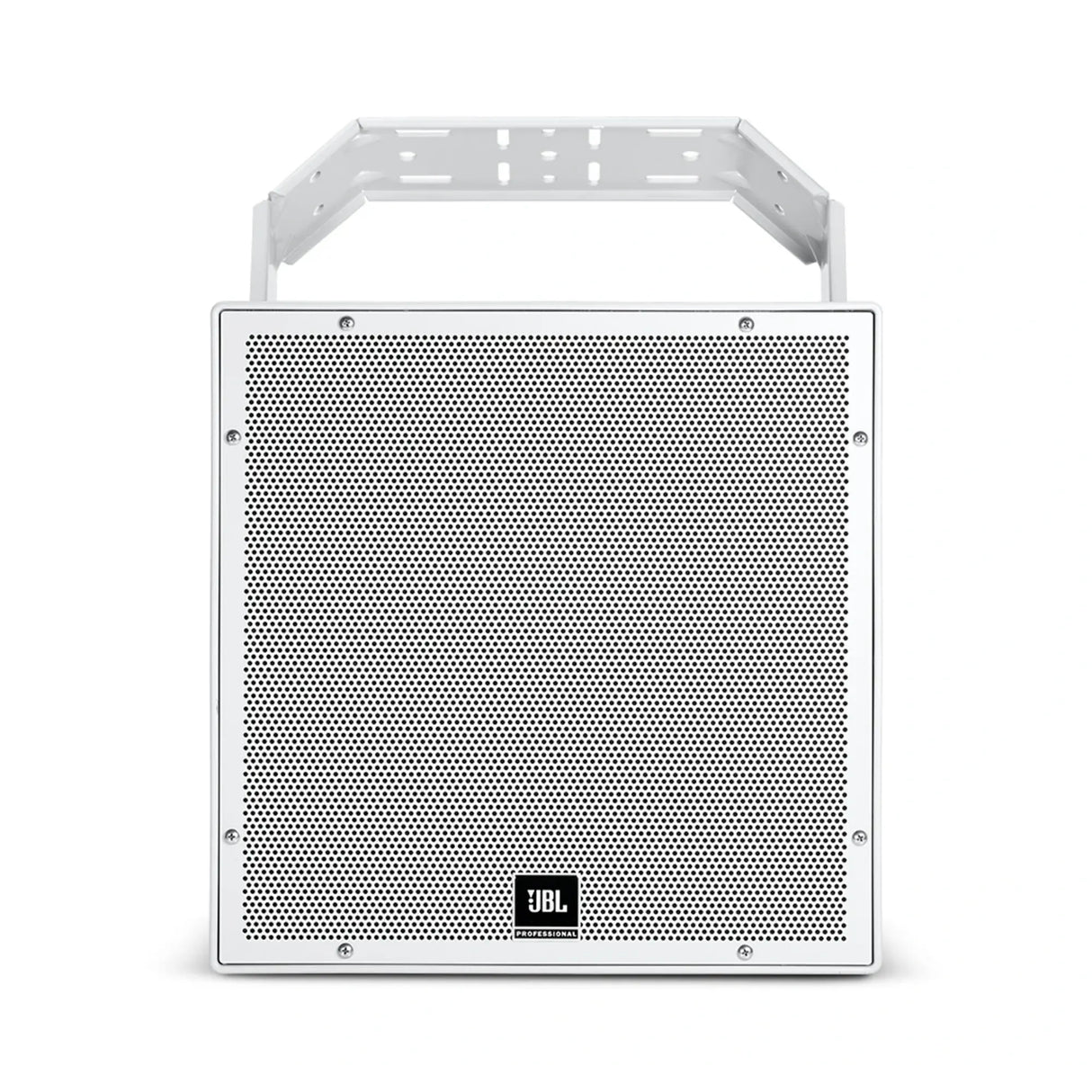

JBL AWC159 15 Inch 2 Way Coaxial Loudspeaker Gray

JBL AWC159: 15-Inch 2-Way Coaxial Loudspeaker Gray

The JBL AWC159 is the ultimate solution for high-performance audio in both outdoor and indoor environments. This compact, highly weather-resistant, full-range loudspeaker system is part of JBL's acclaimed product lineup and is designed to deliver extraordinary sound clarity. Whether you are outfitting a sports facility, racetrack, stadium, fairground, rodeo, skating rink, theme park, cruise ship, water park, outdoor music or paging system, or swimming pool, the AWC159 provides superior audio performance and durability in any setting.

The rugged design of the AWC159 ensures it can withstand the harshest conditions, boasting a weather-resistant IP56 rating. Its consistent 90 x 90 broadband pattern control and high-slope crossover network provide constant coverage and a smooth, natural midrange. This loudspeaker excels in delivering clear speech and extended frequency response for music, making it an ideal choice for a wide range of applications. With a power handling capability of 500 Watts and high sensitivity, the AWC159 ensures high SPL capability while maintaining sound quality.

Key Features

• Color: Gray
• Highly weather-resistant IP56 rating
• Consistent 90 x 90 broadband pattern control
• Extraordinary clarity for speech and extended frequency response for music
• Advanced high-slope crossover network for constant coverage and smooth midrange
• 500 Watt power handling with high sensitivity for high SPL capability
• High-power passive crossover network
• 52 Hz - 20 kHz frequency response
• 300 Watt 70V/100V multi-tap built-in transformer or direct 8 low-impedance

Specifications

• Frequency Range (-10 dB): 52 Hz - 20 kHz
• Frequency Response (-3 dB): 80 Hz - 20 kHz
• Coverage Pattern: 90 x 90
• Directivity Factor: 11.1 (1 kHz - 16 kHz)
• Directivity Index (DI): 9.7 dB (1 kHz - 16 kHz)
• Long-Term System Power Rating (IEC): 500 W (2000 W peak), 2 hrs.; 300 W (1200 W peak), 100 hrs.
• Sensitivity (2.83V @ 1m): 98 dB (Ave. 80 Hz - 20 kHz)
• Maximum SPL: Direct 8: 125 dB (peaks of 131 dB); 300 W Tap: 123 dB (peaks of 129 dB)
• Crossover Network: 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Nominal Impedance: 8 ohms
• Transformer Taps: 70V: 300W, 150W, 75W, 38W; 100V: 300W, 150W, 75W
• Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
• High Frequency Driver: 2408H-2, 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled
• Enclosure: ABS with Glass, heavily braced
• Attachment: Two M10 points for included U-bracket. M6 secondary safety attachment point on back panel
• Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel, 3-layer assembly with foam and woven poly mesh backing
• Input Connection: CE-compliant covered barrier strip terminals. Accepts up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm² (12 AWG) or spade lugs. Terminal compartment cover with gland nut for water-tight seal
• Environmental: IP56 per IEC529, with a minimum 5-degree downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs)
• Dimensions: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet; 507 mm (19.9 in) depth with gland nut; 546 mm (21.5 in) including bracket extending to back

Package Contents

• JBL AWC159 Loudspeaker
• U-bracket (color matched to loudspeaker)

Experience unparalleled audio performance with the JBL AWC159. Enhance your venue's sound quality with a speaker system that combines reliability, clarity, and power.
