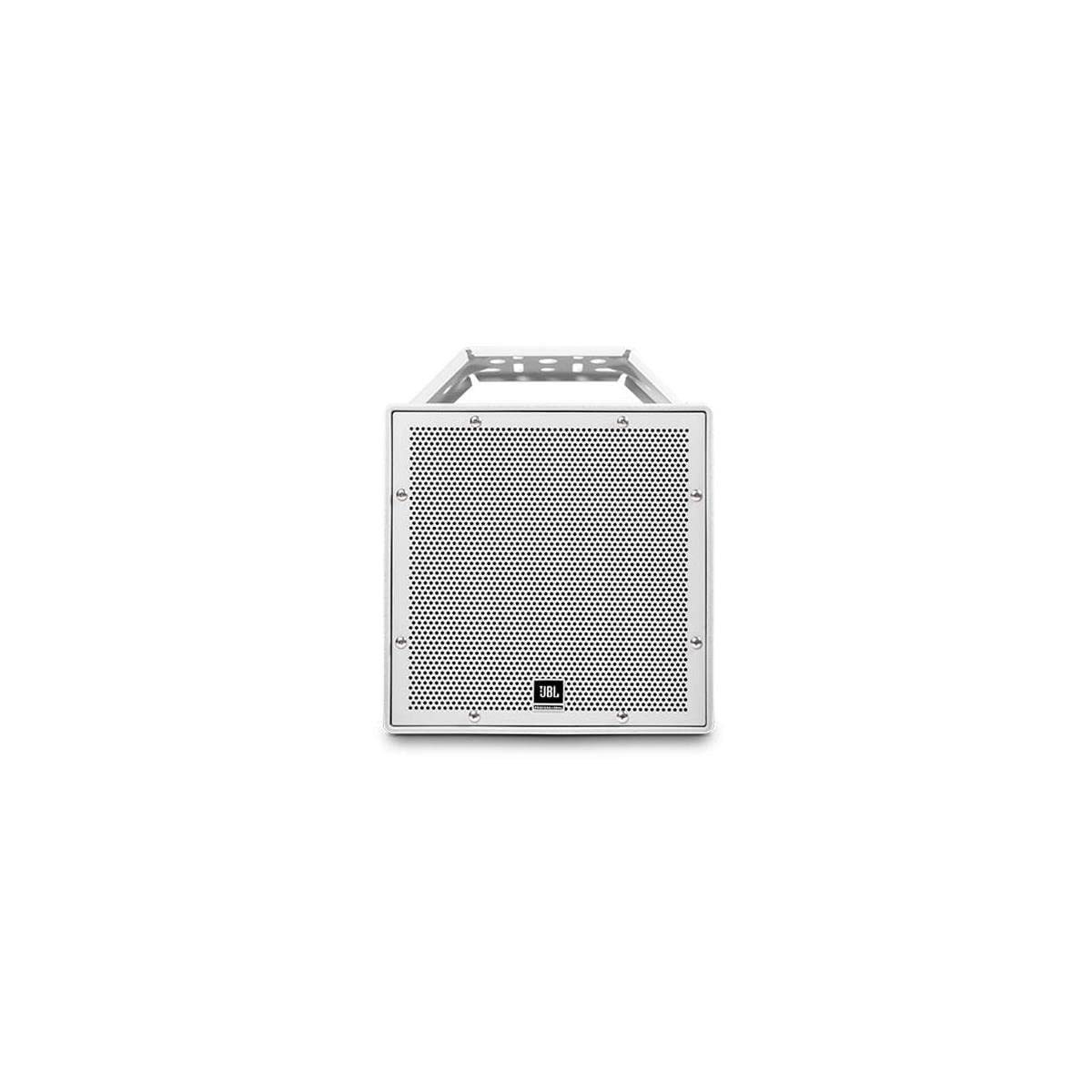

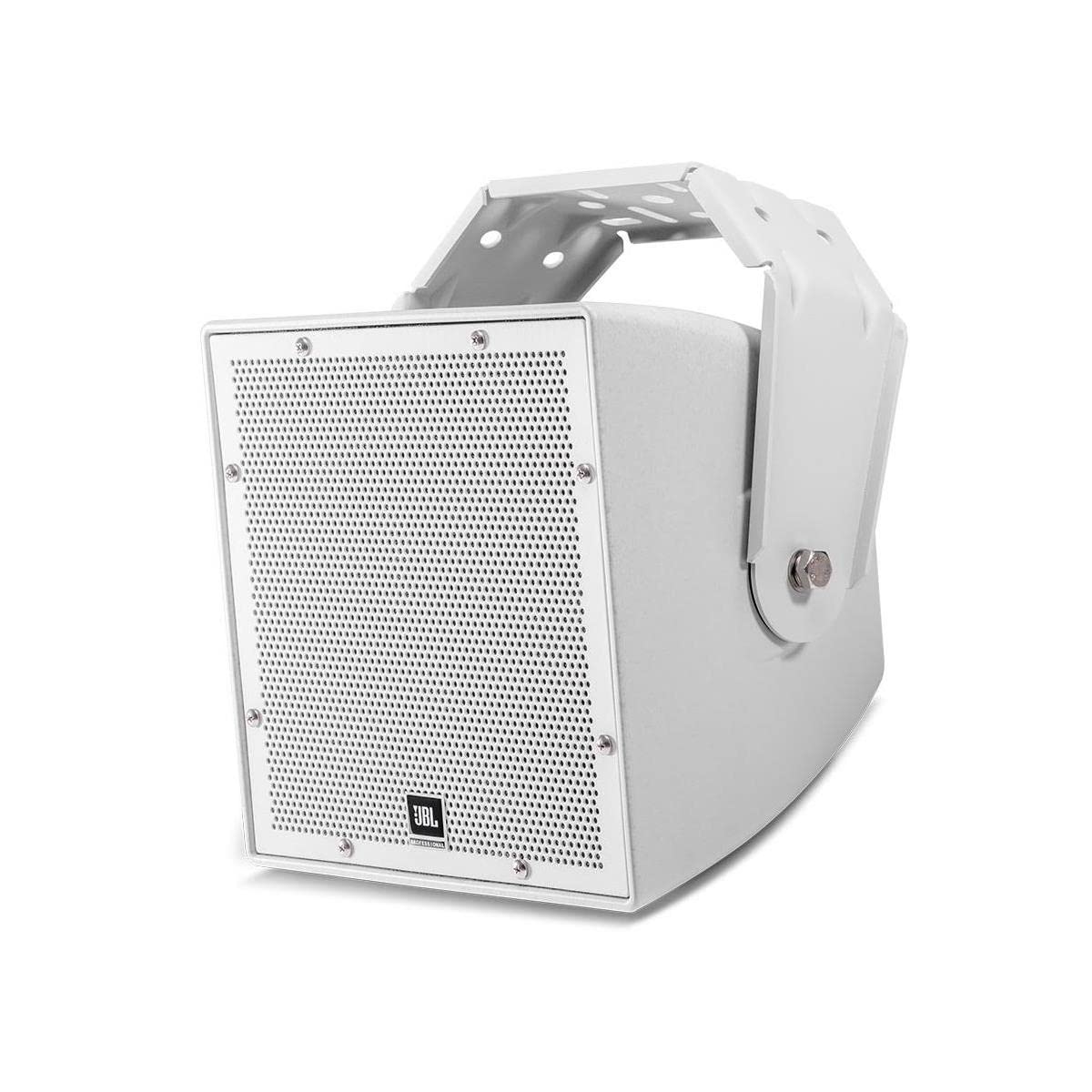

JBL AWC62 Compact 2 Way Coaxial Loudspeaker White Single Unit

JBL AWC62 | Compact 2 Way Coaxial Loudspeaker White Single Unit

The JBL AWC62 is designed to deliver exceptional audio performance in any environment. This compact, two-way coaxial loudspeaker features a highly weather-resistant design, making it perfect for both indoor and outdoor applications. Whether you need clear speech projection for a stadium or high-quality music for a themed entertainment venue, this loudspeaker is equipped to handle it all. Its robust build features a Kevlar-reinforced cone and a corrosion-resistant grille, ensuring durability even in the harshest conditions. The advanced crossover network offers constant coverage and a smooth, natural midrange, providing the ultimate balance between speech clarity and musical response.

This versatile loudspeaker is designed with a broad range of applications in mind, including sports facilities, racetracks, cruise ships, and water parks. The IP56 rating underscores its ability to withstand the elements, from UV exposure to salt spray, ensuring long-lasting performance. With a 70 Hz - 18 kHz frequency response and 175 watts of power handling, the JBL AWC62 can deliver high SPLs, making it suitable for both background music and powerful paging systems. The included U-bracket allows for versatile mounting, ensuring you can position the loudspeaker exactly where you need it.

Key Features

• Highly weather-resistant IP56 rating
• Consistent 110 degrees x 110 degrees broadband pattern control
• 165 mm (6.5 in) woofer with Kevlar-reinforced cone
• 25 mm (1 in) exit compression driver
• Extraordinary clarity for speech and extended frequency response for music
• Advanced high-slope crossover network for constant coverage
• 175 Watt power handling with high sensitivity
• High-power passive crossover network
• Overload protection
• 70 Hz - 18 kHz frequency response
• 120 Watt 70V/100V multi-tap or direct 8 OHM low-impedance

Specifications

• Frequency Range: 70 Hz - 18 kHz
• Frequency Response: 100 Hz - 16 kHz
• Coverage Pattern: 110 degrees x 110 degrees
• Directivity Factor: 7.2 (1 k - 16 kHz)
• Directivity Index (DI): 7.9 dB (1 k - 16 kHz)
• Long-Term System Power Rating: 175 W (2 hrs.), 120 W (100 hrs.)
• Sensitivity: 92 dB (2.83V @ 1m)
• Maximum SPL Direct: 8 OHM: 114 dB (peaks of 120 dB)
• 120 W Tap: 112 dB
• Crossover Network: 1.8 kHz, 3rd order high-pass plus conjugate to HF, 3rd order low-pass to LF
• Nominal Impedance: 8 ohms
• Transformer Taps: 70V: 120W, 60W, 30W, 15W; 100V: 120W, 60W, 30W
• High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter
• HF Driver Protection: Minimum audibility SonicGuard HF overload protection
• Enclosure: ABS with glass enclosure
• Attachment: Two M10 points for included U-bracket; M6 secondary safety attachment point
• Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille
• Input Connection: CE-compliant covered barrier strip terminals
• Environmental: IP56 per IEC529; exceeds Mil Spec 810 and ASTM G85
• Dimensions: 259 x 259 x 255 mm (cabinet); 288 mm including gland nut; 309 mm including bracket extending to back
• Colors: Available in gray and black
• Net Weight: 6.8 kg; 7.7 kg with U-bracket
• Shipping Weight: 8.8 kg

Package Contents

• JBL AWC62 Loudspeaker
• U-bracket (matches loudspeaker color, zinc-rich extra thick powder coated, steel)
