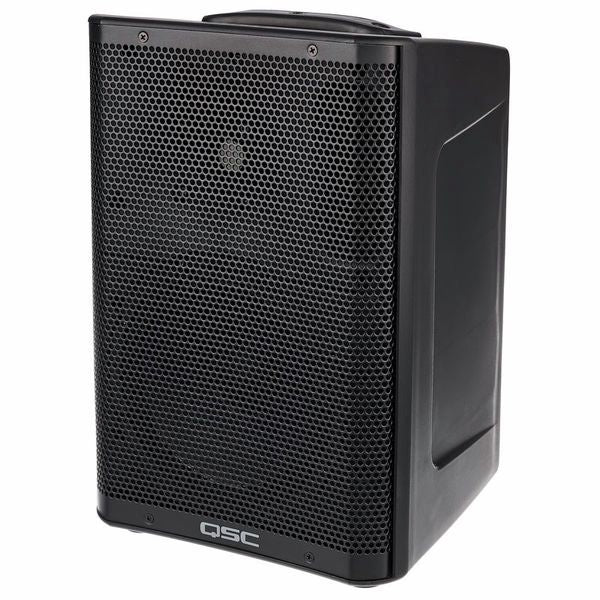

QSC CP8 8-Inch Compact Active Loudspeaker

QSC CP8 8-Inch Compact Active Loudspeaker

The QSC CP8 8-Inch Compact Active Loudspeaker is a testament to the exceptional performance, robust quality, and enduring reliability that the QSC brand is renowned for. This powerful loudspeaker is designed to deliver superior audio experiences and unforgettable performances, making it a top choice for professionals around the world. The CP Series continues QSC's legacy of excellence, offering an ultra-compact form factor combined with unrivaled value, making it a versatile and dynamic addition to any audio setup.

With its advanced DSP technology, the QSC CP8 ensures superior sound quality and optimal speaker protection. The compact and lightweight design makes it highly portable, perfect for use as a main PA system, stage monitor, or instrument amplifier. The professional appearance of the CP8 blends seamlessly into any application, from live performances to DJ events. The 1000-watt peak power Class-D amplifier, combined with selectable contour settings for various applications, ensures that this loudspeaker can meet the demands of any audio environment.

In addition to its powerful performance and portability, the QSC CP8 offers features such as Directivity Matched Transition (DMT) for consistent frequency response across the coverage area and a 35 mm pole socket for easy mounting. Optional accessories like a yoke, tote, and outdoor cover further enhance the functionality and usability of the loudspeaker. Whether you're a musician, DJ, or audio professional, the QSC CP8 is designed to deliver an unparalleled audio experience.

Key Features

• Compact and powerful performance
• 1000 Watt peak power Class-D amplifier module
• Easily selected contours for commonly-used applications
• Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection
• Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
• Light weight and highly portable
• Professional appearance looks great in any application
• Use for main PA, stage monitor, or instrument amplifier
• 35 mm pole socket
• Optional yoke, tote, and outdoor cover accessories
• Complete EASE and CAD information available online
• 6-Year Warranty

Specifications

• Configuration: Two-way active loudspeaker
• LF Transducer: 203 mm (8 in) cone
• HF Transducer: 35.6 mm (1.4 in) compression driver
• Frequency Response (-6 dB): 56 - 20 kHz
• Frequency Range (-10 dB): 53 - 20 kHz
• Nominal Coverage Angle: 90 Axisymetric
• Maximum Rated SPL: 124 dB
• Amplifier: Class D (Peak: 800 W (LF), 200 W (HF))
• Controls: Power, 2 x Gain, Mic Boost Push Switch, 6-way Contour Selection Switch
• Indicators: Power LED, 2 Input Signal LED, Input B MIC selected LED, Limiter active LED
• Connectors: 2 locking XLR/F 1/4” combo (Line Input and Mic/Line input), 1 - 3.5 mm TRS (Stereo Input), 1 XLR/M (Mix Output), 1 IEC power connector
• AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A
• Enclosure Material: Polypropylene
• Attachment Points: M8 threaded insert
• Color: Black (RAL 9011)
• Grille: 18 Gauge powder-coated steel
• Speaker Dimensions (HWD): 411 - 273 - 256 mm / 16.2 - 10.7 - 10.1 in
• Carton Dimensions (HWD): 360 - 360 - 496 mm / 14.2 - 14.2 - 19.5 in
• Net Weight: 9.5 kg / 21.0 lb
• Shipping Weight: 11.5 kg / 25.4 lb
• Regulatory: EMC, UL, CB
• Optional Accessories: CP8 Tote, CP8 Outdoor Cover, CP8 Yoke

Package Contents

• QSC CP8 8-Inch Compact Active Loudspeaker
• Power Cable
• User Manual
