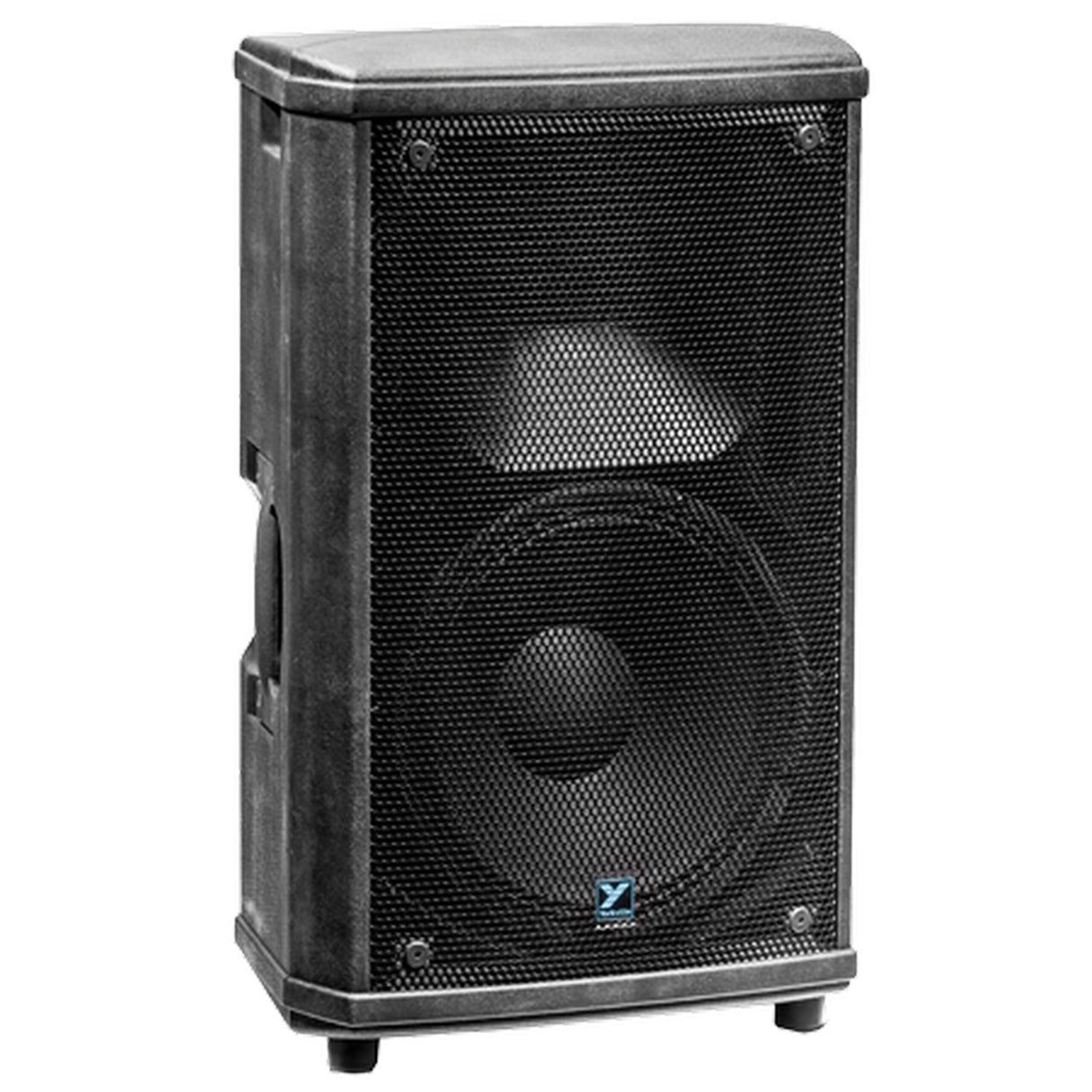

Yorkville NX55P-2 1000-Watts 12-Inch Powered Loudspeaker
Yorkville NX55P-2 1000-Watts 12-Inch Powered Loudspeaker
Yorkville NX55P-2 1000-Watts 12-Inch Powered Loudspeaker
One of Yorkville's best selling fully featured active loudspeakers has been redesigned. The 2nd Generation NX55P-2 features a new power amplifier design that delivers an earth shattering 1000 Watts Program (2000 Watts Peak) making it our best sending, most versatile cabinet in the NX Series.
Key Features
- Integrated 2000 Watt Amplifier Peak (1000 Watts Program)
- Max SPL 134dB Peak (128dB Continuous)
- Dual purpose full range and wedge monitor format enclosure
- Lightweight, high efficiency, high tech bi-amped power module
- +/- 6dB input trim control for individual cabinet level adjustment
- XLR and TRS inputs / outputs for easy connection and looping
- Multi-input source mixer for direct inputs
- Direct microphone input with level control
- Two-way overall EQ controls
- High quality 1-inch High Frequency driver
- Next generation 12-inch high power woofer
- Integrated flying hardware
- Recessed Mixer panel
- Made in Canada
Technical Specifications
System Type
2-Way
Active or Passive
Active
Program Power (Watts)
1000 Watts (2000 Watts Peak)
Biampable
Self Powered
Biamp Operation Only
Yes
Max SPL (dB)
134dB Peak (128dB Continuous)
Frequency Response (Hz +/- 3dB)
45 - 18k
Crossover Frequency (Hz)
2k
Driver Configuration
12-inch / 1-inch
HF Driver(s)
1.4-inch Aluminum Diaphragm w/ 1-inch exit
HF Dispersion (deg. H x deg. V)
80 x 50
HF Protection
Thermal / Peak Limiter
LF Driver(s)
12-inch w/ 3-inch voicecoil
LF Protection
Thermal / Overcurrent
HF Amplifier Type
Two Tier Class H
LF Amplifier Type
Class D
Power Cable
Yes
Power Switch
Yes
Power Consumption (typ/max)
60Hz 2.0A / 50Hz 1,0A
Inputs - 1/4" Jacks
2 (line input) 2 (link in/out)
Inputs - XLR
1 (mic) 2 (line in/out)
Input Sensitivity (Vrms Sine)
+4dBv / 1.23V
Mixer Controls
Mixer on/off switch
Mic Input Gain
Line Input Gain
Treble/Bass Tweak
Level Controls
+/- 6dB Main Volume
EQ Controls
100Hz HP Filter (LF Rolloff)
Limiter
Yes
LED Indicators
Power/Clip/Limit
Feet
Yes
Bar Handles
1 (Side)
Flying Hardware
1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware
NXF Flyware
Pole Mount Adapter (1 3/8"-3.5cm)
Yes
Enclosure Materials
Molded Polypropylene
Grille
Perforated Metal
Covering / Finish
Black
Dimensions (DWH xbackW, inches)
12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm)
31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg)
41 / 18.6
