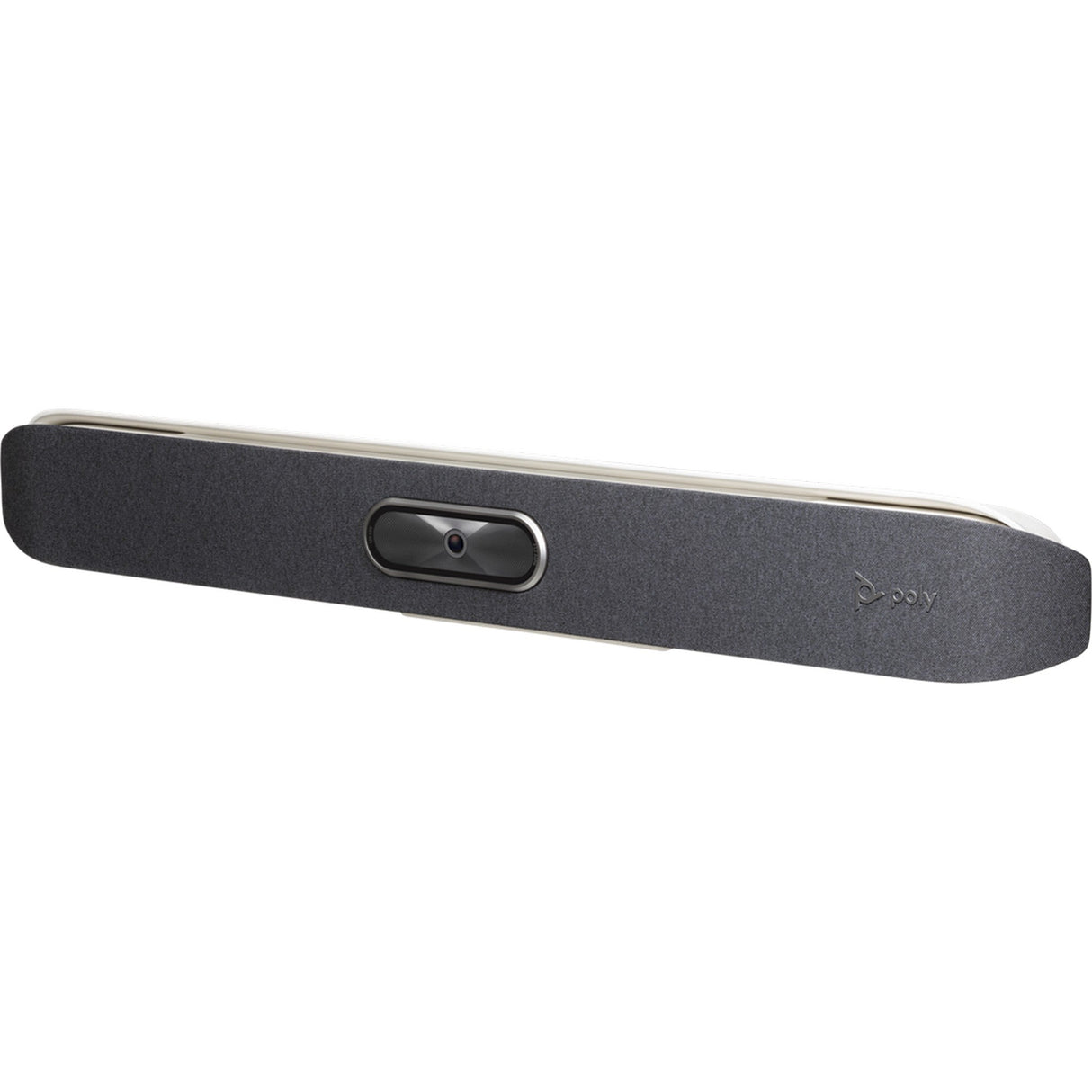

Poly Studio X50 All-In-One 4K Video Conference Collaboration System

Poly Studio X50 All-In-One 4K Video Conference Collaboration System

The Poly Studio X50 is an all-in-one video collaboration system designed for medium-sized conference rooms with up to 10 participants. It features boardroom-quality 4K UltraHD video and crystal-clear audio enhanced by Poly DirectorAI smart camera technology, automatically framing speakers and groups for optimal meeting engagement. This system integrates with major cloud video platforms like Zoom and Microsoft Teams without needing a PC, offering a seamless collaboration experience through wireless and wired content sharing.

Equipped with NoiseBlockAI and Acoustic Fence technology, the Poly Studio X50 eliminates distracting background noise and side conversations, while its beamforming microphone array ensures every voice is captured clearly. The system's flexible connectivity includes dual HDMI outputs, USB 3.0 and USB-C ports, WiFi, Bluetooth 5.0, and Ethernet, making it easy to integrate into any conference room setup. Its enhanced security features protect meetings through AES encryption, multi-layer authentication, and active directory support.

Key Features

• 4K UltraHD Camera: 3840 x 2160 resolution with 5x digital zoom and a wide 120° field of view for lifelike images.
• Poly DirectorAI Smart Camera: Automatic speaker framing, group framing, presenter tracking, and perimeter control.
• NoiseBlockAI & Acoustic Fence: Advanced noise cancellation technology for clear audio by removing unwanted background sounds.
• Wireless & Wired Content Sharing: Includes Poly content app, Apple AirPlay, Miracast, HDMI input, and whiteboarding capabilities.
• Multiple Connectivity Options: USB-C, USB-A 3.0, dual HDMI, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO), and Gigabit Ethernet.
• Robust Security: AES 128/256-bit encryption, H.235.6 support, authenticated access, and active directory integration.
• Easy Setup and Flexible Mounting: Wall mount kit included; supports VESA mounts and Poly TC8 touch controller.
• Energy Efficient: Auto sensing power supply with typical 37 VA consumption and low thermal output.

Technical Specifications

Video Standards and Protocols

• Supported Standards: H.264 AVC, H.264 High Profile, H.265

Video Input and Output

• Input: 1x HDMI
• Output: 2x HDMI (touch display compatible)

People Video Resolution

• Resolutions:
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps

Content Video Resolution

• Input Resolutions:
• UHD (3840 x 2160)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600)
• Output Resolutions:
• UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• Content Frame Rate: 5-60 fps (up to 4K resolution at 15 fps in call)

Content Sharing

• Supported Methods: Poly content app, Apple Airplay, Miracast, HDMI input, Whiteboarding

Camera

• Features: 5x digital zoom, 120° field of view, UHD 2160p (4K) capture resolution, automatic people framing

Audio Input

• Microphones: 3x MEMS microphones plus 2x second-order microphones
• Additional Inputs: 1x HDMI, 1x 3.5 mm line-in*

Audio Output

• Speakers and Output: Stereo speakers, 1x 3.5 mm line-out*

Other Interfaces

• Connectivity: 2x USB-A (3.0), 1x USB-C, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO)

Audio Standards and Protocols

• Supported protocols:
  22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719;
  14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C;
  7 kHz bandwidth with G.722, G.722.1;
  3.4 kHz bandwidth with G.711, G.728, G.729A

Network

• Capabilities:
  IPv4, IPv6, 1x 10/100/1G Ethernet, Auto-MDIX, H.323 and/or SIP up to 6 Mbps running Poly Video App, Polycom Lost Packet Recovery (LPR) technology, Dynamic bandwidth allocation, Reconfigurable MTU size, Web proxy support (Basic, Digest, NTLM), Simple Certificate Enrollment Protocol (SCEP)

Security

• Encryption: AES-128, AES-256, H.235.6 support
• Access Control: Authenticated admin access, local password policies, security profiles, login port lockout, secure defaults, remote logging with TLS, active directory authentication

Options

• Available: VESA mount kit, Stand, Poly TC8 touch controller

Electrical

• Power: Auto sensing power supply, 37 VA typical at 120 V / 230 V, 50/60 Hz
• Heat Output: Typical 65 BTU/h

Environmental Specifications

• Operating Temperature: 0 to 40 °C
• Operating Humidity: 15 to 80% non-condensing
• Non-operating Temperature: -40 to 70 °C
• Non-operating Humidity: 5 to 95% non-condensing
• Maximum Altitude: 16,000 ft

Physical Characteristics

• Dimensions: 762 mm W x 102 mm H x 102 mm D (30 in x 4 in x 4 in)
• Weight: 2.54 kg (5.6 lbs)

Warranty

• Term: One-year return to factory parts and labor

Package Contents

• Poly Studio X50 video bar
• Ethernet cable
• Wall mount kit
• AC power adapter
• Privacy cover
• Cable bundle
